EPC-PPC-A72-70-C

User Manual

Release 1.0

Hardware Features

Key Features:
CPU Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz)
RAM 4GB DDR3
eMMC 16GB
Storage TF card supports up to 32GB SDHC
Display 7 Inch LCD, 1024*600 Pixel Resolution; Brightness: 500nit
Touch Five-Point Capacitive Touch
USB 1 x USB 2.0 Host, 1 x USB 3.0 Host, 1 x Type-C
LAN 1 Channel 1000M LAN
Audio 3.5mm Audio In/Out Connector, 2W Speaker Internal
Buzzer 1
RTC Yes
RS232+RS485 Default 4 x RS232 and 2 x RS485 (1 debug port)
GPIO 8 Channels
WiFi/BT On-Board WIFI/BT
HDMI 1 Channel
4G/LTE Optional
Power Input 12~36V DC
Current @ 15V 800 mA max
Power Consumption 8W Typical
Working Temperature -20°C to +70°C
OS Android 7.1
Dimension CS10600R070P: 205.5*135.5*27.5mm

CS10600R070E: 190*107*27.7mm

Weight CS10600R070P: 580g

CS10600R070E: 345g

CS10600R070E-C111

Figure 1: Front View

Figure 2: Back View

CS10600R070P-C111

Figure 3: Front View

Figure 4: Back View

Power Input Connector

The product CS10600R070E/ CS10600R070P uses a wide-range power input DC 12~36V. The total power consumption is normally about 8W. The power input connector is a 3 pin 3.81mm screw terminal connector, as shown in Figure 5.

A detailed description of the power input connector pins is provided in Table 1

Figure 5: Power Input Connector

Table 1

Power Input Pin Definition:
Pin Number Definition Description
Pin 1 Positive Input Connect to DC Power Positive Terminal
Pin 2 Negative Input Connect to DC Power Negative Terminal
Pin 3 Ground Connect to Power System Ground

ATTENTION:

The system ground “GND” has been connected to power negative “-” on board.

Capacitive Touch

The product CS10600R070P/ CS10600R070E uses a five-point capacitive touch screen.

RS485+RS232 Connector

The RS485+RS232 connector is a 16 Pin 3.81mm Screw Terminal Connector, as Figure 6 shows. As for the definition of every pin, please refer to Table 2. This product has 7 channels of UART in total that can be configured as RS232 or RS485 freely. If you need any other setting different from the default one, please contact us.

Figure 6: RS485+RS232 Connector

Table 2

RS232 / RS485 / CAN Pin Definition:
Pin Number Definition Description
Pin 1 +5V System +5V Power Output, No more than 1A Current output.
Pin 2 GND System Ground
Pin 3 CPU_RS232_2_TXD CPU UART2, CPU RS232 TXD signal
Pin 4 CPU_RS232_2_RXD CPU UART2, CPU RS232 RXD signal
Pin 5 CPU_RS232_4_TXD CPU UART4, CPU RS232 TXD signal
Pin 6 CPU_RS232_4_RXD CPU UART4, CPU RS232 RXD signal
Pin 7 RS232_0_TXD USB UART0, RS232 TXD signal
Pin 8 RS232_0_RXD USB UART0, RS232 RXD signal
Pin 9 RS232_1_TXD USB UART1, RS232 TXD signal
Pin 10 RS232_1_RXD USB UART1, RS232 RXD signal
Pin 11 RS485_2+ USB UART2, CPU RS485 A signal
Pin 12 RS485_2- USB UART2, CPU RS485 B signal
Pin 13 RS485_3+ USB UART3, CPU RS485 A signal
Pin 14 RS485_3- USB UART3, CPU RS485 B signal
Pin 15
Pin 16

USB Connector

The product CS10600R070P/ CS10600R070E has 1 * USB 2.0 and 1 * USB3.0 connectors as Figure 7 shows. These USB can provide 500mA current each.

Figure 7: USB HOST Connector

USB Type-C

As well as one USB Type-C connector, as shown in Figure 8.

Figure 8: USB Type-C Connector

LAN Connector

The product CS10600R070P/ CS10600R070E has one channel 1000Mbit Ethernet Connector, as Figure 9 shows.

Figure 9: LAN Connector

TF Card

The product CS10600R070P/ CS10600R070E has one TF (uSD) card connector, as Figure 10 shows, that supports a TF (uSD) card of up to 32GB.

Figure 10: TF Card Connector

ATTENTION:

A TF card does not come with the product.

Audio Connector

The product CS10600R070P/ CS10600R070E has one Audio Input (“Line-in”) and one Audio (“Line-out”) output, as Figure 11 shows. It also has an internal 2W speaker.

Figure 11: Audio Connector

WiFi+BT

The product has one WiFi+BT module, based on the Realtech RTL8723, which integrates WiFi and BT. There is a connector on the backside of the case that is used to connect an external WiFi and BT antenna, as shown in Figure 12.

Figure 12: WiFi+BT Antenna

HDMI Connector

The product CS10600R070P/ CS10600R070E has one HDMI connector as Figure 13 shows. The HDMI output resolution can be configured by software.

Figure 13: HDMI Connector

Power Button

Figure 14 shows the product’s power button.

Figure 14: Power On Button

Expansion Connector

There is one Expansion Connector (closed by default), as Figure 15 shows. As for the definition of every Pin, please refer to Table 3.

Figure 15: GPIO Connector

Table 3

GPIO Connector Definition
Pin Number Definition
Pin 1 IN4
Pin 2 IN3
Pin 3 IN2
Pin 4 IN1
Pin 5 OUT4
Pin 6 OUT3
Pin 7 OUT2
Pin 8 OUT1
Pin 9 GND_ISO
Pin 10 VCC_ISO

ATTENTION:
This GPIO Connector is optional. If you need it, please contact us. All GPIO signals are isolated, and the VCC_ISO supports a 5V~24V input.

Dimensions and Mounting

The dimensions of CS10600R070P are 205.5*135.5*27.5mm, as Figure 16 shows.

The dimensions of CS10600R070E are 190*107*27.7mm, as Figure 17 shows.

Mounting Method

The CS10600R070P can be mounted by screw holes (Vesa mount) and mounting set (Panel mounting). The CS10600R070E can be mounted by Embedded mounting. Please make sure the display is not exposed to high pressure when mounting into an enclosure.

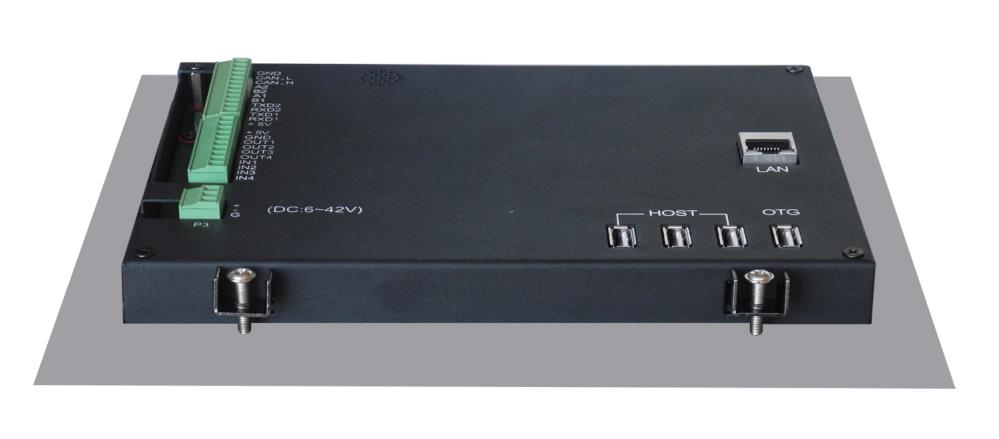

Figure 18: Panel Mounting Method

Figure 19: Embedded Mounting Method

Chipsee Products Naming Rules

CS10600R070P-C111

CS10600R070E-C111

CS Chipsee Product Abbreviations
10 Horizontal Resolution

80Means 800 Pixel

10Means 1024 Pixel

12Means 1280 Pixel

14Means 1440 Pixel

19Means 1920 Pixel

600 Vertical Resolution

480Means 480 Pixel

600Means 600 Pixel

768Means 768 Pixel

800Means 800 Pixel

900Means 900 Pixel

102Means 1024 Pixel

108Means 1080 Pixel

R(F/T) Product based on Rockchip (Freescale/TI) CPU
070 LCD Dimension

050Means 5.0 Inch

070Means 7.0 Inch

080Means 8.0 Inch

097Means 9.7 Inch

101Means 10.1 Inch

104Means 10.4 Inch

120Means 12.0 Inch

150Means 15.0 Inch

170Means 17.0 Inch

185Means 18.5 Inch

190Means 19.0 Inch

215Means 21.5 Inch

256Means 25.6 Inch

P Means Embedded PC or Panel PC

E  Means Embedded PC without Case

P  Means Panel PC with Case

C Means Touch Type

R  Means Resistive Touch

C  Means Capacitive Touch

1 Means LCD Brightness

1  Means Common Brightness

2  Means High Brightness

1 PCB Version

Baseboard PCB Version Number

1 PCB Version

SOM Module PCB Version Number

How to Get Support

Please feel free to contact us with any questions, queries or suggestions.
If your question is about technical support or troubleshooting for one of our products, we kindly ask you to first check our documentation for a possible solution.
If you cannot find the solution you are looking for then please write to service@chipsee.com providing all possible details.

Chipsee assumes no responsibility for any errors, which may appear in this manual. Furthermore, Chipsee reserves the right to alter the hardware, software, and/or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein. Chipsee products are not authorized for use as critical components in life support devices or systems.
