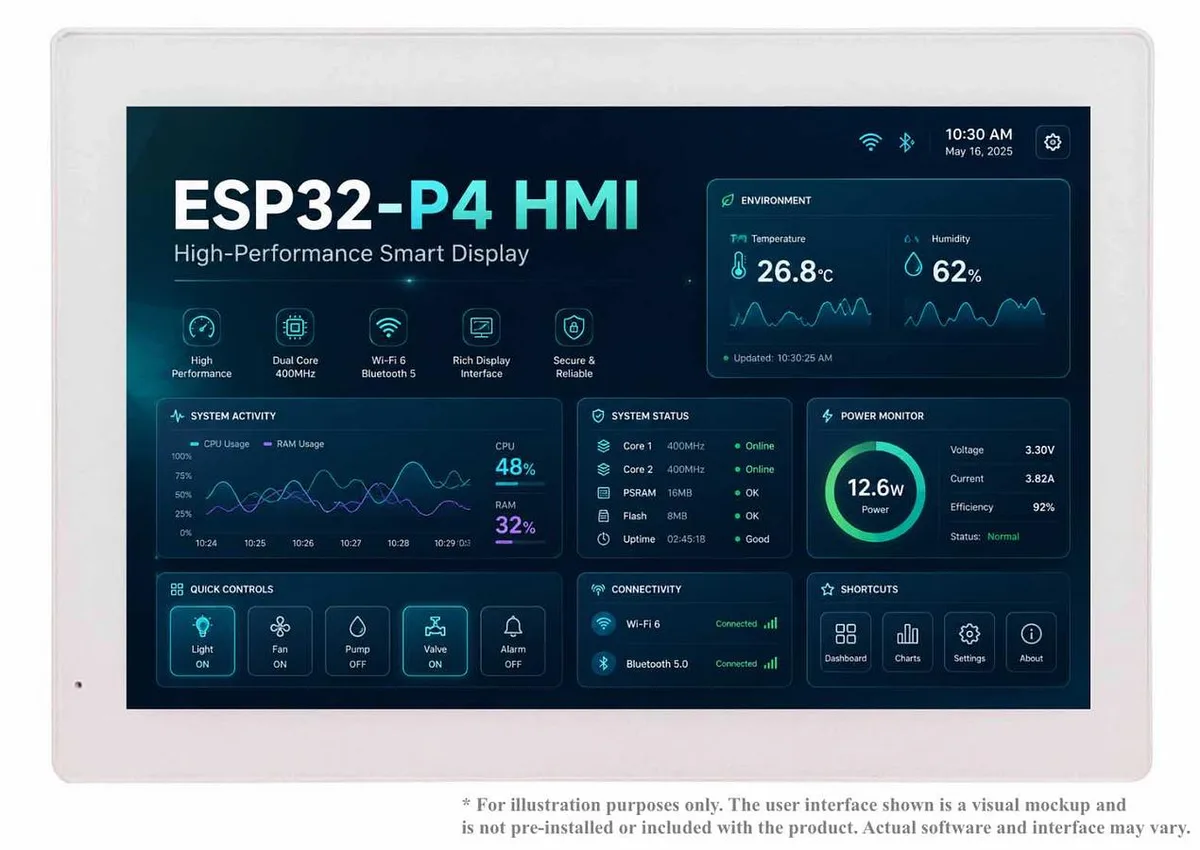

ESP32 智能显示终端
AIO-ESP32P4-101
料号: CS12800-ESP32P4-101A
AIO-ESP32P4-101 是一款面向嵌入式 HMI、联网控制和设备交互的 Chipsee ESP32 智能显示终端。产品采用 10.1” IPS LCD, 1280 x 800 px, brightness 400 cd/m2，并配备10-point capacitive touch with 1.0mm armored glass。1 x 100Mbps LAN便于设备接入现场系统。
处理器Dual-core 32-bit RISC-V, up to 400 MHz; single-core 32-bit LP RISC-V, up to 40 MHz
显示屏10.1” IPS LCD, 1280 x 800 px, brightness 400 cd/m2
触摸屏10-point capacitive touch with 1.0mm armored glass
内存768 KB HP L2MEM + 32 KB LP SRAM + 8 KB SPM; 32MB in-package PSRAM
存储32MB external SPI Flash
电源输入9V to 32V DC
完整参数
技术规格

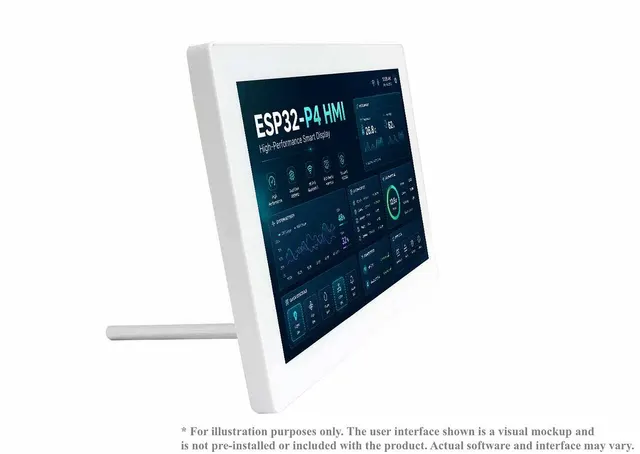

| 处理器 | Dual-core 32-bit RISC-V, up to 400 MHz; single-core 32-bit LP RISC-V, up to 40 MHz |
|---|---|
| 存储 | 32MB external SPI Flash |
| 内存 | 768 KB HP L2MEM + 32 KB LP SRAM + 8 KB SPM; 32MB in-package PSRAM |
| 显示屏 | 10.1” IPS LCD, 1280 x 800 px, brightness 400 cd/m2 |
| 触摸屏 | 10-point capacitive touch with 1.0mm armored glass |
| 以太网 | 1 x 100Mbps LAN |
| Wi-Fi/蓝牙 | WiFi 6, Bluetooth LE 5 (optional, ESP32-C6 is not mounted by default) |
| 4G/LTE | Internal Cat 1 4G/LTE module, not mounted by default |
| 音频 | 3.5mm audio out interface; internal dual channel speaker; front microphone |
| 蜂鸣器 | Onboard buzzer, driven by GPIO |
| 摄像头 | 1 x MIPI-CSI (2-lane) interface for connecting a MIPI-CSI (2-lane) 15-pin 1.0mm camera such as a Raspberry Pi camera (optional) |
| GPIO | 0 x GPIO (default), 8 x GPIO (optional, by configuring 2 x RS232, 1 x RS485 and 1 x Relay to 8 x GPIO) |
| 继电器 | 1 x relay with “Normally Closed” and “Normally Open” output; relay NC and NO can be configured to 1 x CAN FD (optional); relay NC and NO can be configured to 2 x GPIO (optional) |
| RS232 | 2 x RS232 (default); RS232_2 can be configured to RS485 (optional); 2 x RS232 can be configured to 4 x GPIO (optional) |
| RS485 | 1 x RS485 (default); up to 2 x RS485 (optional, by configuring RS232_2 to RS485); 1 x RS485 can be configured to 2 x GPIO (optional) |
| CAN 总线 | 0 x CAN (default); 1 x CAN FD bus, arbitration bit rate up to 1Mbps, data bit rate up to 8Mbps, by configuring 1 x relay to CAN (optional) |
| USB | 2 x USB 2.0 Type-A high-speed host ports; 1 × USB 1.1 Type-C port for firmware flashing and debugging; does not support powering the device. |
| Micro SD 卡槽 | 1 x TF (micro SD) card slot |
| 实时时钟 | High-accuracy RTC with supercapacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| 电源输入 | 9V to 32V DC |
| 电流 | 260mA max at 15V, 200mA typical at 15V |
| 功耗 | 4W max, 3W typical |
| 工作温度 | From -20°C to +70°C |
| 尺寸 | 260.54 x 178.54 x 26.9mm |
| 重量 | 620g |
| 安装方式 | VESA, Stand |

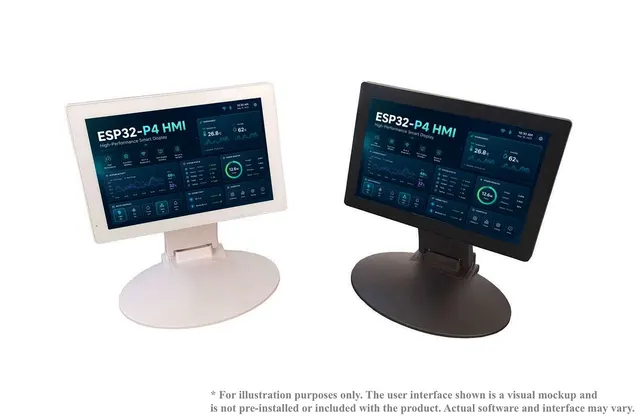

| 塑料外壳颜色 | Black / White |
| 认证 | CE, RoHS |
