Intel x86 Industrial PCs

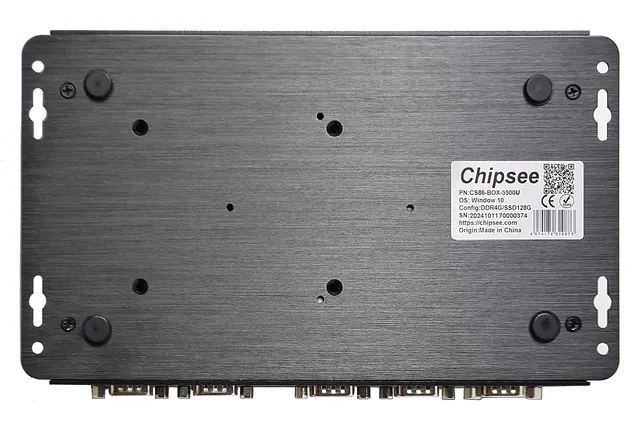

CS86-BOX-5500U
The CS86-BOX-5500U is a Chipsee industrial box PC for industrial HMI, control and connected edge applications. Built around Intel Core i7 5500U, Dual(2) Core 4 Threads, 2.4GHz Base Frequency, 3.0GHz Turbo Frequency, it combines 4GB(1 x 4GB) DDR3L 1600MHz (default), Up to 16GB (dual channel, optional) with Default mSATA 128GB SSD (supports up to 2TB), supports 2.5” SATA HDD (SATA2.0). It supports Ubuntu 22 and above, CentOS 9 Linux, Windows 8/10 64bit. 2 x RJ45, GbE (Intel® i225), Wake on LAN (WoL) support helps connect the unit to the wider system.
ProcessorIntel Core i7 5500U, Dual(2) Core 4 Threads, 2.4GHz Base Frequency, 3.0GHz Turbo Frequency
Memory4GB(1 x 4GB) DDR3L 1600MHz (default), Up to 16GB (dual channel, optional)
StorageDefault mSATA 128GB SSD (supports up to 2TB), supports 2.5” SATA HDD (SATA2.0)
Operating systemUbuntu 22 and above, CentOS 9 Linux, Windows 8/10 64bit
Power input12V 5A DC
TemperatureFrom -15°C to +80°C
Full specification
Technical details
| CPU | Intel Core i7 5500U, Dual(2) Core 4 Threads, 2.4GHz Base Frequency, 3.0GHz Turbo Frequency |
|---|---|
| Mother Board | H81U Series, AMI BIOS |
| GPU | Intel® HD Graphics 5500 iGPU |
| RAM | 4GB(1 x 4GB) DDR3L 1600MHz (default), Up to 16GB (dual channel, optional) |
| Storage | Default mSATA 128GB SSD (supports up to 2TB), supports 2.5” SATA HDD (SATA2.0) |

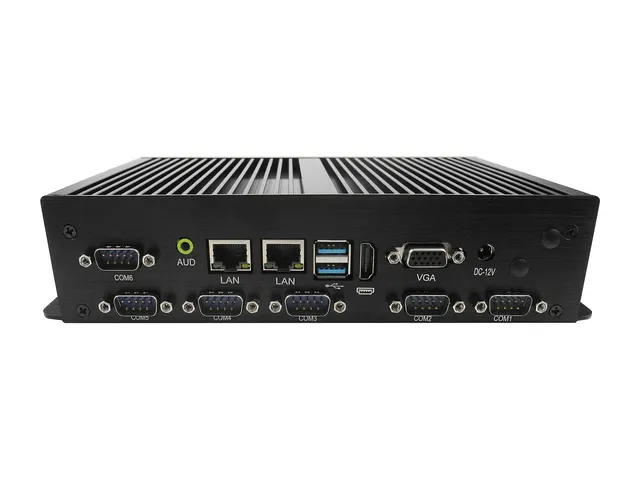

| USB | 4 x USB3.0, 2 x USB2.0 HOST ports (Type A) |
| PCIe | 1 x Full Size Mini PCIe |
| Audio | 1 x Audio interface, Realtek ALC662 chip, supports dual channel, stereo, Lineout |
| LAN | 2 x RJ45, GbE (Intel® i225), Wake on LAN (WoL) support |
| UART | Default 6 x RS232 (COM1 ~ COM4 can be configured to RS485 by using one internal RS232 to RS485 board) |
| WiFi/BT | Optional |
| HDMI | 1 x HDMI Out port, up to 2560x1600 60Hz, independent/identical display with VGA |
| VGA | 1 x VGA Out port, up to 1920x1080 60Hz, independent/identical display with HDMI |
| SATA | 1 x Full size mSATA, 1 x SATA |
| Power IN | 12V 5A DC |
| Current | 2.75A (100% CPU, 12V) |
| OS | Ubuntu 22 and above, CentOS 9 Linux, Windows 8/10 64bit |
| Operating Temp. | From -15°C to +80°C |
| Dimensions | 235 * 137 * 51mm |
| Shell Material | Aluminum Alloy |
| Mounting | VESA, Desktop |
| Weight | 1500g |
