CS86-BOX-7500T
Part number: CS86-BOX-7500T

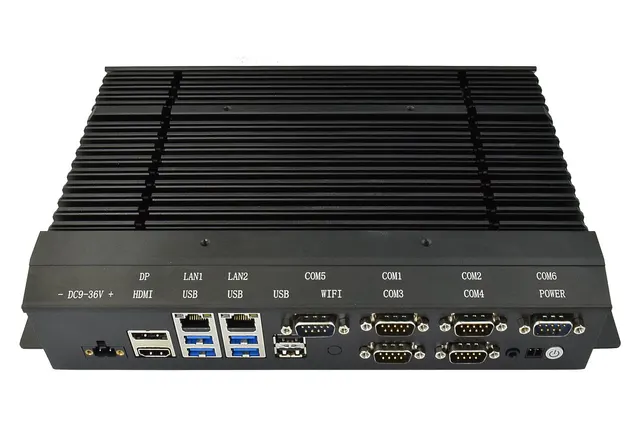

The CS86-BOX-7500T is a Chipsee industrial box PC for industrial HMI, control and connected edge applications. Built around Intel Core i5 7500T, Quad(4) Core 4 Threads, 2.7GHz Base Frequency, 3.3GHz Turbo Frequency, it combines Default 4GB (1 x single channel SO-DIMM 2133/2400/2666). Optional up to 64GB(2 x SO-DIMM) with Default 128GB, 1 x SATA3.0 7P Connector, 1 x M.2 M-KEY (SATA SSD). It supports Ubuntu Linux(default), Windows 8.1, Windows 10, Windows 11. 2 x RJ45, 10/100/1000 Mbps (Intel i210) helps connect the unit to the wider system.
Full specification
Technical details
| CPU | Intel Core i5 7500T, Quad(4) Core 4 Threads, 2.7GHz Base Frequency, 3.3GHz Turbo Frequency |
|---|---|
| Mother Board | Intel H110 Chipset |
| GPU | Intel® HD Graphics 630 integrated GPU, shared memory, supports dual HDMI display |
| RAM | Default 4GB (1 x single channel SO-DIMM 2133/2400/2666). Optional up to 64GB(2 x SO-DIMM) |
| Storage | Default 128GB, 1 x SATA3.0 7P Connector, 1 x M.2 M-KEY (SATA SSD) |
| USB | 4 x USB 3.0 (Type A) |
| PCIe | 1 x Mini-PCIe (WIFI/BT/4G) |
| Audio | Line in, line out, dual channel HD audio |
| LAN | 2 x RJ45, 10/100/1000 Mbps (Intel i210) |
| UART | 4 x RS232, 2 x RS485 |
| 4G | Optional, mini PCIe module available from the manufacturer |
| WiFi/BT | Optional, mini PCIe module available from the manufacturer |
| Display | 1 x HDMI Out , 1 x DP Out |
| Power IN | 9-36V DC |
| Power Consumption | 40W |
| OS | Ubuntu Linux(default), Windows 8.1, Windows 10, Windows 11 |
| Temp. | From -20°C to +60°C (Operational), From -30°C to +80°C (Storage) |
| Humidity | From 5% to 95% at 40°C relative humidity (no condensation) |
| Dimensions | 260 x 187 x 52mm |
| Structure | Aluminum magnesium alloy |
| Mounting | VESA, Desktop, Wall, Embedded |
| Weight | 2.85kg |
