CS86-BOX-J1900 PRO

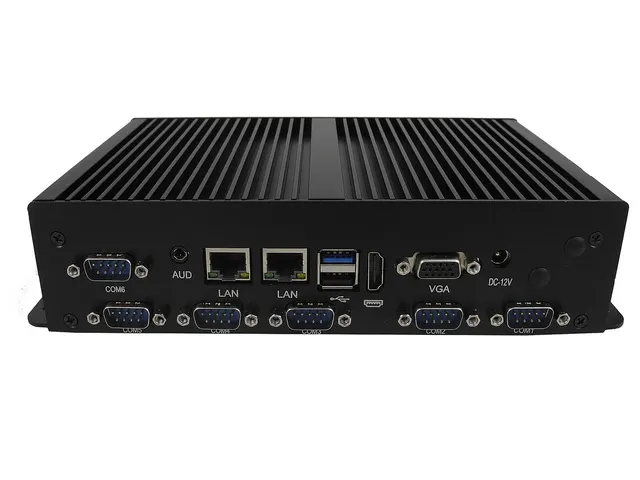

The CS86-BOX-J1900 PRO is a Chipsee industrial box PC for industrial HMI, control and connected edge applications. Built around Intel Core Celeron J1900, Quad(4) Core 4 Threads, 2.0GHz, it combines 4GB(1 x 4GB) DDR3L 1600MHz (default), Up to 8GB (single channel, optional) with Default mSATA 128GB SSD (supports up to 2TB), supports 2.5” SATA HDD (SATA2.0). It supports Ubuntu 22 and above, CentOS 9 Linux, Windows 7/8/10. 2 x RJ45, GbE (Intel® i211), Wake on LAN (WoL) support helps connect the unit to the wider system.
ProcessorIntel Core Celeron J1900, Quad(4) Core 4 Threads, 2.0GHz
Memory4GB(1 x 4GB) DDR3L 1600MHz (default), Up to 8GB (single channel, optional)
StorageDefault mSATA 128GB SSD (supports up to 2TB), supports 2.5” SATA HDD (SATA2.0)
Operating systemUbuntu 22 and above, CentOS 9 Linux, Windows 7/8/10
Power input12V 3A DC
TemperatureFrom -15°C to +80°C
Full specification
Technical details
| CPU | Intel Core Celeron J1900, Quad(4) Core 4 Threads, 2.0GHz |
|---|---|
| Mother Board | BayTrail, AMI BIOS |
| GPU | Intel® HD Graphics |
| RAM | 4GB(1 x 4GB) DDR3L 1600MHz (default), Up to 8GB (single channel, optional) |
| Storage | Default mSATA 128GB SSD (supports up to 2TB), supports 2.5” SATA HDD (SATA2.0) |
| USB | 1 x USB3.0, 5 x USB2.0 HOST ports (Type A) |
| PCIe | 1 x Full Size Mini PCIe |
| Audio | 1 x Audio interface, Realtek ALC662 chip, supports dual channel, stereo, Lineout |
| LAN | 2 x RJ45, GbE (Intel® i211), Wake on LAN (WoL) support |
| UART | Default 6 x RS232 (COM1 ~ COM5 can be configured to 5 x RS485 by using a internal RS232 to RS485 board) |
| WiFi/BT | Optional |
| HDMI | 1 x HDMI Out port, up to 2560x1600 60Hz, independent/identical display with VGA |
| VGA | 1 x VGA Out port, up to 1920x1080 60Hz, independent/identical display with HDMI |
| SATA | 1 x Full size mSATA, 1 x SATA |
| Power IN | 12V 3A DC |
| Current | 1.7A (100% CPU, 12V) |
| OS | Ubuntu 22 and above, CentOS 9 Linux, Windows 7/8/10 |
| Operating Temp. | From -15°C to +80°C |
| Dimensions | 235 * 137 * 51mm |
| Shell Material | Aluminum Alloy |

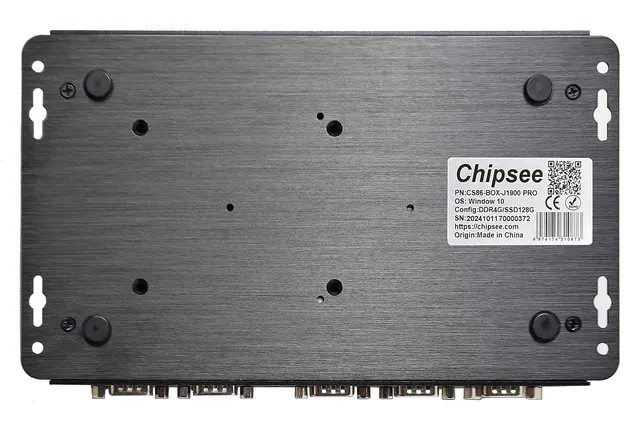

| Mounting | VESA, Desktop |
| Weight | 1500g |
