CS86-BOX-J1900

Name: CS86-BOX-J1900
Brand: Chipsee
SKU: CS86-BOX-J1900

The CS86-BOX-J1900 is a Chipsee industrial box PC for industrial HMI, control and connected edge applications. Built around Intel® Celeron® J1900, Quad-Core, 2GHz(Turbo Boost 2.41GHz), 2MB L2 Cache, 10W TDP, AMI BIOS, it combines Default 4GB 1600MHz DDR3L, up to 8GB (1 x Single channel SO-DIMM 204-pin slot, supports DDR3L, 1066/1333/1600MHz) with Default 1 x full size mSATA 64GB SSD, up to 2TB; 1 x 2.5” SATA 2.0. It supports Default Ubuntu, supports CentOS Linux, Windows 7, Windows 8, Windows 10. 2 x RJ45, 10/100/1000 Mbps (Realtek 8111F), supports Wake on LAN (WoL) helps connect the unit to the wider system.

ProcessorIntel® Celeron® J1900, Quad-Core, 2GHz(Turbo Boost 2.41GHz), 2MB L2 Cache, 10W TDP, AMI BIOS

Display1 x HDMI Out (1920 x 1080 @ 60Hz), 1 x VGA Out (1920 x 1080 @ 60Hz), supports VGA + HDMI synchronous and asynchronous display

MemoryDefault 4GB 1600MHz DDR3L, up to 8GB (1 x Single channel SO-DIMM 204-pin slot, supports DDR3L, 1066/1333/1600MHz)

StorageDefault 1 x full size mSATA 64GB SSD, up to 2TB; 1 x 2.5” SATA 2.0

Operating systemDefault Ubuntu, supports CentOS Linux, Windows 7, Windows 8, Windows 10

Power input12V DC(DC-IN 5.5 x 2.5)

Request project quote Technical docs

Full specification

Technical details

CPU	Intel® Celeron® J1900, Quad-Core, 2GHz(Turbo Boost 2.41GHz), 2MB L2 Cache, 10W TDP, AMI BIOS
GPU	Intel® HD Graphics (Bay Trail) integrated GPU, shared memory
RAM	Default 4GB 1600MHz DDR3L, up to 8GB (1 x Single channel SO-DIMM 204-pin slot, supports DDR3L, 1066/1333/1600MHz)
Storage	Default 1 x full size mSATA 64GB SSD, up to 2TB; 1 x 2.5” SATA 2.0
USB	1 x USB 3.0 (Type A), 3 x USB 2.0 (Type A)

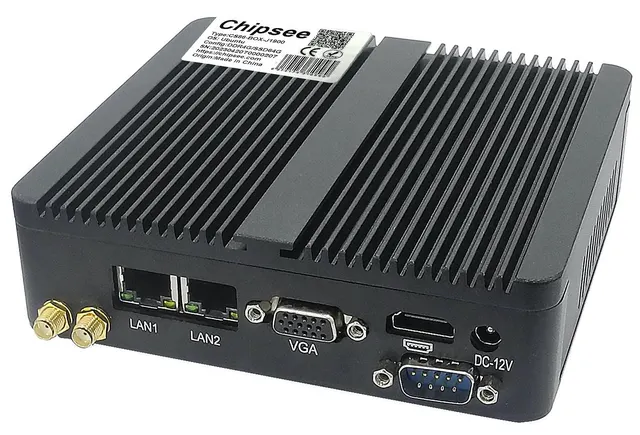

LAN	2 x RJ45, 10/100/1000 Mbps (Realtek 8111F), supports Wake on LAN (WoL)
UART	2 x RS232
3G/4G	Optional, USB module available from the manufacturer, no on-board SIM slot
WiFi/BT	Optional, mini PCIe module available from the manufacturer
Audio	Realtek ALC662, two channel, stereo audio, line out
Display	1 x HDMI Out (1920 x 1080 @ 60Hz), 1 x VGA Out (1920 x 1080 @ 60Hz), supports VGA + HDMI synchronous and asynchronous display
Extension	1 x half size mini PCIe
Power IN	12V DC(DC-IN 5.5 x 2.5)
Power Adapter	DC 12V 3A/36W (AC to DC, 100 ~ 240V)
Current max.	1.25A
OS	Default Ubuntu, supports CentOS Linux, Windows 7, Windows 8, Windows 10
Graphic Engine	DirectX 11.1, OpenCL 1.2, OpenGL 3.2; Encoding: H.264, MPEG2/4, VC1, WMV9; Decoding: H.264, MPEG2
Temp.	From -20°C to +69°C (Operational), From +15°C to +35°C (Storage)
Humidity	From 5% to 95% relative humidity (no condensation)
Dimensions	133 x 126.2 x 38 mm
Structure	Aluminium Casing

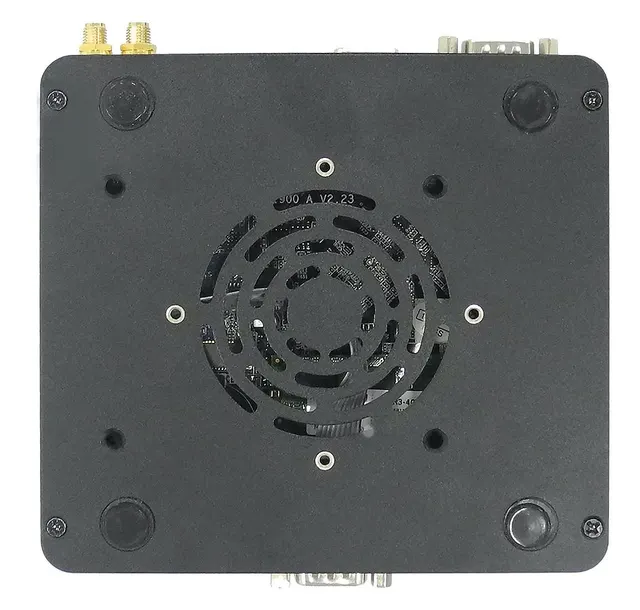

Mounting	VESA 75 x 75, Wall, Desktop
Weight	0.65 kg
