Industrial Touch Displays

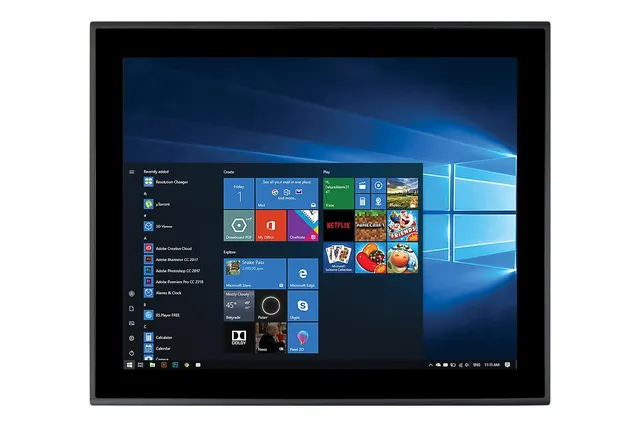

PIM-190-P
Part number: CS-D190P
The PIM-190-P is a Chipsee industrial touch display designed for HMI, automation and equipment visualization. It combines 1280 x 1024 (5:4) with Projecting Capacitance (G+G).
Display1280 x 1024 (5:4)
TouchProjecting Capacitance (G+G)
Power input12V 3A DC(default), 9-30V (optional)
TemperatureFrom 0°C to +50°C, 90% RH (No condensation)
Full specification
Technical details
| Backlight | Led |
|---|---|
| Type of Pen | Fingers, Hands with Gloves, Conductive Stylus |
| Brightness | 250 cd/m2 |
| Waterproof | Touch surfaces will not be affected by water droplets or steam |
| Contrast Ratio | 1000:1 |
| Calibration | No Calibration Tool |
| Viewing Angle | Horizontal: 150°(min)~170°(typ) / Vertical: 140°(min)~160°(typ) |
| Connect | 1 x USB 2.0 (Type-B) |
| Response Time | 5ms |
| Multi Touch Protocol Support | Based on the operating system of the host PC |
| Display Color | 16.7M Colors |
| Display Resolution | 1280 x 1024 (5:4) |
| Dimensions | 435 x 363 x 53.5mm |
| Refresh Frequency | 60Hz |
| Input Resolution | 1280 x 1024 (5:4) @ 60Hz |
| Weight | 5.4kg |
| Connector | VGA / HDMI |
| Mounting Methods | VESA and PANEL |
| Power Input | 12V 3A DC(default), 9-30V (optional) |
| OSD Control | Button |
| Power Supply | ≤ 24W |
| OSD Language | Multilingual Support |
| Standby Power | ≤ 2W |
| Glass | 2mm Tempered Glass with Black Silk-screen |
| Work Environment (temp.) | From 0°C to +50°C, 90% RH (No condensation) |
| Touch Point | 10 |
| Storage Environment | From -20°C to +60°C, 90% RH (No condensation) |
| Touch Technology | Projecting Capacitance (G+G) |
| Accessories | Mounting Clip / HDMI Cable / USB Cable / Power Adapter |
