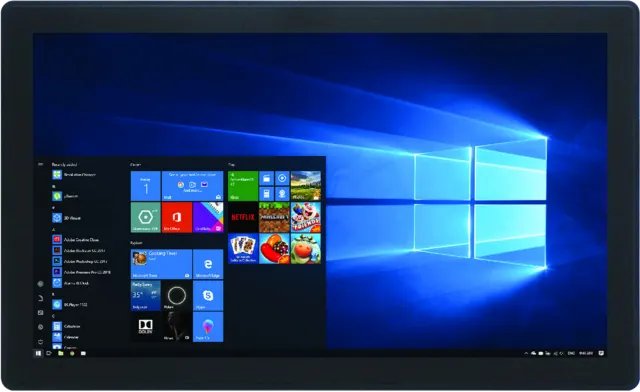

PIM-215-C
Part number: CS-D215
The PIM-215-C is a Chipsee industrial touch display designed for HMI, automation and equipment visualization. It combines 1920×1080 (16:9) with Projecting Capacitance (G+G). It supports Windows 7/8, Android, Linux.
Display1920×1080 (16:9)
TouchProjecting Capacitance (G+G)
Operating systemWindows 7/8, Android, Linux
Power input12V 3A DC
TemperatureFrom 0°C to +40°C, 90% RH
Full specification
Technical details
| Backlight | Led |
|---|---|
| Type of Pen | Fingers, Hands with Gloves, Conductive Stylus |
| Brightness | 250 cd/m2 |
| Waterproof | Touch surfaces will not be affected by water droplets or steam |
| Contrast Ratio | 3000:1 |
| Calibration | No Calibration Tool |
| Viewing Angle | Horizontal: 178° / Vertical: 178° |
| Response Time | 18ms (GTG) |
| Connect | 1 x USB 2.0 (Type-B) |
| Display Color | 16.7M Colors |
| Multi Touch Protocol Support | Windows |
| Display Resolution | 1920×1080 (16:9) |
| Operating System | Windows 7/8, Android, Linux |
| Refresh Frequency | 60Hz |
| Dimensions | 532.3 x 323.7 x 42.5mm |
| Input Resolution | 1920×1080 (16:9) @ 60Hz |
| Packaging Size | 680 x 450 x 150mm |
| Connector | VGA / DVI / HDMI |
| Weight | 5000g / 7000g |
| Mounting Methods | VESA, MIS-D, 100, C |
| OSD Control | Button |
| Power Input | 12V 3A DC |
| OSD Language | English, Chinese |
| Power Supply | ≤ 20W |
| Glass | 3mm Tempered Glass with Black Silk-screen |
| Standby Power | ≤ 2W |
| Touch Point | 10 |
| Work Environment (temp.) | From 0°C to +40°C, 90% RH |
| Touch Technology | Projecting Capacitance (G+G) |
| Storage Environment | From -20°C to +60°C, 90% RH |
| Accessories | Bracket / Power Line / VGA Line / USB Line / Power Adapter |
