PPC-J1900-101-C

Name: PPC-J1900-101-C
Brand: Chipsee
SKU: PPC-J1900-101-C

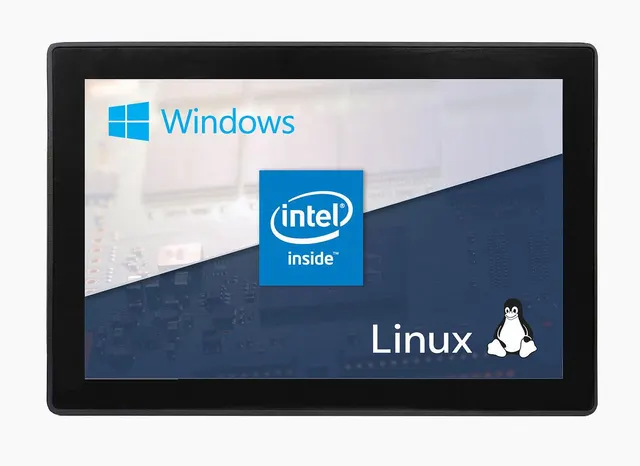

The PPC-J1900-101-C is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Intel® Celeron® J1900, 2GHz, Quad-Core, 2MB Cache, TDP=10W, it combines Default 4GB, maximum 8GB, DDR3L 1333 SO-DIMM with Default mSATA 128GB SSD, supports 256/512GB. The configuration includes 10.1” LCD, resolution 1280 x 800 px, brightness 350 cd/m2 and Capacitive Touch Screen. It supports Ubuntu Linux (default), Windows 7 / 8 / 10 (optional). 1 x RJ45, 1 Gbps Ethernet Controller helps connect the unit to the wider system.

ProcessorIntel® Celeron® J1900, 2GHz, Quad-Core, 2MB Cache, TDP=10W

Display10.1” LCD, resolution 1280 x 800 px, brightness 350 cd/m2

TouchCapacitive Touch Screen

MemoryDefault 4GB, maximum 8GB, DDR3L 1333 SO-DIMM

StorageDefault mSATA 128GB SSD, supports 256/512GB

Operating systemUbuntu Linux (default), Windows 7 / 8 / 10 (optional)

Request project quote Technical docs

Full specification

Technical details

CPU	Intel® Celeron® J1900, 2GHz, Quad-Core, 2MB Cache, TDP=10W
GPU	Intel® HD integrated GPU, 512MB shared memory
RAM	Default 4GB, maximum 8GB, DDR3L 1333 SO-DIMM
Display	10.1” LCD, resolution 1280 x 800 px, brightness 350 cd/m2
Storage	Default mSATA 128GB SSD, supports 256/512GB
Touch	Capacitive Touch Screen

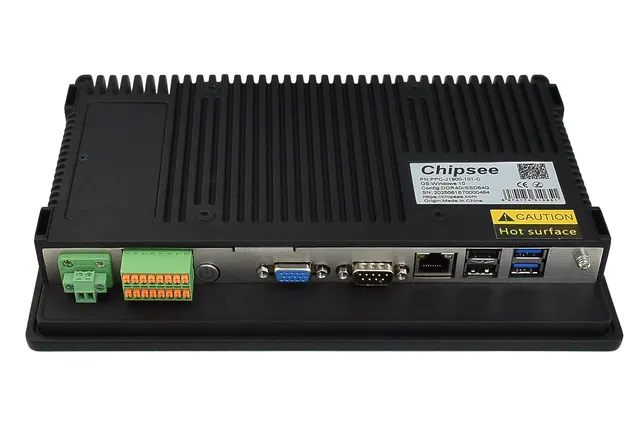

USB	2 x USB 3.0 HOST, 2 x USB 2.0 HOST ports (Type A)
LAN	1 x RJ45, 1 Gbps Ethernet Controller
UART	5 x RS232, 1 x RS485
3G/4G	Optional, module available from other manufacturers/stores
WiFi/BT	Optional, module available from the Chipsee store
VGA	1 x VGA out
mini-PCIe	1 x mini PCIe
Power IN	12V DC
Power Consumption	17W
OS	Ubuntu Linux (default), Windows 7 / 8 / 10 (optional)
Operating Temp.	From -15°C to 60°C (no condensation)
Storage Temp.	From -20 °C to 70°C (no condensation)
Dimensions	253.20 X 171.83 X 35mm

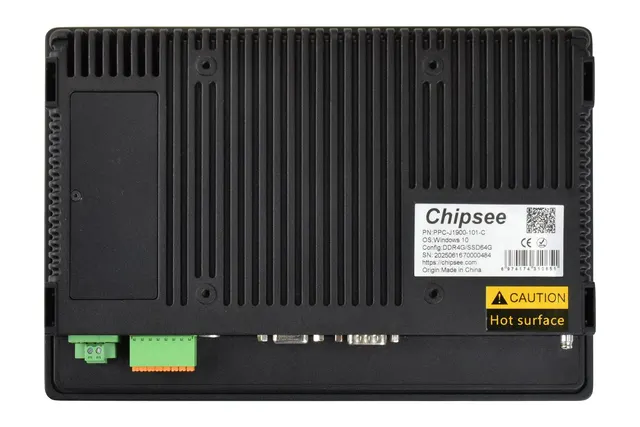

Mounting	VESA 100, Panel mounting with fixtures
Weight	1200g
