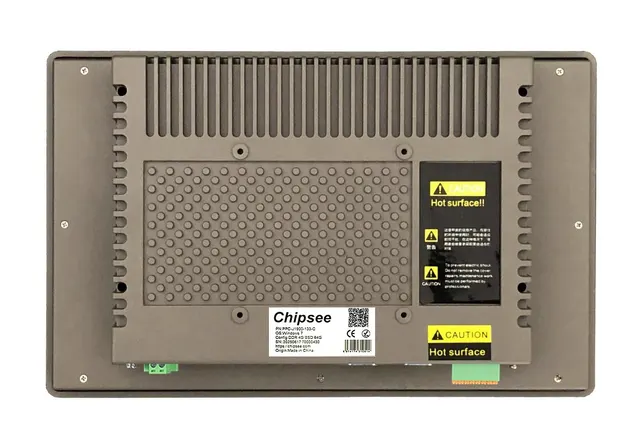

PPC-J1900-133-C

Name: PPC-J1900-133-C
Brand: Chipsee
SKU: PPC-J1900-133-C

The PPC-J1900-133-C is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Intel® Celeron® J1900, 2GHz, Quad-Core, 2MB Cache, TDP=10W, it combines Default 4GB, maximum 8GB, DDR3L 1333 SO-DIMM with Default mSATA 128GB SSD, supports 256/512GB. The configuration includes 13.3” LCD, resolution 1920 x 1080 px, brightness 300 cd/m2 and Multi-point capacitive touch screen. It supports Ubuntu Linux (default), Windows 7 / 8 / 10 (optional). 2 x RJ45, 1 Gbps Ethernet Controller helps connect the unit to the wider system.

ProcessorIntel® Celeron® J1900, 2GHz, Quad-Core, 2MB Cache, TDP=10W

Display13.3” LCD, resolution 1920 x 1080 px, brightness 300 cd/m2

TouchMulti-point capacitive touch screen

MemoryDefault 4GB, maximum 8GB, DDR3L 1333 SO-DIMM

StorageDefault mSATA 128GB SSD, supports 256/512GB

Operating systemUbuntu Linux (default), Windows 7 / 8 / 10 (optional)

Request project quote Technical docs

Full specification

Technical details

CPU	Intel® Celeron® J1900, 2GHz, Quad-Core, 2MB Cache, TDP=10W
GPU	Intel® HD integrated GPU, 512MB shared memory
RAM	Default 4GB, maximum 8GB, DDR3L 1333 SO-DIMM
Display	13.3” LCD, resolution 1920 x 1080 px, brightness 300 cd/m2
Storage	Default mSATA 128GB SSD, supports 256/512GB
Touch	Multi-point capacitive touch screen
USB	1 x USB 3.0 HOST, 3 x USB 2.0 HOST ports (Type A)
LAN	2 x RJ45, 1 Gbps Ethernet Controller
UART	4 x RS232, 2 x RS485
3G/4G	Optional, module available from the Chipsee store
WiFi/BT	Optional, module available from the Chipsee store
HDMI	1 x HDMI out
mini-PCIe	1 x mini PCIe
Power IN	12V DC
Power Consumption	22W
OS	Ubuntu Linux (default), Windows 7 / 8 / 10 (optional)
Operating Temp.	From 0°C to 60°C (no condensation)
Storage Temp.	From -20°C to 75°C (no condensation)
Dimensions	355 x 225 x 55mm
Mounting	VESA 100, Panel mounting with fixtures
Weight	3000g
