PPC-J6412-215-C

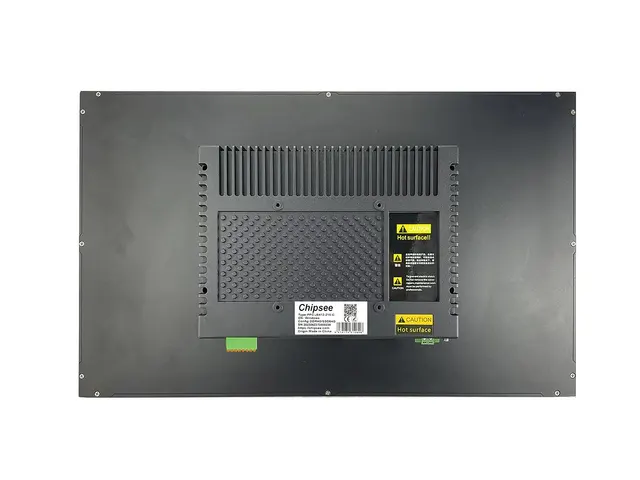

The PPC-J6412-215-C is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Intel® Celeron® J6412, 2GHz, Quad-Core, 1.5M Cache, TDP=10W, it combines Default 4GB, maximum 32GB, 1 x DDR4 3200 SO-DIMM with Default mSATA 64GB SSD; 1 x SATA2.5 HDD 1T; 1 x M.2 2280 NVMe PCI-E 3.0 x 2 Slot. The configuration includes 21.5” LCD, resolution 1920 x 1080 px, brightness 250 cd/m2 and Multi-point capacitive touch screen. It supports Ubuntu 20.04(default), Windows 10, Windows 11. 2 x RJ45, 1Gbps (Intel) helps connect the unit to the wider system.
Full specification
Technical details
| CPU | Intel® Celeron® J6412, 2GHz, Quad-Core, 1.5M Cache, TDP=10W |
|---|---|
| GPU | Intel® HD integrated GPU, 512MB shared memory |
| RAM | Default 4GB, maximum 32GB, 1 x DDR4 3200 SO-DIMM |
| Display | 21.5” LCD, resolution 1920 x 1080 px, brightness 250 cd/m2 |
| Storage | Default mSATA 64GB SSD; 1 x SATA2.5 HDD 1T; 1 x M.2 2280 NVMe PCI-E 3.0 x 2 Slot |
| Touch | Multi-point capacitive touch screen |
| Audio | Realtek High Definition Audio Codec, MIC/Line-Out, Amplifier |
| USB | 4 x USB 3.0 Type A HOST |
| LAN | 2 x RJ45, 1Gbps (Intel) |
| UART | Default 4 x RS232 and 2 x RS485. The 2 x RS485: COM5/6 can be configured to RS232(optional) |
| 3G/4G/LTE/5G | Optional, module available from other manufacturers/stores |
| WiFi/BT | Optional, module available from the Chipsee store |
| Expandability | 2 x Mini-PCIe (One for optional WiFi/BT/3G/4G/5G, one for mSATA) |
| HDMI | 1 x HDMI out |
| Power IN | From 9V to 30V DC |
| Power Consumption | 24.5W |
| OS | Ubuntu 20.04(default), Windows 10, Windows 11 |
| Operating Temp. | From -20°C to +60°C (with SSD) |
| Storage Temp. | From -30°C to +80°C |
| Humidity | From 5% to 95% relative humidity (no condensation) |
| Dimensions | 535 x 331 x 52.45mm |
| EMC | CE/FCC/ROHS/ISO-9001 |
| Mounting | VESA 100mm, Panel mounting with fixtures, Wall, Desktop |
| Weight | 5500g |
