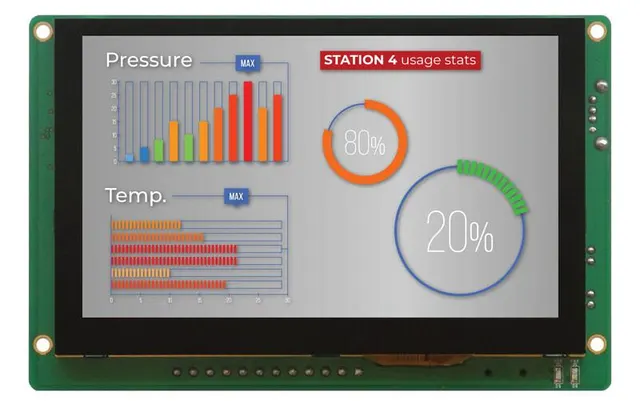

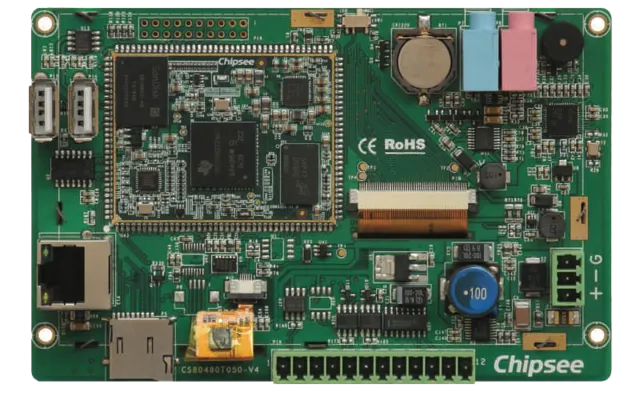

EPC-A8-050-C
Part number: CS80480T050E
The EPC-A8-050-C is a Chipsee embedded panel PC for industrial HMI, control and connected edge applications. Built around AM3354ZCZ100, Arm® Cortex®-A8, 1GHz, it combines 512MB DDR3 with TF Card, Supports up to 32GB SDHC. The configuration includes 5.0” LCD, 800 x 480 resolution px, brightness 250 cd/m2 and 10-point capacitive and resistive touch with 1mm tempered glass. 1 x Channel 100M LAN helps connect the unit to the wider system.
ProcessorAM3354ZCZ100, Arm® Cortex®-A8, 1GHz
Display5.0” LCD, 800 x 480 resolution px, brightness 250 cd/m2
Touch10-point capacitive and resistive touch with 1mm tempered glass
Memory512MB DDR3
StorageTF Card, Supports up to 32GB SDHC
Power inputFrom 6V to 36V
Full specification
Technical details
| CPU | AM3354ZCZ100, Arm® Cortex®-A8, 1GHz |
|---|---|
| RAM | 512MB DDR3 |
| eMMC | 4GB |
| Storage | TF Card, Supports up to 32GB SDHC |
| Display | 5.0” LCD, 800 x 480 resolution px, brightness 250 cd/m2 |
| Touch | 10-point capacitive and resistive touch with 1mm tempered glass |

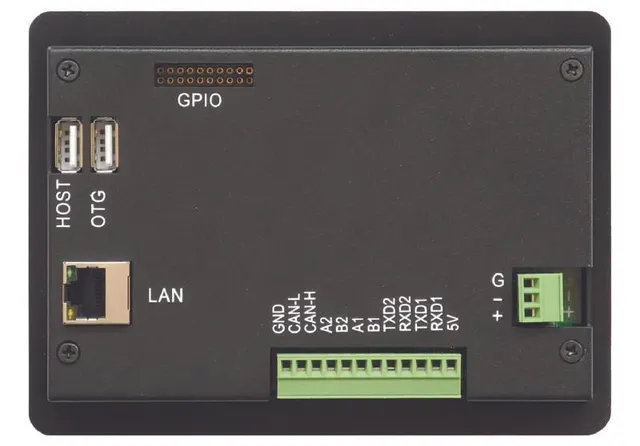

| USB | 1 x USB 2.0 Host, 1 x USB OTG |
| LAN | 1 x Channel 100M LAN |
| Audio | 3.5mm Audio In/Out Connector |
| Buzzer | Yes |
| RTC | Yes |
| RS232 | 2 x RS232 |
| RS485 | 2 x RS485 |
| CAN | 1 x CAN |
| GPIO | 8 Channels |
| WiFi/BT | USB WiFi (optional) |
| Expansion Port | 1 x 20-pin (PCB Footprint) |
| Power Input | From 6V to 36V |
| Current at 12V | 400mA Max |
| Power Consumption | 3.5W Typical |
| Working Temperature | From -20°C to +70°C |
| Dimensions | EPC-A8-050-C (PN: CS80480T050E): 134.2 x 86.82 x 28mm; PPC-A8-050-C (PN: CS80480T050P): 150 x 110 x 26.5mm |
| Weight | EPC-A8-050-C (PN: CS80480T050E): 210g; PPC-A8-050-C (PN: CS80480T050P): 440g |

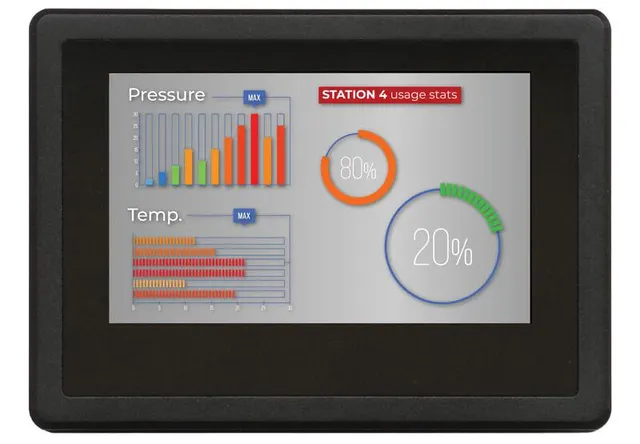

| Mounting | EPC-A8-050-C (PN: CS80480T050E): Embedded; PPC-A8-050-C (PN: CS80480T050P): Panel |
