TI Industrial PCs
EPC-A8-080-R
Part number: CS80600T080E

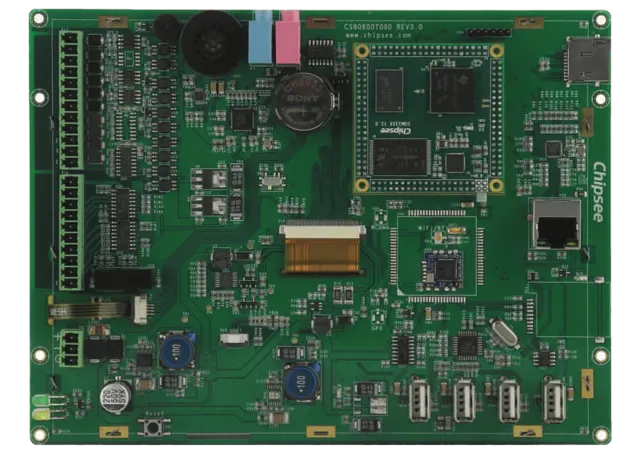

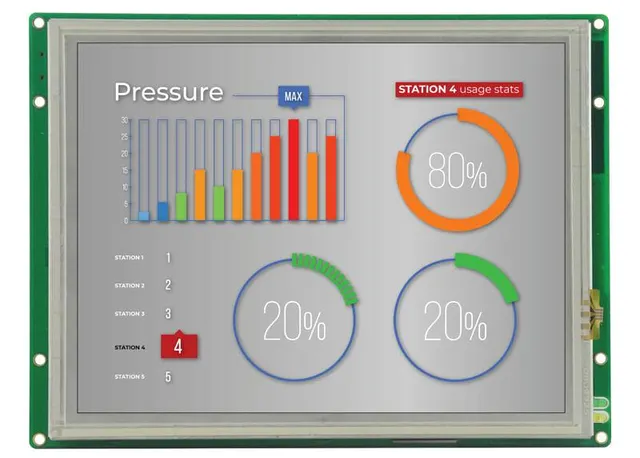

The EPC-A8-080-R is a Chipsee embedded panel PC for industrial HMI, control and connected edge applications. Built around AM3354ZCZ100, Arm® Cortex®-A8, 1GHz, it combines 512MB DDR3 with TF Card, Supports up to 32GB SDHC. The configuration includes 8.0” LCD, 800 x 600 resolution px, brightness 250 cd/m2 and Resistive touch. 1 x Channel 100M LAN helps connect the unit to the wider system.
ProcessorAM3354ZCZ100, Arm® Cortex®-A8, 1GHz
Display8.0” LCD, 800 x 600 resolution px, brightness 250 cd/m2
TouchResistive touch
Memory512MB DDR3
StorageTF Card, Supports up to 32GB SDHC
Power inputFrom 6V to 42V
Full specification
Technical details
| CPU | AM3354ZCZ100, Arm® Cortex®-A8, 1GHz |
|---|---|
| RAM | 512MB DDR3 |
| eMMC | 4GB |
| Storage | TF Card, Supports up to 32GB SDHC |
| Display | 8.0” LCD, 800 x 600 resolution px, brightness 250 cd/m2 |
| Touch | Resistive touch |
| USB | 4 x USB 2.0 Host |
| LAN | 1 x Channel 100M LAN |
| Audio | 3.5mm output/input connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | Yes |
| RS232 | 2 x RS232 |
| RS485 | 2 x RS485 |
| CAN | 1 x CAN |
| GPIO | 8 Channels, 4 Input, 4 Output, 1000V DC Isolated |
| WiFi/BT | Onboard WiFi/BT (optional) |
| 3G/4G/LTE | Onboard 3G (optional) |
| Power Input | From 6V to 42V |
| Current at 12V | 400mA Max |
| Power Consumption | 6W Typical |
| Working Temperature | From -20°C to +70°C |
| Dimensions | EPC-A8-080-R (PN: CS80600T080E): 199 x 149 x 29mm; PPC-A8-080-R (PN: CS80600T080P): 226 x 175 x 31mm |
| Weight | EPC-A8-080-R (PN: CS80600T080E): 580g; PPC-A8-080-R (PN: CS80600T080P): 1070g |
| Mounting | EPC-A8-080-R (PN: CS80600T080E): Embedded; PPC-A8-080-R (PN: CS80600T080P): Panel |
Project inquiry
Planning with EPC-A8-080-R?
Tell us your quantity, application and timeline. We will help confirm the configuration and prepare a quote.
