STMicroelectronics Industrial PCs
PPC-A35-070
Part number: CS10600-STMP25-070P

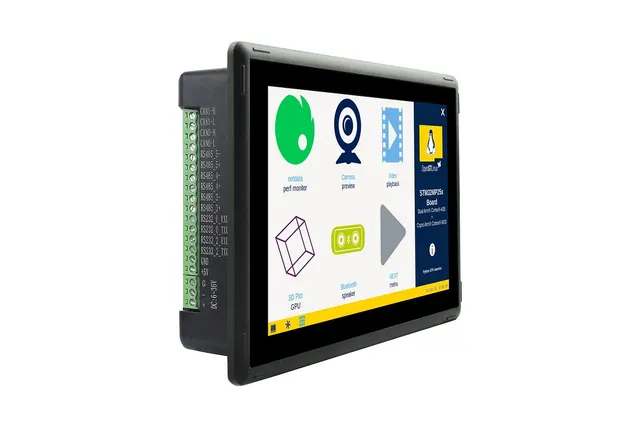

The PPC-A35-070 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around STM32MP257F, Dual(2)-core Cortex-A35 (1.5GHz), it combines DDR4 4GB with TF Card, Supports up to 128GB SDHC. The configuration includes 7” LCD, 1024 x 600, High Brightness: 400 cd/m2 and 5-point capacitive touch screen with 1mm tempered glass. It supports Yocto Linux. 2 x RJ45, GbE helps connect the unit to the wider system.
ProcessorSTM32MP257F, Dual(2)-core Cortex-A35 (1.5GHz)
Display7” LCD, 1024 x 600, High Brightness: 400 cd/m2
Touch5-point capacitive touch screen with 1mm tempered glass
MemoryDDR4 4GB
StorageTF Card, Supports up to 128GB SDHC
Operating systemYocto Linux
Full specification
Technical details
| CPU | STM32MP257F, Dual(2)-core Cortex-A35 (1.5GHz) |
|---|---|
| GPU | VeriSilicon GC8000UL - Open GL ES 3.2.8 - Vulkan 1.2, 900 MHz, up to 150 Mtriangle/s or 900 Mpixel/s |
| NPU | VeriSilicon GC8000UL - TensorFlowLite - ONNX - Linux NN, 900 MHz, 1.35 TOPS |
| RAM | DDR4 4GB |
| eMMC | 16GB |
| PCIe | Not supported |
| Storage | TF Card, Supports up to 128GB SDHC |

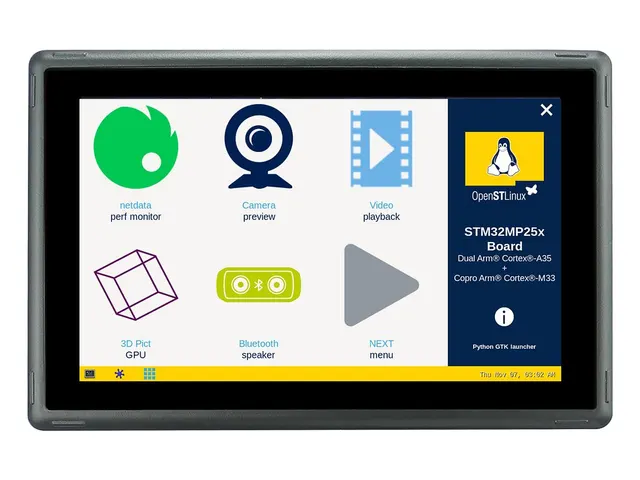

| Display | 7” LCD, 1024 x 600, High Brightness: 400 cd/m2 |
| Touch | 5-point capacitive touch screen with 1mm tempered glass |

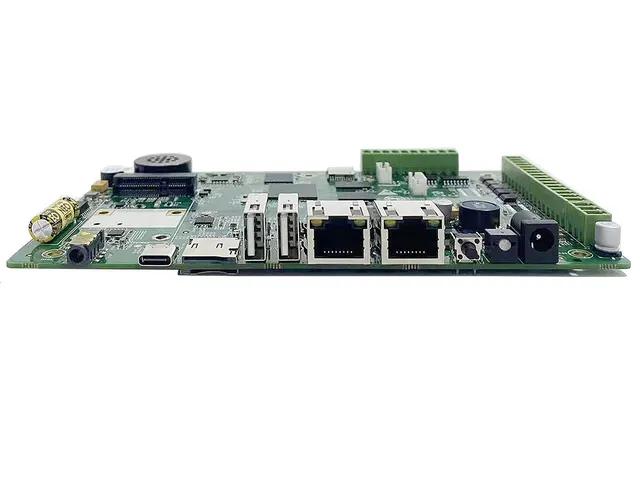

| USB | 2 x USB 2.0 HOST, 1 x USB Type-C |
| LAN | 2 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 1W Internal Speaker |
| Buzzer | Yes |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |

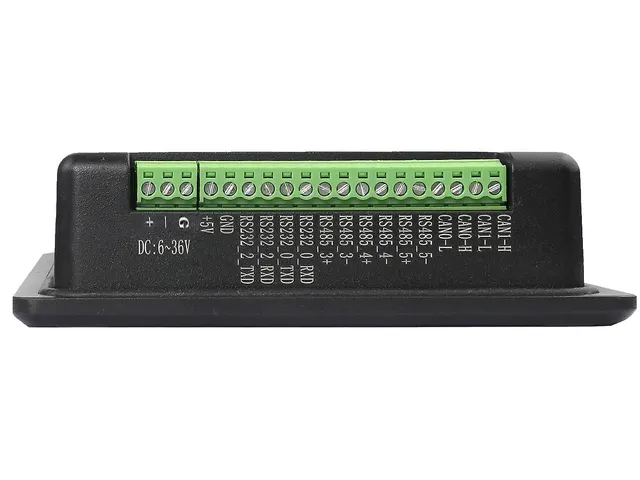

| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | default 3 x RS485 at most |
| CAN | default 2 x CAN FD (1 x CAN FD can be configured to RS232 optionally) |
| GPIO | 8 Channels Isolated IO, 4 x Input and 4 x Output |
| WiFi/BT | Integrated WiFi/BT Module |
| 4G/LTE | Supported, Optional |
| Power Input | From 9V to 30V |
| Current | 500mA Max at 12V |
| Power Consumption | 6W Max |
| Working Temperature | From -10°C to +60°C |
| OS | Yocto Linux |
| Dimensions | PPC-A35-070 (PN: CS10600-STMP25-070P): 188.05 x 123.11 x 33.20mm |
| Weight | PPC-A35-070 (PN: CS10600-STMP25-070P): 700g |
| Mounting | PPC-A35-070 (PN: CS10600-STMP25-070P): Panel, VESA |
