STMicroelectronics Industrial PCs

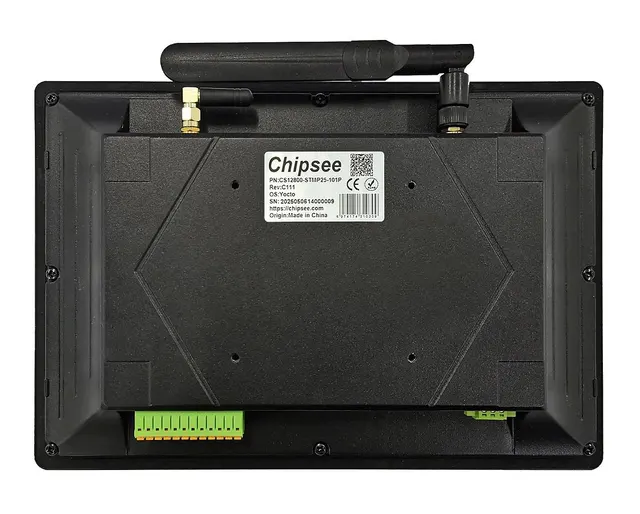

PPC-A35-101
Part number: CS12800-STMP25-101P
The PPC-A35-101 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around STM32MP257F, Dual(2)-core Cortex-A35 (1.5GHz), it combines DDR4 4GB with TF Card, Supports up to 128GB SDHC. The configuration includes 10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2 and 10-point capacitive touch screen with 1mm tempered glass. It supports Yocto Linux. 1 x RJ45, GbE, optional Power over Ethernet (PoE) port helps connect the unit to the wider system.
ProcessorSTM32MP257F, Dual(2)-core Cortex-A35 (1.5GHz)
Display10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2
Touch10-point capacitive touch screen with 1mm tempered glass
MemoryDDR4 4GB
StorageTF Card, Supports up to 128GB SDHC
Operating systemYocto Linux
Full specification
Technical details
| CPU | STM32MP257F, Dual(2)-core Cortex-A35 (1.5GHz) |
|---|---|
| GPU | VeriSilicon GC8000UL - Open GL ES 3.2.8 - Vulkan 1.2, 900 MHz, up to 150 Mtriangle/s or 900 Mpixel/s |
| NPU | VeriSilicon GC8000UL - TensorFlowLite - ONNX - Linux NN, 900 MHz, 1.35 TOPS |
| RAM | DDR4 4GB |
| eMMC | 16GB |
| PCIe | 1 x PCIe2.0 x1, M.2 M-Key 2230/2242/2260/2280 socket (optional) |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display | 10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2 |
| Touch | 10-point capacitive touch screen with 1mm tempered glass |
| USB | 2 x USB 2.0 HOST, 1 x USB Type-C |
| LAN | 1 x RJ45, GbE, optional Power over Ethernet (PoE) port |
| Audio | 3.5mm Audio In/Out Connector, 1W Internal Speaker |
| Buzzer | Yes |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, including 1 debug port) |
| RS485 | default 2 x RS485 (Optional 3 x RS485 at most) |
| CAN | default 2 x CAN FD (2 x CAN FD can be configured to RS232 optionally or 1 x CAN FD can be configured to RS485 optionally) |
| GPIO | 8 Channels Isolated IO, 4 x Input and 4 x Output |
| WiFi/BT | Integrated WiFi/BT Module |
| 4G/LTE | Supported, Optional |
| Power Input | From 15V to 30V (supports optional 24V ignition signal) |
| Current | 500mA max at 15V, 400mA typical at 15V |
| Power Consumption | 7.5W max, 6W typical |
| Working Temperature | From -20°C to +70°C |
| OS | Yocto Linux |
| Dimensions | PPC-A35-101 (PN: CS12800-STMP25-101P): 275.5 x 193.5 x 46.0mm |
| Weight | PPC-A35-101 (PN: CS12800-STMP25-101P): 1300g |
| Mounting | PPC-A35-101 (PN: CS12800-STMP25-101P): Panel, VESA |
