PPC-A8-070H-C
Part number: CS10600T070P
The PPC-A8-070H-C is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around AM3354ZCZ100, Arm® Cortex®-A8, 1GHz, it combines 512MB DDR3 with TF Card, Supports up to 32GB SDHC. The configuration includes 7.0” LCD, 1024 x 600 resolution px, brightness 500 cd/m2 and 5-point capacitive touch with 1mm tempered glass / 5-point resistive touch with 1.5mm tempered glass. 1 x Channel 100M LAN helps connect the unit to the wider system.
ProcessorAM3354ZCZ100, Arm® Cortex®-A8, 1GHz
Display7.0” LCD, 1024 x 600 resolution px, brightness 500 cd/m2
Touch5-point capacitive touch with 1mm tempered glass / 5-point resistive touch with 1.5mm tempered glass
Memory512MB DDR3
StorageTF Card, Supports up to 32GB SDHC
Power inputFrom 6V to 42V
Full specification
Technical details
| CPU | AM3354ZCZ100, Arm® Cortex®-A8, 1GHz |
|---|---|
| RAM | 512MB DDR3 |
| eMMC | 4GB |
| Storage | TF Card, Supports up to 32GB SDHC |

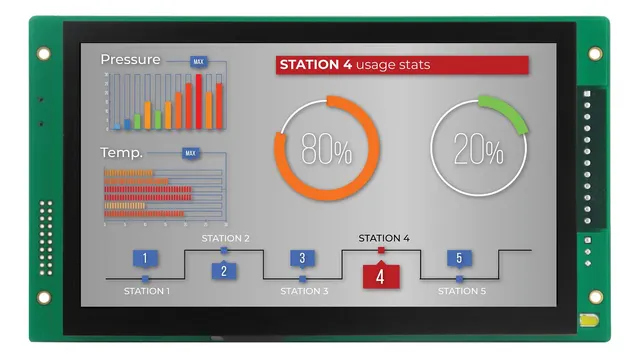

| Display | 7.0” LCD, 1024 x 600 resolution px, brightness 500 cd/m2 |
| Touch | 5-point capacitive touch with 1mm tempered glass / 5-point resistive touch with 1.5mm tempered glass |
| USB | 2 x USB 2.0 Host |
| LAN | 1 x Channel 100M LAN |
| Audio | 3.5mm output/input connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | Yes |
| RS232 | 2 x RS232 |
| RS485 | 2 x RS485 |
| CAN | 1 x CAN |
| GPIO | 8 Channels |
| WiFi/BT | Onboard WiFi/BT (optional) |
| Expansion Port | 1 x 20-pin (PCB Footprint) |
| Power Input | From 6V to 42V |
| Current at 12V | 600mA Max |
| Power Consumption | 6W Typical |
| Working Temperature | From -20°C to +70°C |

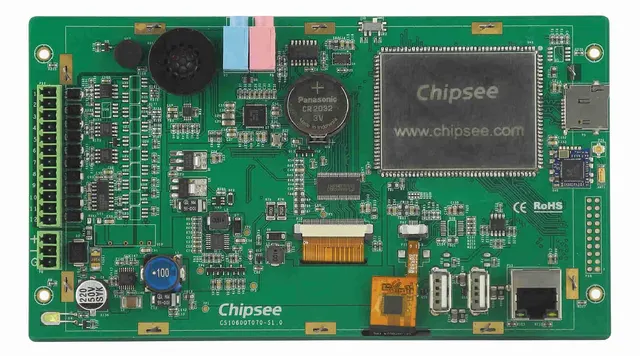

| Dimensions | EPC-A8-070H-C (PN: CS10600T070E): 190 x 107.8 x 29mm; PPC-A8-070H-C (PN: CS10600T070P): 206 x 135 x 29.8mm |
| Weight | EPC-A8-070H-C (PN: CS10600T070E): 340g; PPC-A8-070H-C (PN: CS10600T070P): 680g |
| Mounting | EPC-A8-070H-C (PN: CS10600T070E): Embedded; PPC-A8-070H-C (PN: CS10600T070P): Panel |
