Rockchip Industrial PCs
AIO-PX30-101

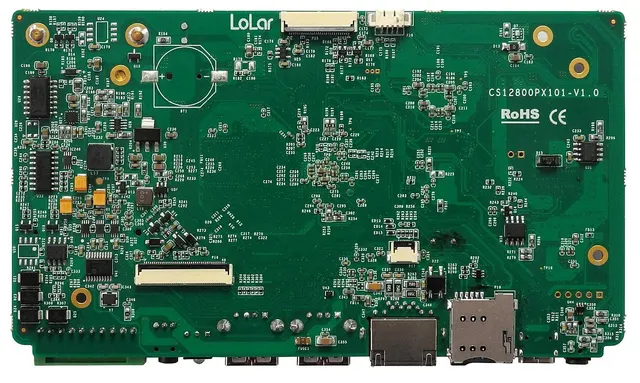

Part number: CS12800PX101A
The AIO-PX30-101 is a Chipsee all-in-one computer for industrial HMI, control and connected edge applications. Built around Rockchip PX30, Quad Cortex-A35 at 1.5GHz, it combines 1GB DDR with 1 x TF card slot designed for storage expansion. The configuration includes 10.1” IPS LCD, 1280 x 800 resolution px, brightness 350 cd/m2 and 10-point capacitive touch with 1.0mm Armored Glass. It supports Android, Debian. 1 x Channel 100Mbps LAN helps connect the unit to the wider system.
ProcessorRockchip PX30, Quad Cortex-A35 at 1.5GHz
Display10.1” IPS LCD, 1280 x 800 resolution px, brightness 350 cd/m2
Touch10-point capacitive touch with 1.0mm Armored Glass
Memory1GB DDR
Storage1 x TF card slot designed for storage expansion
Operating systemAndroid, Debian
Full specification
Technical details
| CPU | Rockchip PX30, Quad Cortex-A35 at 1.5GHz |
|---|---|
| Storage | 1 x TF card slot designed for storage expansion |
| RAM | 1GB DDR |
| eMMC | 8GB |
| Display | 10.1” IPS LCD, 1280 x 800 resolution px, brightness 350 cd/m2 |
| Touch | 10-point capacitive touch with 1.0mm Armored Glass |
| USB | 2 x USB 2.0 Host, 1 x mini USB OTG |
| LAN | 1 x Channel 100Mbps LAN |
| Audio | Mic input on the front panel, 2W internal stereo speaker, 3.5mm audio In/Out connector |
| Buzzer | Internal Buzzer |
| RTC | Yes, High accuracy internal RTC (keep track of time one week after power off) |
| RS232 | 1 x RS232 default, 2 Channels at most. |
| RS485 | 1 x RS485 default, 2 Channels at most. The RS485 circuit automatically controls the Input and Output direction (no need for software control) |
| CAN | 1 x CAN Bus. |
| Relay | 1 x relay with “Normally Connected” and “Normally Open” output |
| WiFi/BT | WiFi/BT module |
| ZIGBEE | Internal Zigbee supported, not mounted by default |
| 4G/LTE | Internal 4G/LTE module supported, not mounted by default |
| Power Input | 12V DC |
| Current at 12V | 500mA Max |
| Power Consumption | 6W Typical |
| Working Temperature | From 0°C to +50°C |
| OS | Android, Debian |
| Dimensions | 260.54 x 178.54 x 26.9mm |
| Weight | 620g |
| Plastic Case Color | Black, White |
| Certification | CE, ROHS |
