Rockchip Industrial PCs
PPC-RK3576-101
Part number: CS12800-RK3576-101P

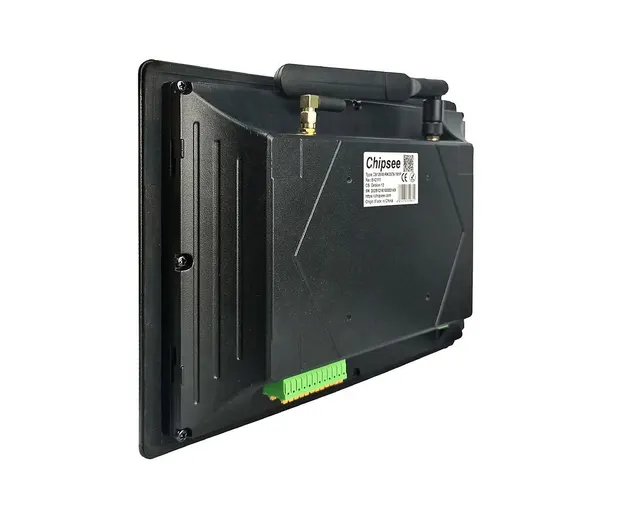

The PPC-RK3576-101 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rockchip RK3576J, Quad-core Cortex-A72 (1.6GHz) + Quad-core Cortex-A53 (1.4GHz), it combines 4GB LPDDR5 with TF Card, Supports up to 128GB SDHC. The configuration includes 10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2 and 10-point capacitive touch screen with 1mm Armored Glass. It supports Android 14, Debian12, Buildroot Linux Qt 5.15. 1 x RJ45, GbE helps connect the unit to the wider system.
ProcessorRockchip RK3576J, Quad-core Cortex-A72 (1.6GHz) + Quad-core Cortex-A53 (1.4GHz)
Display10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2
Touch10-point capacitive touch screen with 1mm Armored Glass
Memory4GB LPDDR5
StorageTF Card, Supports up to 128GB SDHC
Operating systemAndroid 14, Debian12, Buildroot Linux Qt 5.15
Full specification
Technical details
| CPU | Rockchip RK3576J, Quad-core Cortex-A72 (1.6GHz) + Quad-core Cortex-A53 (1.4GHz) |
|---|---|
| GPU | ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding |
| RAM | 4GB LPDDR5 |
| NPU | 6 TOPS(Sparsity)@INT8 |
| eMMC | 64GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| PCIe | Optional, supports M.2 M-Key 2230/2242/2260/2280 (PCI-E 3.0 x1) module |
| Display | 10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2 |
| Touch | 10-point capacitive touch screen with 1mm Armored Glass |
| HDMI | 1 x HDMI OUT |
| USB | 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C (USB3.0 port and USB-C port cannot be used at the same time) |
| LAN | 1 x RJ45, GbE |
| POE | Optional, Power Over Ethernet 802.3af/at |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| RS232 | Default to 2 x RS232 (including 1 debug port). Up to 6 x RS232. |
| RS485 | Default to 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232. |
| CAN | Default to 2 x CAN FD. Optionally, these 2 x CAN FD can be configured to RS232. |
| GPIO | 8 Channels Isolated IO, 4 x Input and 4 x Output |
| WiFi/BT | Integrated WiFi/BT Module |
| 4G/LTE | Supported, Optional |
| Power Input | From 15V to 30V (supports optional 24V ignition signal) |
| Current | 600mA Max at 15V |
| Power Consumption | 7.5W Typical |
| Working Temperature | From -20°C to +70°C |
| OS | Android 14, Debian12, Buildroot Linux Qt 5.15 |
| Dimensions | PPC-RK3576-101 (PN: CS12800-RK3576-101P): 275.5 x 193.5 x 46.0mm |
| Weight | PPC-RK3576-101 (PN: CS12800-RK3576-101P): 1300g |
| Mounting | PPC-RK3576-101 (PN: CS12800-RK3576-101P): Panel, VESA |
