AIO-RK3576-101
Part number: CS12800-RK3576-101A

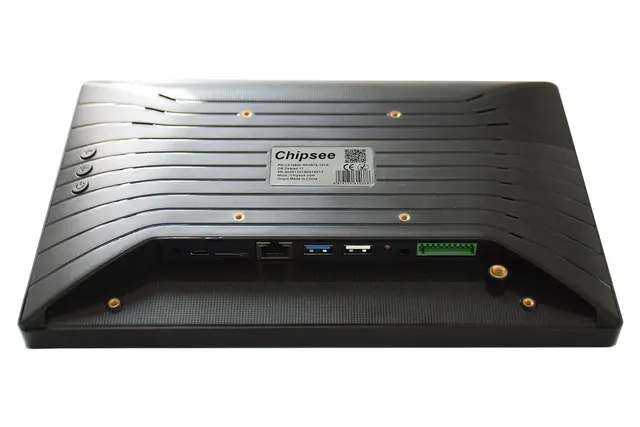

The AIO-RK3576-101 is a Chipsee all-in-one computer for industrial HMI, control and connected edge applications. Built around Rockchip RK3576J, Quad-core Cortex-A72 (1.6GHz) + Quad-core Cortex-A53 (1.4GHz), it combines 4GB LPDDR5 with Internal M.2 NVMe connector for SSD (optional), MicroSD Card. The configuration includes 10.1” IPS LCD, 1280 x 800 px, brightness 400 cd/m2 and 10-point capacitive touch with 1.0mm Armored Glass. It supports Debian 12. 1 x Giga LAN (no support for PoE) helps connect the unit to the wider system.
ProcessorRockchip RK3576J, Quad-core Cortex-A72 (1.6GHz) + Quad-core Cortex-A53 (1.4GHz)
Display10.1” IPS LCD, 1280 x 800 px, brightness 400 cd/m2
Touch10-point capacitive touch with 1.0mm Armored Glass
Memory4GB LPDDR5
StorageInternal M.2 NVMe connector for SSD (optional), MicroSD Card
Operating systemDebian 12
Full specification
Technical details
| CPU | Rockchip RK3576J, Quad-core Cortex-A72 (1.6GHz) + Quad-core Cortex-A53 (1.4GHz) |
|---|---|
| RAM | 4GB LPDDR5 |
| eMMC | 64GB |
| Storage | Internal M.2 NVMe connector for SSD (optional), MicroSD Card |
| M2 | M.2 2230/2242 M-key, PCIe Gen 3.0 x1 (optional) |
| MicroSD card | 1 x TF(micro SD) card slot |
| NPU | 6 TOPS(Sparsity)@INT8 |
| Display | 10.1” IPS LCD, 1280 x 800 px, brightness 400 cd/m2 |
| Touch | 10-point capacitive touch with 1.0mm Armored Glass |
| USB | 1 x USB 3.0 type-A Host, 1 x USB 2.0 type-A Host, 1 x USB type-C OTG (USB-C can’t be used together with USB-A 3.0 port) |
| LAN | 1 x Giga LAN (no support for PoE) |
| Audio | 3.5mm Audio In/Out Connector, 2W Speaker Internal, Internal Front Microphone |
| Buzzer | Onboard Buzzer, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| WiFi/BT | Integrated WiFi/BT Module |
| Power Input | 15V to 30V DC |
| Current | 600mA max at 15V, 500mA typical at 15V |
| Power Consumption | 9W Max, 7.5W typical |
| Relay | 1 x relay with “Normally Connected” and “Normally Open” output |
| RS232 | 2 x RS232 |
| RS485 | Default 1 x RS485; up to 2 x RS485 (optional) |
| CAN | Default 0 x CAN; Optional 1 x CAN FD BUS. Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps |
| 3G/4G/LTE/GPS | Internal 4G/LTE module supported, not mounted by default |
| Working Temperature | From -20°C to +70°C |
| OS | Debian 12 |
| Dimensions | 260.54 x 178.54 x 26.9mm |
| Weight | 620g |
| Mounting | VESA, Stand |
| Plastic Case Color | Black / White |
| Certification | CE, ROHS |
