NXP Industrial PCs
EPC-A9-070-C
Part number: CS10600F070E

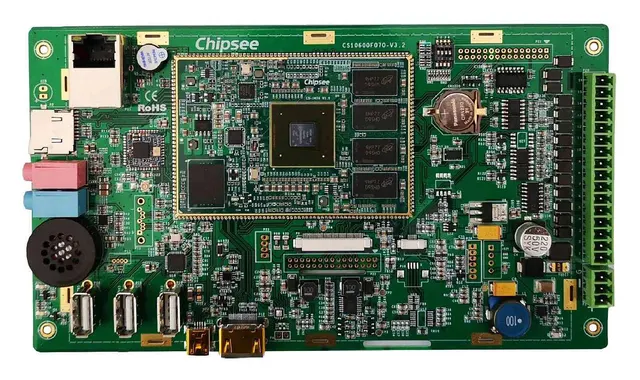

The EPC-A9-070-C is a Chipsee embedded panel PC for industrial HMI, control and connected edge applications. Built around iMX6Q, Arm® Cortex®-A9, 1GHz, it combines 2GB DDR3 with TF Card, Supports up to 32GB SDHC. The configuration includes 7.0” LCD, 1024 x 600, High Brightness: 500cd/m2 and Capacitive Multi-Point Touch Screen. 1 x RJ45, GbE helps connect the unit to the wider system.
ProcessoriMX6Q, Arm® Cortex®-A9, 1GHz
Display7.0” LCD, 1024 x 600, High Brightness: 500cd/m2
TouchCapacitive Multi-Point Touch Screen
Memory2GB DDR3
StorageTF Card, Supports up to 32GB SDHC
Power inputFrom 6V to 36V
Full specification
Technical details
| CPU | iMX6Q, Arm® Cortex®-A9, 1GHz |
|---|---|
| RAM | 2GB DDR3 |
| eMMC | 8GB |
| Storage | TF Card, Supports up to 32GB SDHC |

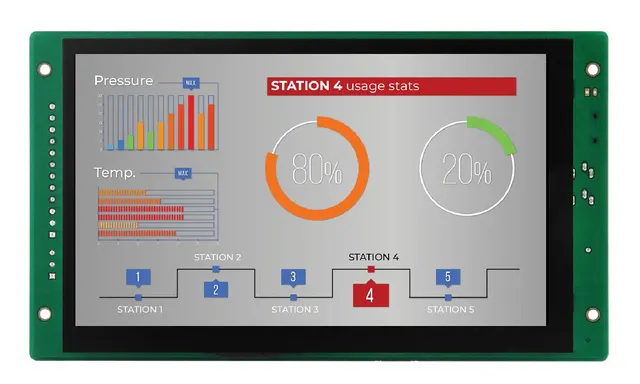

| Display | 7.0” LCD, 1024 x 600, High Brightness: 500cd/m2 |
| Touch | Capacitive Multi-Point Touch Screen |
| USB | 3 x USB 2.0 HOST, 1 x USB OTG |
| LAN | 1 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Yes |
| RTC | Yes, Powered by CR2032 Button Battery |
| RS232 | 2 x RS232 |
| RS485 | 2 x RS485 |
| CAN | 2 x CAN |
| WiFi/BT | Integrated WiFi/BT Module |
| HDMI | 1 x HDMI |
| SATA | 1 x SATA II |
| Expansion Port | 1 x 30-pin, 2.54mm DIL Header (PCB Footprint) |
| Power Input | From 6V to 36V |
| Current at 15V | 600mA Max |
| Power Consumption | 6W Typical |
| Working Temperature | From -20°C to +70°C |

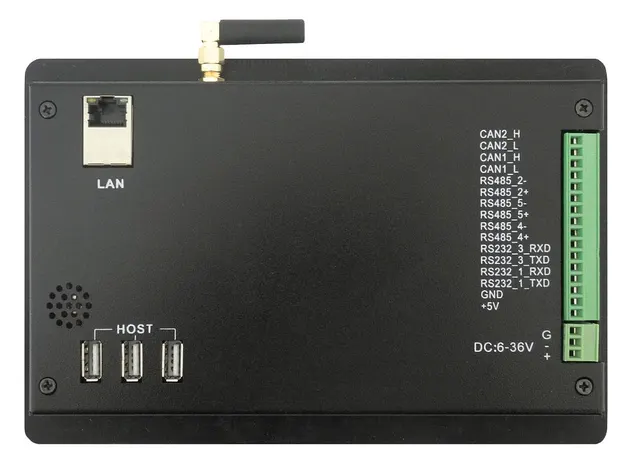

| Dimensions | EPC-A9-070-C (PN: CS10600F070E): 190 x 107.8 x 27.7mm; PPC-A9-070-C (PN: CS10600F070P): 206 x 135 x 30.1mm |
| Weight | EPC-A9-070-C (PN: CS10600F070E): 380g; PPC-A9-070-C (PN: CS10600F070P): 680g |
| Mounting | EPC-A9-070-C (PN: CS10600F070E): Embedded; PPC-A9-070-C (PN: CS10600F070P): Panel |
