EPC-A9-097-C

NXP Industrial PCs

EPC-A9-097-C

Part number: CS10768F097E

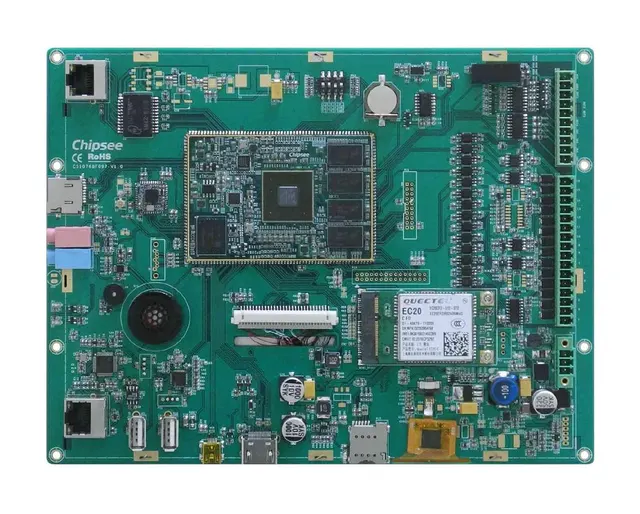

The EPC-A9-097-C is a Chipsee embedded panel PC for industrial HMI, control and connected edge applications. Built around iMX6Q, Arm® Cortex®-A9, 1GHz, it combines 2GB DDR3 with TF Card, Supports up to 32GB SDHC. The configuration includes 9.7” LCD, 1024 x 768, High Brightness: 500cd/m2 and Capacitive Multi-Point Touch Screen. 2 x RJ45: 1 x GbE, Optional PoE Support; 1 x 100Mbps, Optional helps connect the unit to the wider system.

ProcessoriMX6Q, Arm® Cortex®-A9, 1GHz
Display9.7” LCD, 1024 x 768, High Brightness: 500cd/m2
TouchCapacitive Multi-Point Touch Screen
Memory2GB DDR3
StorageTF Card, Supports up to 32GB SDHC
Power inputFrom 12V to 36V
Request project quoteTechnical docs

Full specification

Technical details

CPUiMX6Q, Arm® Cortex®-A9, 1GHz
RAM2GB DDR3
eMMC8GB
StorageTF Card, Supports up to 32GB SDHC
Display9.7” LCD, 1024 x 768, High Brightness: 500cd/m2
TouchCapacitive Multi-Point Touch Screen
USB2 x USB 2.0 HOST, 1 x USB OTG
LAN2 x RJ45: 1 x GbE, Optional PoE Support; 1 x 100Mbps, Optional
Audio3.5mm Audio In/Out Connector, Internal 2W Speaker
BuzzerYes
RTCYes, Powered by CR2032 Button Battery
RS2322 x RS232
RS4853 x RS485
CAN2 x CAN
GPIO8 x General Purpose I/O (GPIO) channels
WiFi/BTIntegrated WiFi/BT Module
HDMI1 x HDMI
SATA1 x SATA II
4G/LTEOptional, Not mounted by default
Power InputFrom 12V to 36V
Current at 15V600mA Max (w/o 4G Module)
Power Consumption7W Typical
Working TemperatureFrom -20°C to +70°C
DimensionsEPC-A9-097-C (PN: CS10768F097E): 226 x 172 x 26mm; PPC-A9-097-C (PN: CS10768F097P): 256 x 207 x 29mm
WeightEPC-A9-097-C (PN: CS10768F097E): 550g; PPC-A9-097-C (PN: CS10768F097P): 1370g

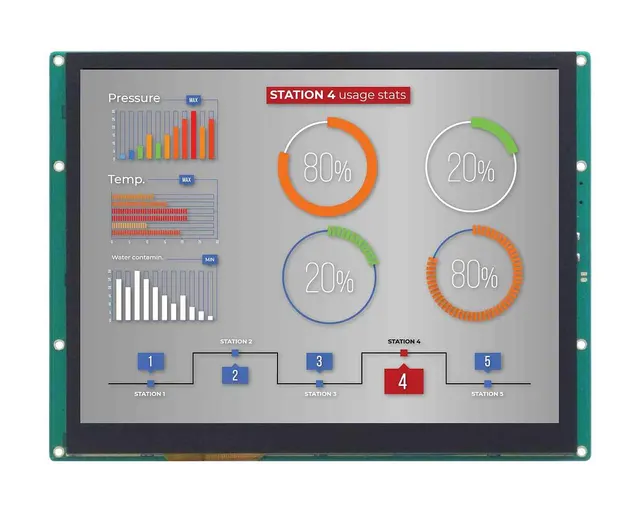

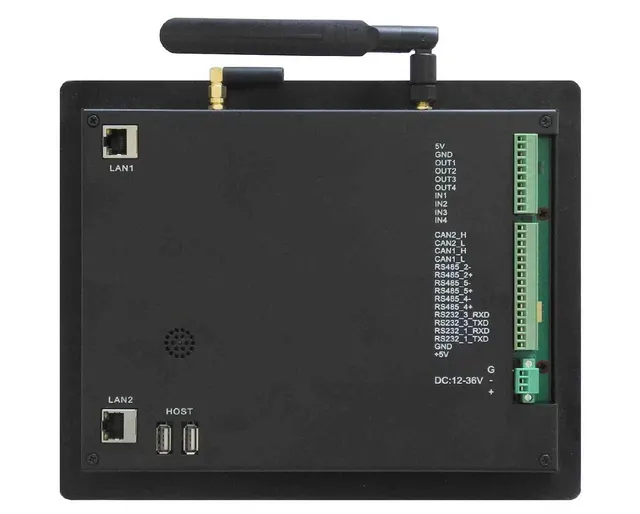

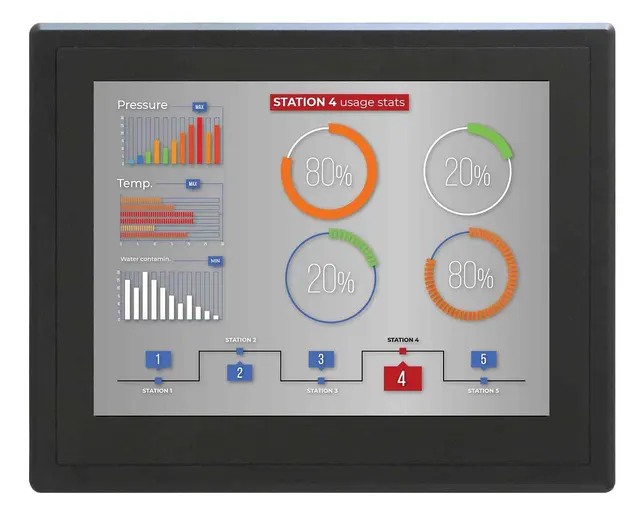

MountingEPC-A9-097-C (PN: CS10768F097E): Embedded; PPC-A9-097-C (PN: CS10768F097P): Panel
