NXP Industrial PCs

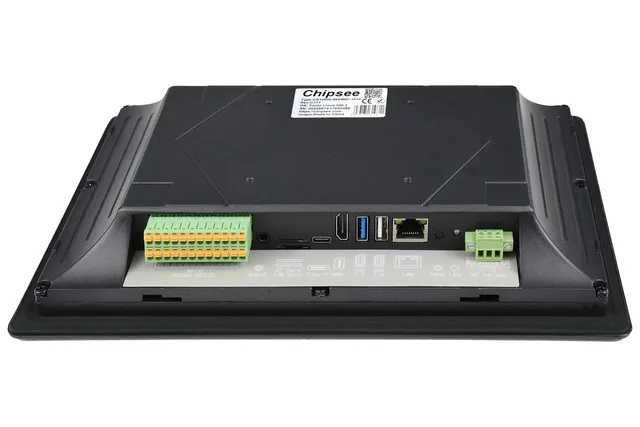

PPC-A53-101
Part number: CS12800-IMX8MP-101P
The PPC-A53-101 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around NXP i.MX8MP, Quad(4)-core Cortex-A53 (1.6GHz), it combines LPDDR4 4GB with TF Card, Supports up to 128GB SDHC. The configuration includes 10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2 and 10-point capacitive touch screen. It supports Android 12, Yocto Linux Qt 6.3. 1 x RJ45, GbE helps connect the unit to the wider system.
ProcessorNXP i.MX8MP, Quad(4)-core Cortex-A53 (1.6GHz)
Display10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2
Touch10-point capacitive touch screen
MemoryLPDDR4 4GB
StorageTF Card, Supports up to 128GB SDHC
Operating systemAndroid 12, Yocto Linux Qt 6.3
Full specification
Technical details
| CPU | NXP i.MX8MP, Quad(4)-core Cortex-A53 (1.6GHz) |
|---|---|
| RAM | LPDDR4 4GB |
| eMMC | 32GB |
| SSD | Not supported |
| Storage | TF Card, Supports up to 128GB SDHC |
| HDMI | 1 x HDMI OUT |
| Display | 10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2 |
| Touch | 10-point capacitive touch screen |
| USB | 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C |
| LAN | 1 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| RS232 | Default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | Default to 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232. |
| CAN | Default to 2 x CAN. Optionally, these 2 x CAN can be configured to RS232. |
| GPIO | 8 Channels Isolated IO, 4 x Input and 4 x Output |
| WiFi/BT | Integrated WiFi/BT Module (Bluetooth is functional on Yocto Linux, not functional on Android) |
| 4G/LTE | Supported, Optional |
| Power Input | From 12V to 36V |
| Current | Max brightness, max CPU load: 0.97A at 12V; Min brightness, idle: 0.58A at 12V. |
| Power Consumption | Max brightness, max CPU load: 11.64W; Min brightness, idle: 6.96W. |
| Working Temperature | From -20°C to +70°C |
| OS | Android 12, Yocto Linux Qt 6.3 |
| Dimensions | 275.5 x 193.5 x 46.0mm |
| Weight | 1300g |
| Mounting | Panel, VESA |
