NXP Industrial PCs
PPC-A53-070

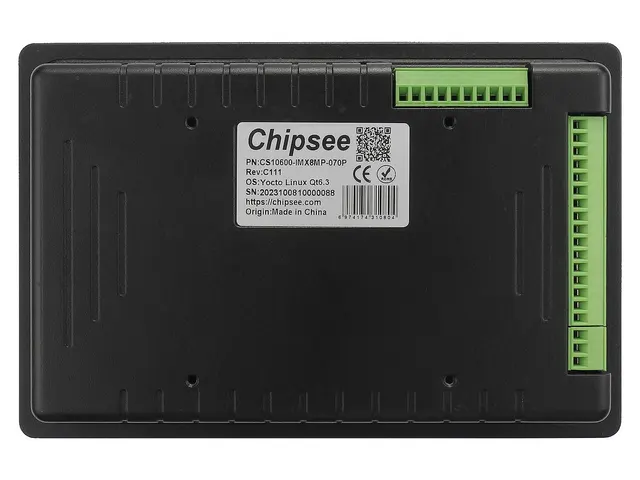

Part number: CS10600-IMX8MP-070P
The PPC-A53-070 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around NXP i.MX8MP, Quad(4)-core Cortex-A53 (1.6GHz), it combines LPDDR4 4GB with TF Card, Supports up to 128GB SDHC. The configuration includes 7” LCD, 1024 x 600, High Brightness: 400 cd/m2 and 5-point capacitive touch screen with 1mm tempered glass. It supports Android 12, Yocto Linux Qt 6.3. 2 x RJ45, GbE helps connect the unit to the wider system.
ProcessorNXP i.MX8MP, Quad(4)-core Cortex-A53 (1.6GHz)
Display7” LCD, 1024 x 600, High Brightness: 400 cd/m2
Touch5-point capacitive touch screen with 1mm tempered glass
MemoryLPDDR4 4GB
StorageTF Card, Supports up to 128GB SDHC
Operating systemAndroid 12, Yocto Linux Qt 6.3
Full specification
Technical details
| CPU | NXP i.MX8MP, Quad(4)-core Cortex-A53 (1.6GHz) |
|---|---|
| RAM | LPDDR4 4GB |
| eMMC | 32GB |
| SSD | Not supported |
| Storage | TF Card, Supports up to 128GB SDHC |

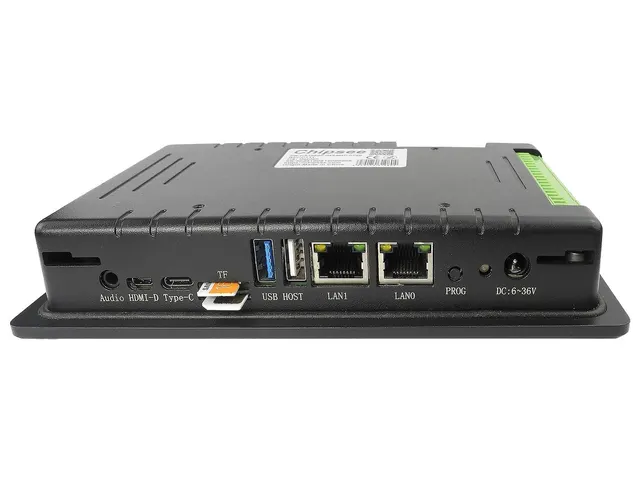

| HDMI | 1 x HDMI-D(Micro HDMI) OUT |
| Display | 7” LCD, 1024 x 600, High Brightness: 400 cd/m2 |
| Touch | 5-point capacitive touch screen with 1mm tempered glass |
| USB | 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C |
| LAN | 2 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |

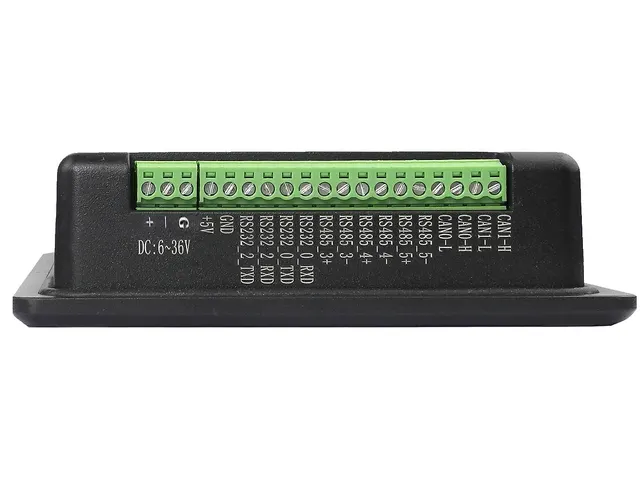

| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | default 3 x RS485 at most |
| CAN | default 2 x CAN (1 x CAN can be configured to RS232 optionally) |
| GPIO | 8 Channels Isolated IO, 4 x Input and 4 x Output |
| WiFi/BT | Integrated WiFi/BT Module (Bluetooth is functional on Yocto Linux, not functional on Android) |
| 4G/LTE | Supported, Optional |
| Power Input | From 6V to 36V |
| Current | 600mA Max at 12V, 450mA Idle at 12V |
| Power Consumption | 7.2W Max, 5.4W Idle (Maximum brightness) |
| Working Temperature | From -10°C to +60°C |
| OS | Android 12, Yocto Linux Qt 6.3 |
| Dimensions | 188.05 x 123.11 x 33.20mm |
| Weight | 610g |
| Mounting | Panel, VESA |
