PPC-A7-070HB-C
Part number: CS10600U070P

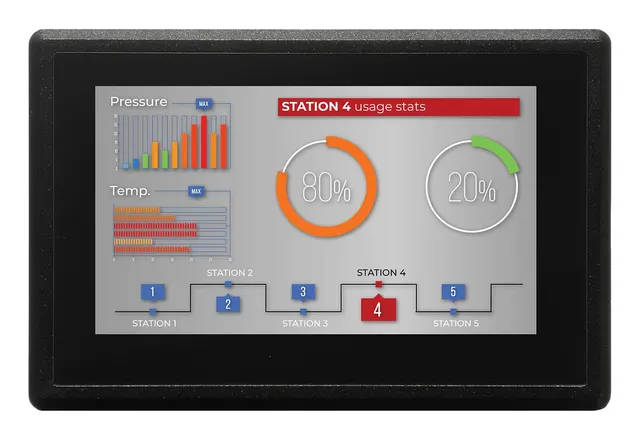

The PPC-A7-070HB-C is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around i.MX6UL, Arm® Cortex®-A7, 528MHz, it combines 512MB DDR3 with TF card supports up to 32GB SDHC. The configuration includes 7.0” LCD, 1024 x 600 , High Brightness: 500cd/m2 and Capacitive Touch (Five-Point). It supports Linux, Debian. 1 x RJ45, up to 100Mbps helps connect the unit to the wider system.
Processori.MX6UL, Arm® Cortex®-A7, 528MHz
Display7.0” LCD, 1024 x 600 , High Brightness: 500cd/m2
TouchCapacitive Touch (Five-Point)
Memory512MB DDR3
StorageTF card supports up to 32GB SDHC
Operating systemLinux, Debian
Full specification

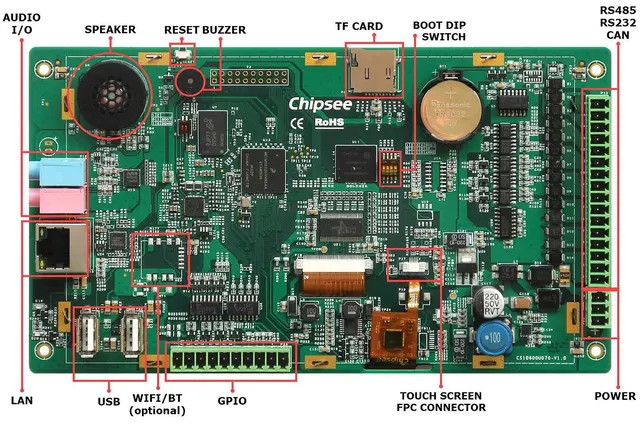

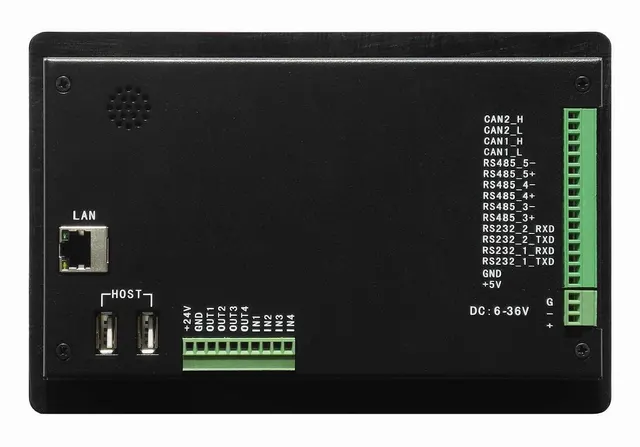

Technical details
| CPU | i.MX6UL, Arm® Cortex®-A7, 528MHz |
|---|---|
| RAM | 512MB DDR3 |
| eMMC | 4GB |
| Storage | TF card supports up to 32GB SDHC |
| Display | 7.0” LCD, 1024 x 600 , High Brightness: 500cd/m2 |
| Touch | Capacitive Touch (Five-Point) |
| USB | 2 x USB 2.0 Host |
| LAN | 1 x RJ45, up to 100Mbps |
| Audio | 3.5mm Audio In/Out Connectors, Internal 2W Speaker |
| Buzzer | Yes |
| RTC | Yes, Powered by CR2032 Button Battery |
| RS232 | 2 x RS232 |
| RS485 | 3 x RS485 |
| CAN | 2 x CAN |
| GPIO | 4 x Input, 4 x Output, PSU, Isolated |
| WiFi/BT | Optional On-Board WiFi (RTL8723) |
| Power Input | From 6V to 36V |
| Current at 12V | 500mA Max |
| Power Consumption | 5W Typical |
| Working Temperature | -20°C to +70°C |
| OS | Linux, Debian |
| Dimensions | EPC-A7-070HB-C (CS10600U070E): 190 x 112 x 28mm; PPC-A7-070HB-C (CS10600U070P): 205 x 135 x 28mm |
| Weight | EPC-A7-070HB-C (CS10600U070E): 340g; PPC-A7-070HB-C (CS10600U070P): 730g |

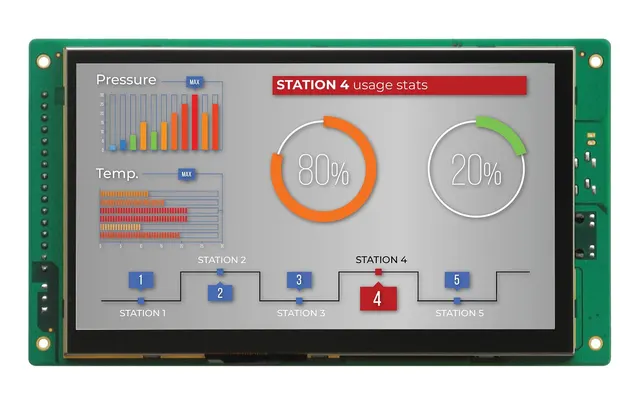

| Mounting | EPC-A7-070HB-C (CS10600U070E): Embedded; PPC-A7-070HB-C (CS10600U070P): Panel |
