PPC-A9-101-C

Name: PPC-A9-101-C
Brand: Chipsee
SKU: CS12800F101P

Part number: CS12800F101P

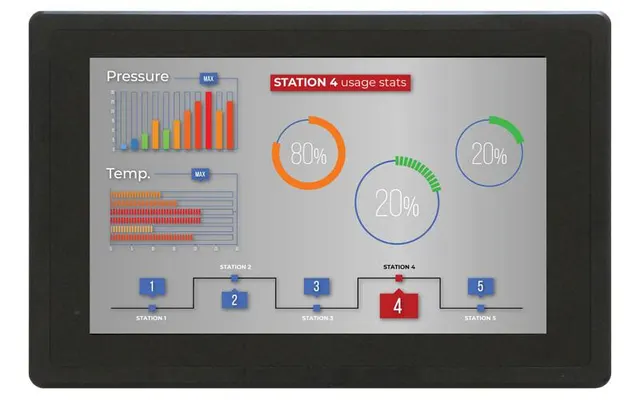

The PPC-A9-101-C is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around iMX6Q, Arm® Cortex®-A9, 1GHz, it combines 2GB DDR3 with TF Card, Supports up to 32GB SDHC. The configuration includes 10.1” LCD, 1280 x 800, High Brightness: 500cd/m2 and Capacitive Multi-Point Touch Screen with 1mm tempered glass. 2 x RJ45: 1 x GbE, Optional PoE Support; 1 x 100Mbps, Optional helps connect the unit to the wider system.

ProcessoriMX6Q, Arm® Cortex®-A9, 1GHz

Display10.1” LCD, 1280 x 800, High Brightness: 500cd/m2

TouchCapacitive Multi-Point Touch Screen with 1mm tempered glass

Memory2GB DDR3

StorageTF Card, Supports up to 32GB SDHC

Power inputFrom 12V to 36V

Request project quote Technical docs

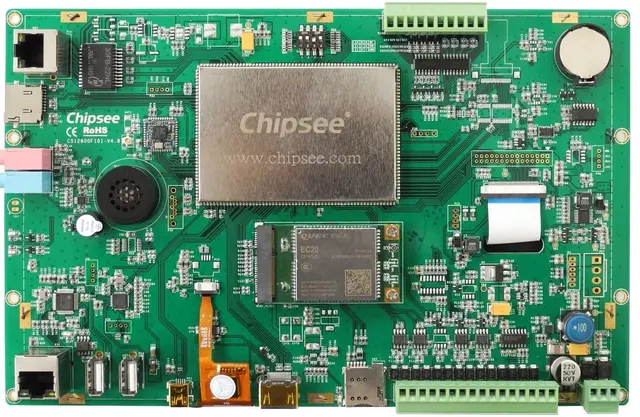

Full specification

Technical details

CPU	iMX6Q, Arm® Cortex®-A9, 1GHz
RAM	2GB DDR3
eMMC	8GB
Storage	TF Card, Supports up to 32GB SDHC
Display	10.1” LCD, 1280 x 800, High Brightness: 500cd/m2
Touch	Capacitive Multi-Point Touch Screen with 1mm tempered glass
USB	2 x USB 2.0 HOST, 1 x USB OTG
LAN	2 x RJ45: 1 x GbE, Optional PoE Support; 1 x 100Mbps, Optional
Audio	3.5mm Audio In/Out Connector, Internal 2W Speaker
Buzzer	Yes
RTC	Yes, Powered by CR2032 Button Battery
RS232	2 x RS232
RS485	3 x RS485
CAN	2 x CAN
GPIO	8 x General Purpose I/O (GPIO) channels
WiFi/BT	Integrated WiFi/BT Module
HDMI	1 x HDMI
SATA	1 x SATA II
4G/LTE	Optional, Not mounted by default
Power Input	From 12V to 36V
Current at 15V	600mA Max (w/o 4G Module)
Power Consumption	7W Typical
Working Temperature	From -20°C to +70°C

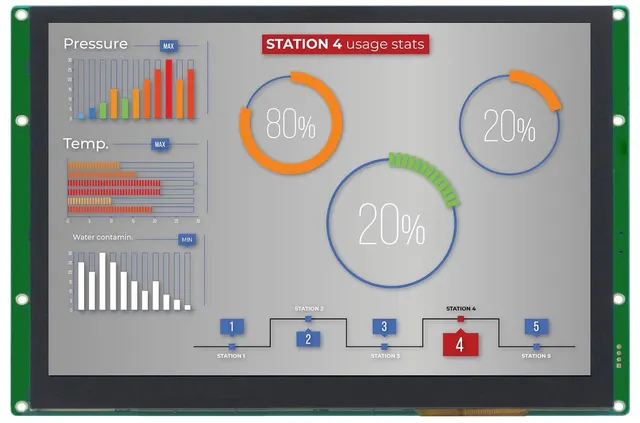

Dimensions	EPC-A9-101-C (PN: CS12800F101E): 245 x 155 x 11mm; PPC-A9-101-C (PN: CS12800F101P): 280 x 185.5 x 27.5mm
Weight	EPC-A9-101-C (PN: CS12800F101E): 600g; PPC-A9-101-C (PN: CS12800F101P): 1410g
Mounting	EPC-A9-101-C (PN: CS12800F101E): Embedded; PPC-A9-101-C (PN: CS12800F101P): Panel
