PPC-A9-215-C
Part number: CS19108F215

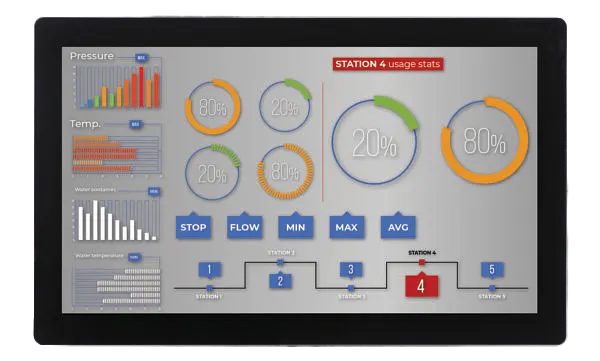

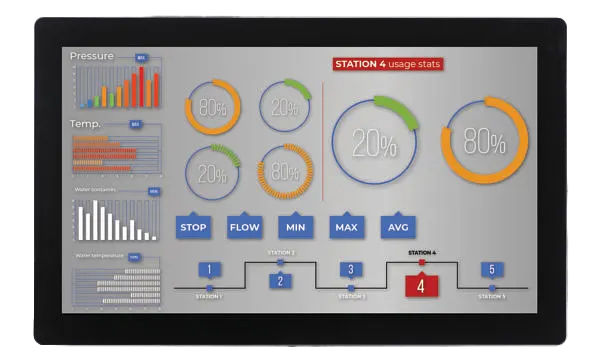

The PPC-A9-215-C is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around iMX6Q, Arm® Cortex®-A9, 1GHz, it combines 2GB DDR3 with TF Card, Supports up to 32GB SDHC. The configuration includes 21.5” LCD, 1920 x 1080, High Brightness: 500cd/m2 and Capacitive Multi-Point Touch Screen. 1 x Channel 1000Mbps LAN helps connect the unit to the wider system.
ProcessoriMX6Q, Arm® Cortex®-A9, 1GHz
Display21.5” LCD, 1920 x 1080, High Brightness: 500cd/m2
TouchCapacitive Multi-Point Touch Screen
Memory2GB DDR3
StorageTF Card, Supports up to 32GB SDHC
Power inputFrom 15V to 36V
Full specification
Technical details
| CPU | iMX6Q, Arm® Cortex®-A9, 1GHz |
|---|---|
| RAM | 2GB DDR3 |
| eMMC | 8GB |
| Storage | TF Card, Supports up to 32GB SDHC |
| Display | 21.5” LCD, 1920 x 1080, High Brightness: 500cd/m2 |
| Touch | Capacitive Multi-Point Touch Screen |
| USB | 4 x USB 2.0 HOST, 1 x USB OTG |
| LAN | 1 x Channel 1000Mbps LAN |
| Audio | 3.5mm Audio In/Out Connector, Internal 2W Speaker |
| Buzzer | Yes |
| RTC | Yes, Powered by CR2032 Button Battery |
| RS232 | 4 x RS232 |
| RS485 | Optional 2 x RS485 |
| CAN | Optional 2 x CAN |
| GPIO | Optional 4 x Channels Input and 4 x Channels Output |
| WiFi/BT | Integrated WiFi/BT Module |
| HDMI | 1 x HDMI |
| SATA | 1 x SATA II |
| Expansion Port | Optional, 10-pin expansion connector |
| 4G/LTE | Optional, Not mounted by default |
| Power Input | From 15V to 36V |
| Current at 15V | 2000mA Max (w/o 4G Module) |
| Power Consumption | 25W Typical |
| Working Temperature | From -20°C to +70°C |
| Dimensions | 530 x 322 x 45mm |
| Weight | 6000g |
| Mounting | Panel & VESA |
