Raspberry Pi Industrial PCs
AIO-CM4-156
Part number: CS19108RA4156A

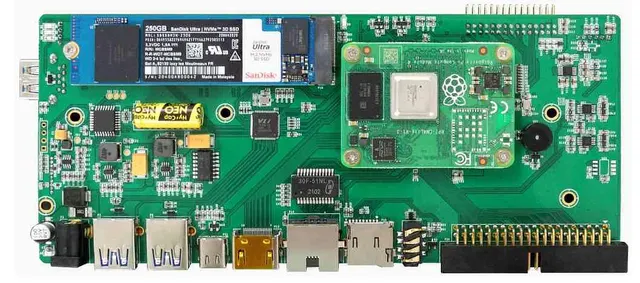

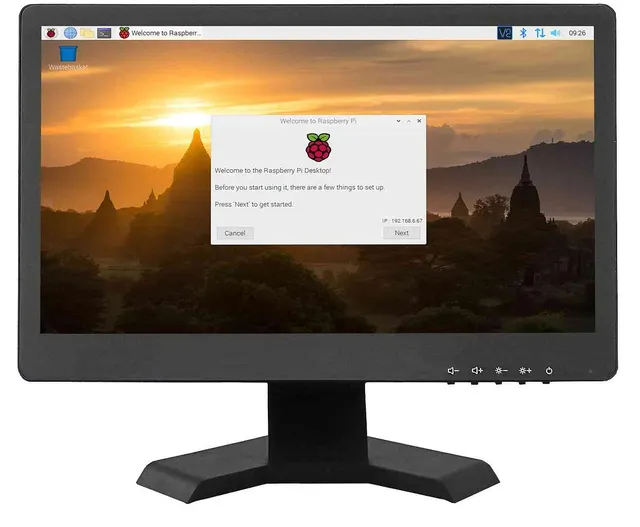

The AIO-CM4-156 is a Chipsee all-in-one computer for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz, it combines 2GB DDR with 1 x TF card slot for boot. Optional, Internal M.2 NVMe connector for SSD card. The configuration includes 15.6” IPS LCD, 1920 x 1080 resolution px, brightness 350 cd/m2 and Optional, 10-point capacitive touch with 1.1mm Armored Glass. It supports Raspberry Pi OS, Ubuntu. 1 x Channel Giga LAN helps connect the unit to the wider system.
Full specification
Technical details
| CPU | Raspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz |
|---|---|
| Storage | 1 x TF card slot for boot. Optional, Internal M.2 NVMe connector for SSD card |
| RAM | 2GB DDR |
| eMMC | 16GB |
| Display | 15.6” IPS LCD, 1920 x 1080 resolution px, brightness 350 cd/m2 |
| Touch | Optional, 10-point capacitive touch with 1.1mm Armored Glass |

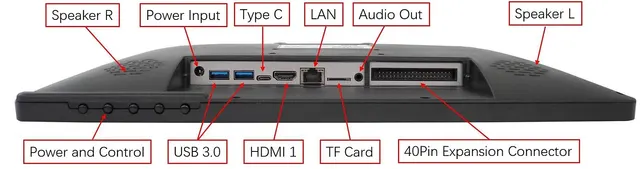

| USB | 2 x USB 3.0 Host, 1 x Type-C USB (Slave) |
| LAN | 1 x Channel Giga LAN |
| Audio | 2W internal stereo speaker, 3.5mm audio Out connector |
| Buzzer | Internal Buzzer |
| RTC | Yes, High accuracy internal RTC (keep track of time one week after power off) |
| GPIO/Wiegand | 40-pin GPIO connector |
| WiFi/BT | WiFi/BT module comes with the CM4 |
| HAT Connector | Standard Raspberry Pi 40-way HAT connector |
| Micro SD card socket | For use only with CM4 Lite modules |
| HDMI | HDMI 2.0 connectors, slave HDMI port for CM4 |
| Power Input | 12V |
| Current | 700mA Max (12V) |
| Power Consumption | 10W Typical |
| Working Temperature | From 0°C to +50°C |
| OS | Raspberry Pi OS, Ubuntu |
| Dimensions | 374 x 238 x 33mm |
| Weight | 1600g |
| Plastic Case Color | Black |
| Certification | CE, ROHS |
