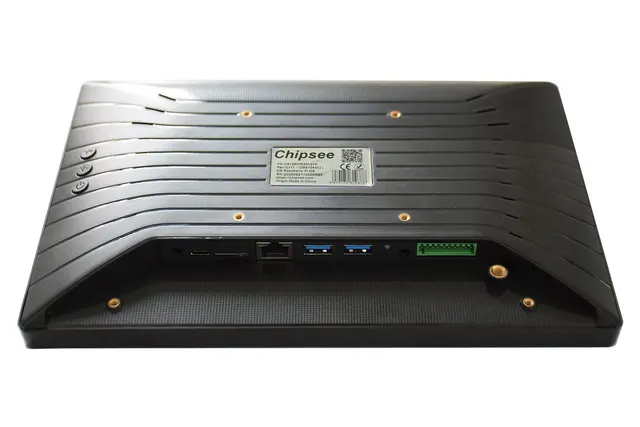

AIO-CM5-101
Part number: CS12800RA5101A
The AIO-CM5-101 is a Chipsee all-in-one computer for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz, it combines 2GB, 4GB, or 8GB SDRAM based on CM5 with Internal M.2 NVMe connector for SSD card (optional). The configuration includes 10.1” IPS LCD, 1280 x 800 px, brightness 400 cd/m2 and 10-point capacitive touch with 1.0mm Armored Glass. It supports Raspberry Pi OS. 1 x Giga LAN helps connect the unit to the wider system.
ProcessorRaspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz
Display10.1” IPS LCD, 1280 x 800 px, brightness 400 cd/m2
Touch10-point capacitive touch with 1.0mm Armored Glass
Memory2GB, 4GB, or 8GB SDRAM based on CM5
StorageInternal M.2 NVMe connector for SSD card (optional)
Operating systemRaspberry Pi OS
Full specification
Technical details
| CPU | Raspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz |
|---|---|
| Storage | Internal M.2 NVMe connector for SSD card (optional) |
| RAM | 2GB, 4GB, or 8GB SDRAM based on CM5 |
| eMMC | 0GB, 16GB, 32GB, or 64GB based on CM5 |
| Display | 10.1” IPS LCD, 1280 x 800 px, brightness 400 cd/m2 |
| Touch | 10-point capacitive touch with 1.0mm Armored Glass |
| USB | 2 x USB 3.0 type-A Host, 1 x USB type-C OTG |
| PCIe | M.2 2230/2242 M-key, PCIe Gen 2.0 x 1(5Gbps) (PCIe Gen 3.0 x1 is compatible but experimental) (optional) |
| LAN | 1 x Giga LAN |
| Audio | 3.5mm Audio Out Connector, 2W Speaker Internal |
| Buzzer | Onboard Buzzer, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| GPIO/Wiegand | (Optional) 2 x 5V Logic GPIO Outputs, can be used as Wiegand signal |
| WiFi/BT | Optional (Depends on CM5) |
| Micro SD card socket | 1 x TF(micro SD) card slot, only for CM5 Lite module to boot from TF |
| Power Input | 15V to 30V DC |
| Current | 800mA max at 15V, 500mA typical at 15V |
| Power Consumption | 12W Max, 7.5W typical |
| Relay | 1 x relay with “Normally Connected” and “Normally Open” output |
| RS232 | 2 x RS232 |
| RS485 | Default 1 x RS485; up to 2 x RS485 (optional) |
| CAN | Default 0 x CAN; Optional 1 x CAN FD BUS. Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps |
| 3G/4G/LTE/GPS | Internal 4G/LTE module supported, not mounted by default |
| Working Temperature | From -20°C to +70°C |
| OS | Raspberry Pi OS |
| Dimensions | 260.54 x 178.54 x 26.9mm |
| Weight | 620g |
| Mounting | VESA, Stand |
| Plastic Case Color | Black / White |
| Certification | CE, ROHS |
