Raspberry Pi Industrial PCs
PPC-CM5-101
Part number: CS12800RA5101P

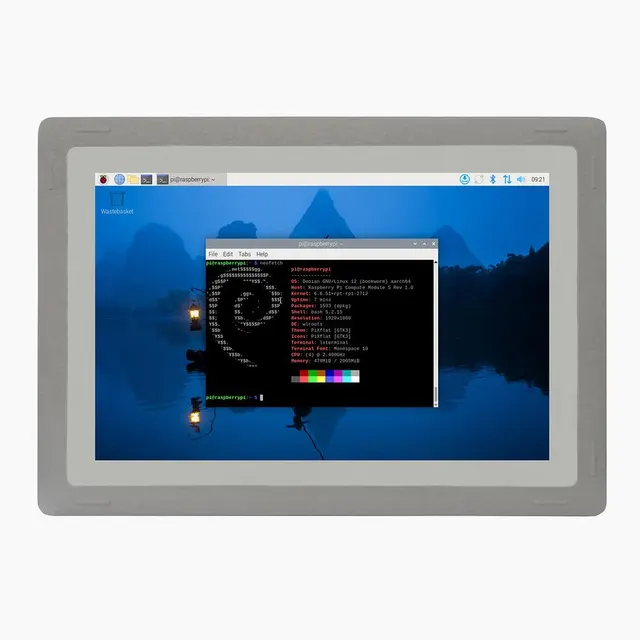

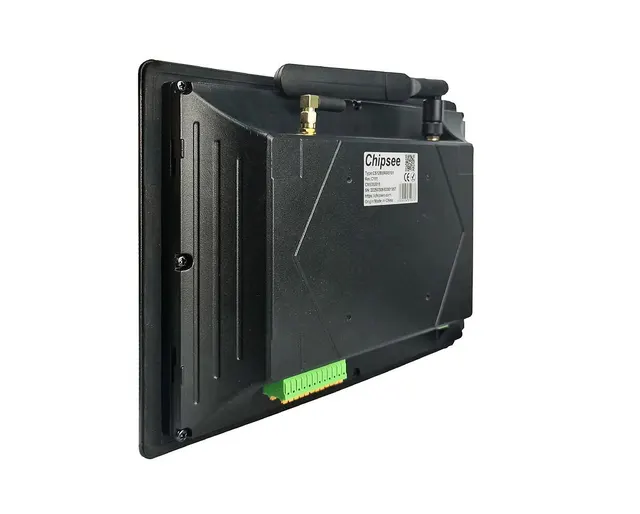

The PPC-CM5-101 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz, it combines 2GB, 4GB, or 8GB SDRAM based on CM5 with Support for 1 x TF Card. The configuration includes 10.1” IPS LCD, 1280 x 800 px, brightness 500 cd/m2 and 10-point capacitive touch with 1mm Armored Glass. It supports Raspberry Pi OS. 1 x Giga LAN helps connect the unit to the wider system.
ProcessorRaspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz
Display10.1” IPS LCD, 1280 x 800 px, brightness 500 cd/m2
Touch10-point capacitive touch with 1mm Armored Glass
Memory2GB, 4GB, or 8GB SDRAM based on CM5
StorageSupport for 1 x TF Card
Operating systemRaspberry Pi OS
Full specification
Technical details
| CPU | Raspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz |
|---|---|
| RAM | 2GB, 4GB, or 8GB SDRAM based on CM5 |
| eMMC | 0GB, 16GB, 32GB, or 64GB based on CM5 |
| Display | 10.1” IPS LCD, 1280 x 800 px, brightness 500 cd/m2 |
| Touch | 10-point capacitive touch with 1mm Armored Glass |
| Storage | Support for 1 x TF Card |
| PCIe | PCIe Gen 2 × 1 (5Gbps), M.2 M-Key 2230/2242/2260/2280 socket (optional) |
| USB | 2 x USB 3.0 type-A Host, 1 x USB type-C OTG |
| LAN | 1 x Giga LAN |
| Audio | 3.5mm Audio Out Connector, 2W Speaker Internal |
| Buzzer | Onboard Buzzer, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional) |
| RS232 | Default to 2 x RS232, up to 4 x RS232 |
| RS485 | Default to 2 x RS485, these 2 x RS485 can be configured as 2 x RS232 |
| CAN | 1 x CAN FD BUS, Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps |
| GPIO | 8 Channels, 4 Input, 4 Output |
| I2C | Not Supported |
| WiFi/BT | Optional (Depends on CM5) |
| ZIGBEE | No |
| HDMI | 1 x HDMI 2.0 out, can be driven up to 4K 60FPS |
| 3G/4G/LTE | Supported, not mounted by default |
| Camera | Yes, not mounted by default. |
| Power Input | From 15V to 30V (supports optional 24V ignition signal) |
| Current | 880mA max at 15V, 560mA typical at 15V |
| Power Consumption | 13.3W max, 8.4W typical |
| Working Temperature | From -20°C to +70°C |
| OS | Raspberry Pi OS |
| Dimensions | CS12800RA5101P: 275.5 x 193.5 x 46.0mm |
| Weight | CS12800RA5101P: 1300g |
| Mounting Method | CS12800RA5101P: Panel, VESA |
