Raspberry Pi Industrial PCs
AIO-CM5-156
Part number: CS19108RA5156A
The AIO-CM5-156 is a Chipsee all-in-one computer for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz, it combines 2GB, 4GB, or 8GB SDRAM based on CM5 with Internal M.2 NVMe connector for SSD card (optional). The configuration includes 15.6” IPS LCD, 1920 x 1080 px, brightness 350 cd/m2 and 10-point capacitive touch with 1.1mm Armored Glass. It supports Raspberry Pi OS, Android. 1 x Giga LAN helps connect the unit to the wider system.
ProcessorRaspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz
Display15.6” IPS LCD, 1920 x 1080 px, brightness 350 cd/m2
Touch10-point capacitive touch with 1.1mm Armored Glass
Memory2GB, 4GB, or 8GB SDRAM based on CM5
StorageInternal M.2 NVMe connector for SSD card (optional)
Operating systemRaspberry Pi OS, Android
Full specification
Technical details
| CPU | Raspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz |
|---|---|
| Storage | Internal M.2 NVMe connector for SSD card (optional) |
| RAM | 2GB, 4GB, or 8GB SDRAM based on CM5 |
| eMMC | 0GB, 16GB, 32GB, or 64GB based on CM5 |
| Display | 15.6” IPS LCD, 1920 x 1080 px, brightness 350 cd/m2 |
| Touch | 10-point capacitive touch with 1.1mm Armored Glass |

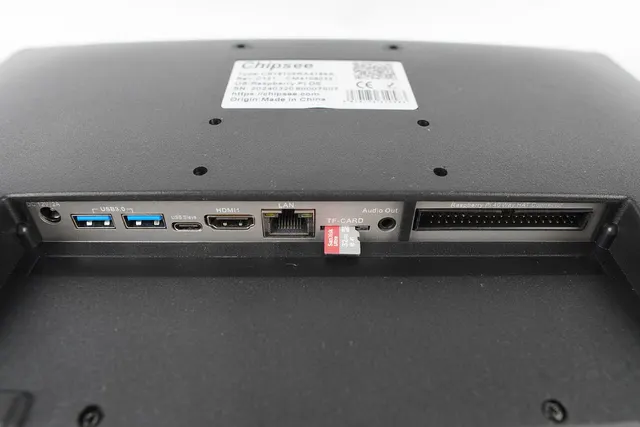

| USB | 2 x USB 3.0 Host, 1 x Type-C USB (Slave) |
| PCIe | M.2 2280 M-key, PCIe Gen 2.0 x1 (PCIe Gen 3.0 x1 is compatible but experimental) (optional) |
| LAN | 1 x Giga LAN |
| Audio | 2W internal stereo speaker, 3.5mm audio Out connector |
| Buzzer | Internal Buzzer |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| GPIO/Wiegand | 40-pin GPIO connector |
| WiFi/BT | WiFi/BT module comes with the CM5 |
| HAT Connector | Standard Raspberry Pi 40-way HAT connector |
| Micro SD card socket | 1 x TF(micro SD) card slot, only for CM5 Lite module to boot from TF |
| HDMI | HDMI 2.0 connector, can be driven up to 4K 60FPS |
| Power Input | 12V DC |
| Current | 1A Max, 800mA typical |
| Power Consumption | 12W Max, 9.6W typical |
| Working Temperature | From 0°C to +50°C |
| OS | Raspberry Pi OS, Android |

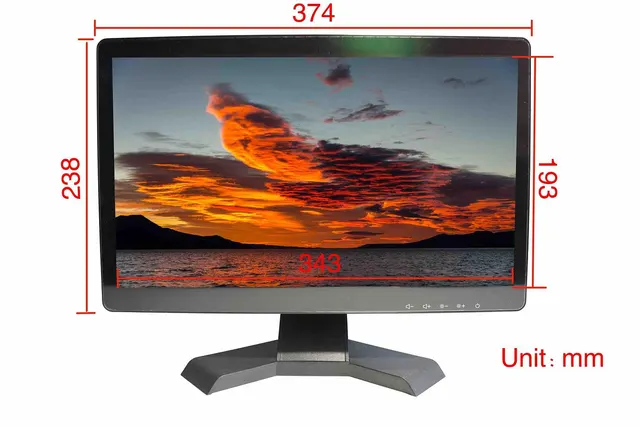

| Dimensions | 374 x 238 x 33mm |
| Weight | 1600g |
| Mounting | VESA, Stand |
| Plastic Case Color | Black |
| Certification | CE, ROHS |
