EPC-CM4-050

Raspberry Pi Industrial PCs

EPC-CM4-050

Part number: CS12720RA4050E

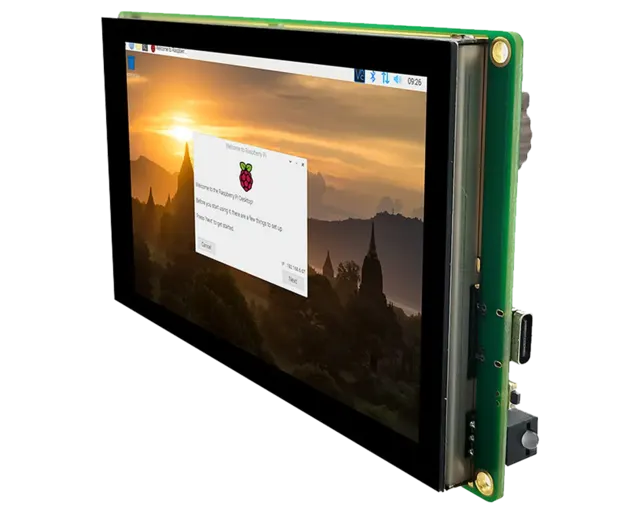

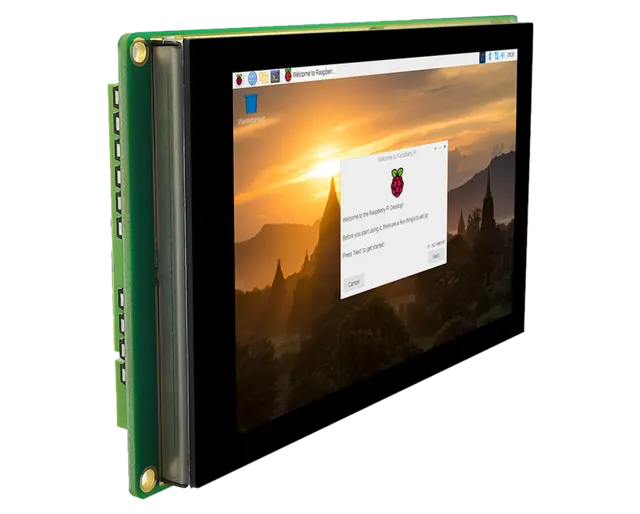

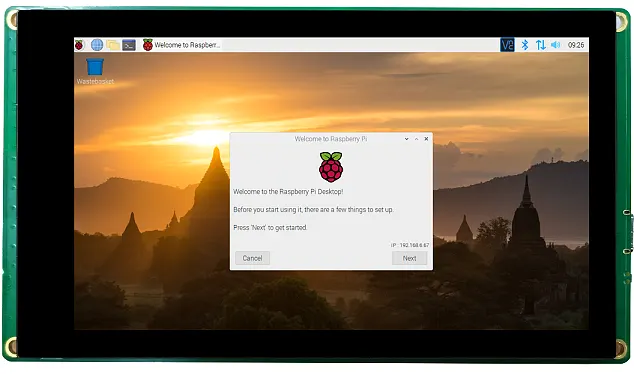

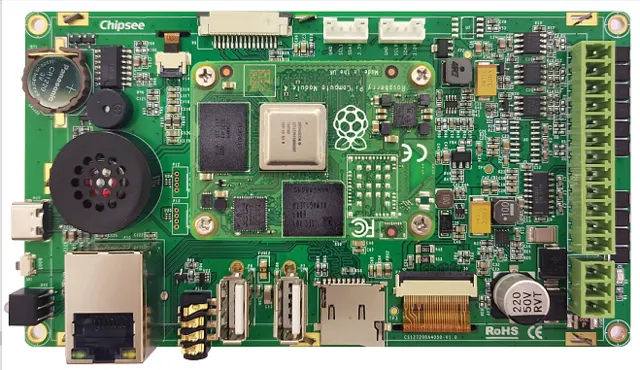

The EPC-CM4-050 is a Chipsee embedded panel PC for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz, it combines Based on CM4 with 1 TF Cards slots. The configuration includes 5” IPS LCD, 1280 x 720 resolution px, brightness 400 cd/m2 and 5-point capacitive touch with 1mm Armored Glass. It supports Debian. 1 x Channel Giga LAN helps connect the unit to the wider system.

ProcessorRaspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz
Display5” IPS LCD, 1280 x 720 resolution px, brightness 400 cd/m2
Touch5-point capacitive touch with 1mm Armored Glass
MemoryBased on CM4
Storage1 TF Cards slots
Operating systemDebian
Request project quoteTechnical docs

Full specification

Technical details

CPURaspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz
Storage1 TF Cards slots
RAMBased on CM4
eMMCBased on CM4
Display5” IPS LCD, 1280 x 720 resolution px, brightness 400 cd/m2
Touch5-point capacitive touch with 1mm Armored Glass
USB2 x USB 2.0 Host, 1 x Type-C
LAN1 x Channel Giga LAN
Audio3.5mm Audio Out Connector, 2W Speaker Internal
BuzzerOnboard Buzzer, driven by GPIO
RTCYes, High Accuracy RTC with Lithium Button Coin battery (lithium battery not included)
RS2322 x RS232
RS4852 x RS485
CAN1 x CAN-BUS
GPIONot Supported
WiFi/BTSupported but depending on the CM4 selected
HDMINot Supported
3G/4G/LTENot Supported
I2CSupport I2C0 I2C1 for CS12720RA4050E
CameraYes, not mounted by default
Power InputFrom 9V to 36V
Current at 12V500mA Max
Power Consumption6W Typical
Working TemperatureFrom 0°C to +60°C
OSDebian
DimensionsCS12720RA4050E: 141.2 x 77.6 x 25.8mm
WeightCS12720RA4050E: 200g
