Rockchip Industrial PCs
PPC-A55-050
Part number: CS12720-RK3568-050P

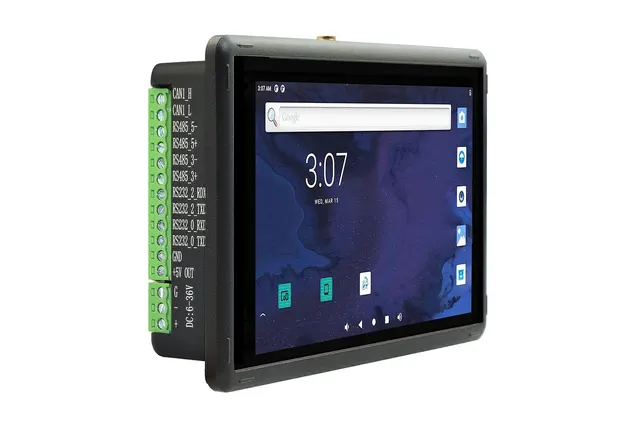

The PPC-A55-050 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rockchip RK3568, Quad-core Cortex-A55 (2.0GHz), it combines 2GB LPDDR4X with TF Card, Supports up to 128GB SDHC. The configuration includes 5.0” LCD, 1280 x 720, High Brightness: 400 cd/m2 and 5-point capacitive touch screen with 1mm tempered glass. It supports Android 11, Debian11, Buildroot Linux Qt 5.15. 1 x RJ45, GbE helps connect the unit to the wider system.
ProcessorRockchip RK3568, Quad-core Cortex-A55 (2.0GHz)
Display5.0” LCD, 1280 x 720, High Brightness: 400 cd/m2
Touch5-point capacitive touch screen with 1mm tempered glass
Memory2GB LPDDR4X
StorageTF Card, Supports up to 128GB SDHC
Operating systemAndroid 11, Debian11, Buildroot Linux Qt 5.15
Full specification
Technical details
| CPU | Rockchip RK3568, Quad-core Cortex-A55 (2.0GHz) |
|---|---|
| RAM | 2GB LPDDR4X |
| eMMC | 16GB |
| Storage | TF Card, Supports up to 128GB SDHC |

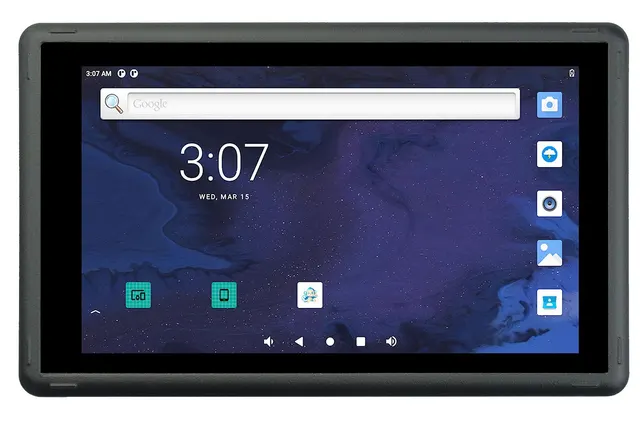

| Display | 5.0” LCD, 1280 x 720, High Brightness: 400 cd/m2 |

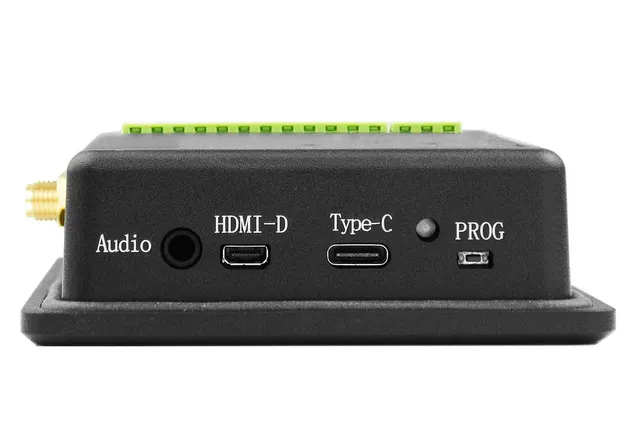

| HDMI | 1 x HDMI-D 2.0 (Micro-HDMI) Out |
| Touch | 5-point capacitive touch screen with 1mm tempered glass |
| USB | 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C |

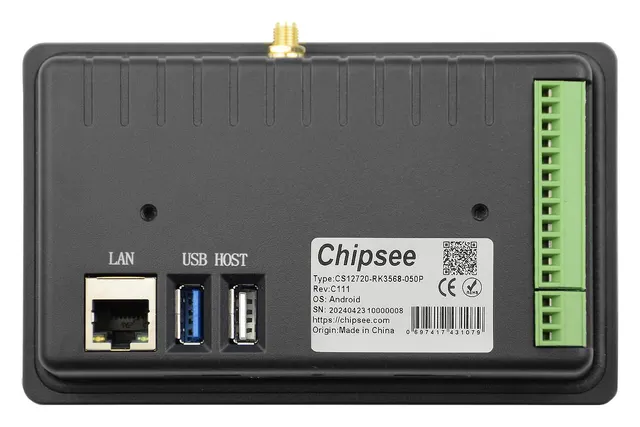

| LAN | 1 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |

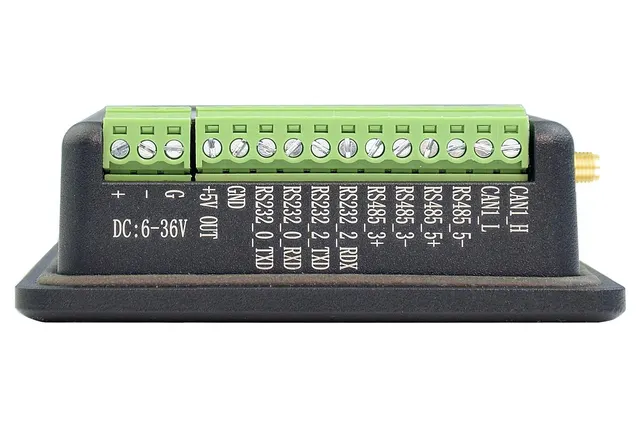

| RS232 | default 2 x RS232 (Optional 4 x RS232 at most, include 1 debug port) |
| RS485 | 2 x RS485 at most |
| CAN | default 1 x CAN FD (Optional 2 x CAN FD at most, by swapping RS485_4 to CAN FD) |
| WiFi/BT | Integrated WiFi/BT Module |
| Power Input | From 6V to 36V |
| Current | 450mA Max at 12V |
| Power Consumption | 5.4W Max |
| Working Temperature | From -20°C to +60°C |
| OS | Android 11, Debian11, Buildroot Linux Qt 5.15 |
| Dimensions | PPC-A55-050 (PN: CS12720-RK3568-050P): 138.55 x 84.70 x 27.10mm |
| Weight | PPC-A55-050 (PN: CS12720-RK3568-050P): 310g |
| Mounting | PPC-A55-050 (PN: CS12720-RK3568-050P): Panel, VESA |
