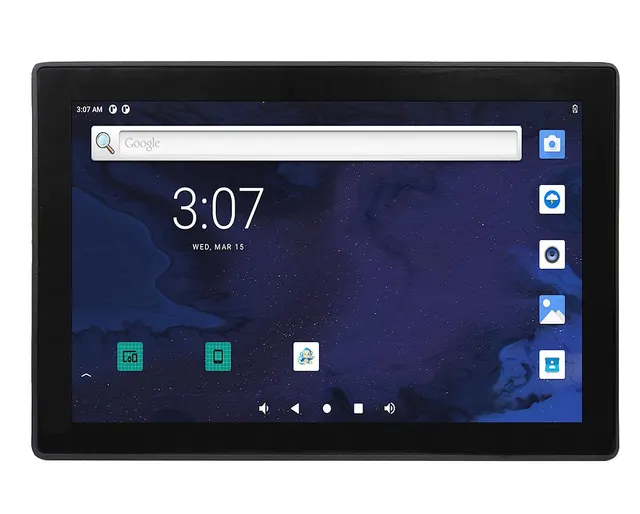

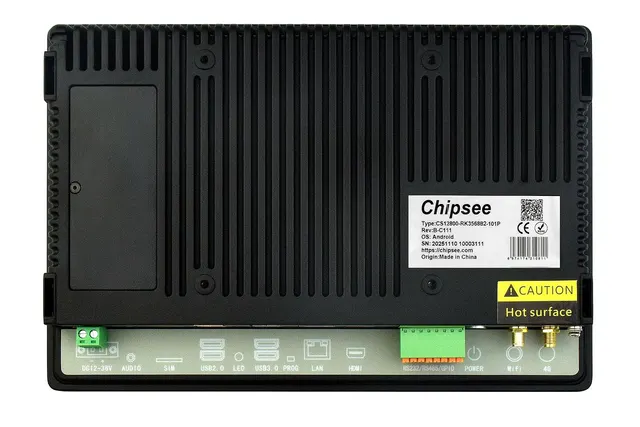

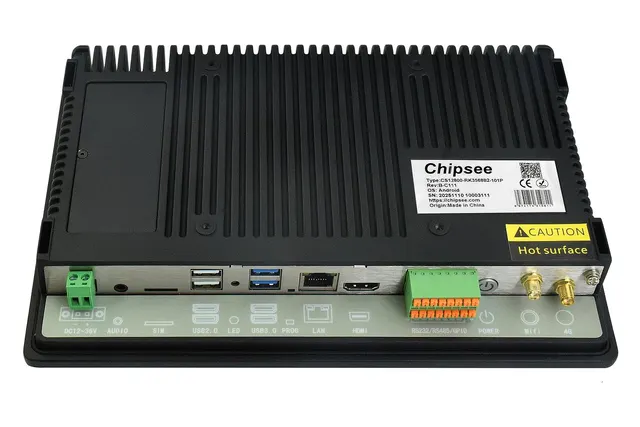

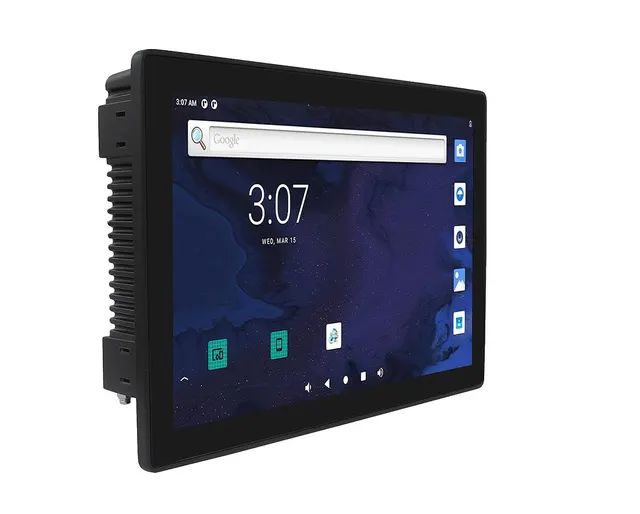

PPC-A55-101S
Part number: CS12800-RK3568B2-101P
The PPC-A55-101S is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rockchip RK3568B2, Quad-core Cortex-A55 (2.0GHz), it combines 2GB/4GB with 16GB/64GB. The configuration includes 10.1” LCD, 1280 x 800, Brightness: 260 cd/m2 and 10-point capacitive touch screen. It supports Android 11, Debian11, Buildroot Linux Qt 5.15. 1 x RJ45, GbE helps connect the unit to the wider system.
ProcessorRockchip RK3568B2, Quad-core Cortex-A55 (2.0GHz)
Display10.1” LCD, 1280 x 800, Brightness: 260 cd/m2
Touch10-point capacitive touch screen
Memory2GB/4GB
Storage16GB/64GB
Operating systemAndroid 11, Debian11, Buildroot Linux Qt 5.15
Full specification
Technical details
| CPU | Rockchip RK3568B2, Quad-core Cortex-A55 (2.0GHz) |
|---|---|
| RAM | 2GB/4GB |
| eMMC | 16GB/64GB |
| SSD | Optional, supports M.2 2280 NVME SSD (PCI-E 3.0 x 2). If you use SSD, 4G/LTE will be disabled. |
| Display | 10.1” LCD, 1280 x 800, Brightness: 260 cd/m2 |
| HDMI | 1 x HDMI OUT |
| Touch | 10-point capacitive touch screen |
| USB | 2 x USB 2.0 HOST, 2 x USB 3.0 HOST(The upper USB 3.0 port close to front panel also serves as a download interface) |
| LAN | 1 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, No Internal Speaker |
| RTC | High accuracy RTC with lithium coin battery, can work 3 years after power off. |
| RS232 | Default to 2 x RS232. Up to 4 x RS232. |
| RS485 | Default to 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232. |
| GPIO | 6 channels non-isolated CPU GPIO, can be configured to IN or OUT by user |
| WiFi/BT | Integrated WiFi/BT Module |
| 4G/LTE | Supported, Optional. If you use 4G/LTE, SSD will be disabled. |
| Power Input | From 12V to 36V |
| Current | 300mA Typical, 500mA Max at 15V |
| Power Consumption | 4.5W Typical, 7.5W Max |
| Working Temperature | From 0°C to +50°C |
| OS | Android 11, Debian11, Buildroot Linux Qt 5.15 |
| Dimensions | PPC-A55-101S (PN: CS12800-RK3568B2-101P): 253.20 X 171.83 X 36mm |
| Weight | PPC-A55-101S (PN: CS12800-RK3568B2-101P): 1300g |
| Mounting | PPC-A55-101S (PN: CS12800-RK3568B2-101P): Panel, VESA, Wall, Desktop |
