Rockchip Industrial PCs

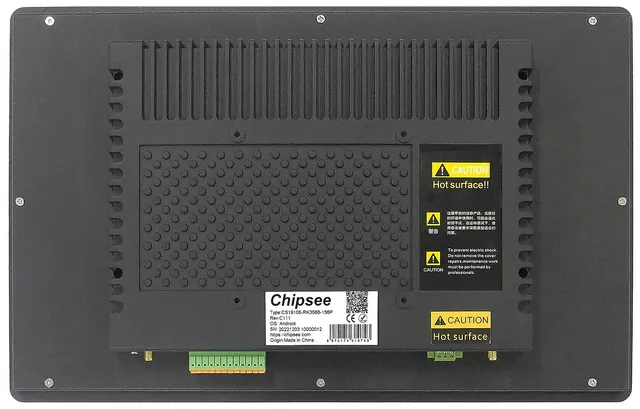

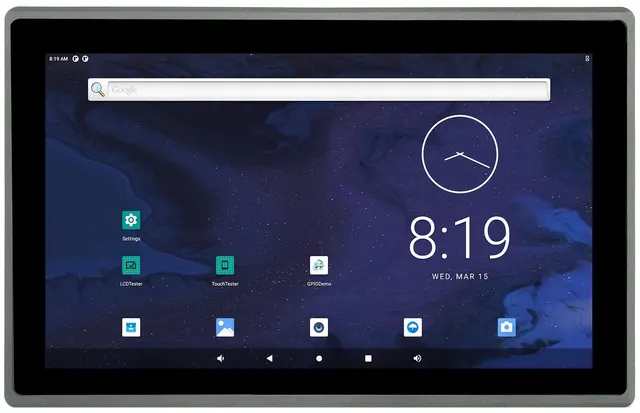

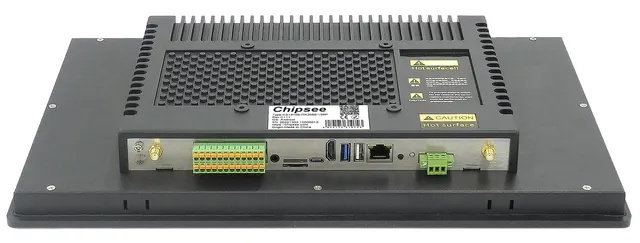

PPC-A55-156
Part number: CS19108-RK3568-156P
The PPC-A55-156 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rockchip RK3568, Quad-core Cortex-A55 (2.0GHz), it combines 4GB LPDDR4X with TF Card, Supports up to 128GB SDHC. The configuration includes 15.6” LCD, 1920 x 1080, High Brightness: 450 cd/m2 and 10-point capacitive touch screen with 3mm tempered glass. It supports Android 11, Debian11, Buildroot Linux Qt 5.15. 1 x RJ45, GbE helps connect the unit to the wider system.
ProcessorRockchip RK3568, Quad-core Cortex-A55 (2.0GHz)
Display15.6” LCD, 1920 x 1080, High Brightness: 450 cd/m2
Touch10-point capacitive touch screen with 3mm tempered glass
Memory4GB LPDDR4X
StorageTF Card, Supports up to 128GB SDHC
Operating systemAndroid 11, Debian11, Buildroot Linux Qt 5.15
Full specification
Technical details
| CPU | Rockchip RK3568, Quad-core Cortex-A55 (2.0GHz) |
|---|---|
| RAM | 4GB LPDDR4X |
| eMMC | 64GB |
| SSD | Optional, supports M.2 2280 NVME SSD (PCI-E 3.0 x 2) |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display | 15.6” LCD, 1920 x 1080, High Brightness: 450 cd/m2 |
| HDMI | 1 x HDMI OUT |
| Touch | 10-point capacitive touch screen with 3mm tempered glass |
| USB | 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C |
| LAN | 1 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| RS232 | Default to 2 x RS232 (including 1 debug port). Up to 6 x RS232. |
| RS485 | Default to 2 x RS485. Optionally, these 2 x RS485 can be configured to RS232. |
| CAN | Default to 2 x CAN FD. Optionally, these 2 x CAN FD can be configured to RS232. |
| GPIO | 8 Channels Isolated IO, 4 x Input and 4 x Output |
| WiFi/BT | Integrated WiFi/BT Module |
| 4G/LTE | Supported, Optional |
| Power Input | From 12V to 36V |
| Current | 1.95A Max at 12V |
| Power Consumption | 9.6W Typical, 23.4W Max |
| Working Temperature | From -30°C to +85°C |
| OS | Android 11, Debian11, Buildroot Linux Qt 5.15 |
| Dimensions | PPC-A55-156 (PN: CS19108-RK3568-156P): 400 × 256 × 52.5mm |
| Weight | PPC-A55-156 (PN: CS19108-RK3568-156P): 4500g |
| Mounting | PPC-A55-156 (PN: CS19108-RK3568-156P): Panel, VESA |
