Rockchip Industrial PCs
PPC-A72-101-C
Part number: CS12800R101P
The PPC-A72-101-C is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz), it combines 4GB DDR3 with TF Card, Supports up to 32GB SDHC. The configuration includes 10.1” LCD, 1280 x 800, High Brightness: 250 cd/m2 and 10-point capacitive touch screen. It supports Android 7.1. 1 x RJ45, GbE helps connect the unit to the wider system.
ProcessorRokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz)
Display10.1” LCD, 1280 x 800, High Brightness: 250 cd/m2
Touch10-point capacitive touch screen
Memory4GB DDR3
StorageTF Card, Supports up to 32GB SDHC
Operating systemAndroid 7.1
Full specification
Technical details
| CPU | Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz) |
|---|---|
| RAM | 4GB DDR3 |
| eMMC | 16GB |
| Storage | TF Card, Supports up to 32GB SDHC |
| Display | 10.1” LCD, 1280 x 800, High Brightness: 250 cd/m2 |
| Touch | 10-point capacitive touch screen |

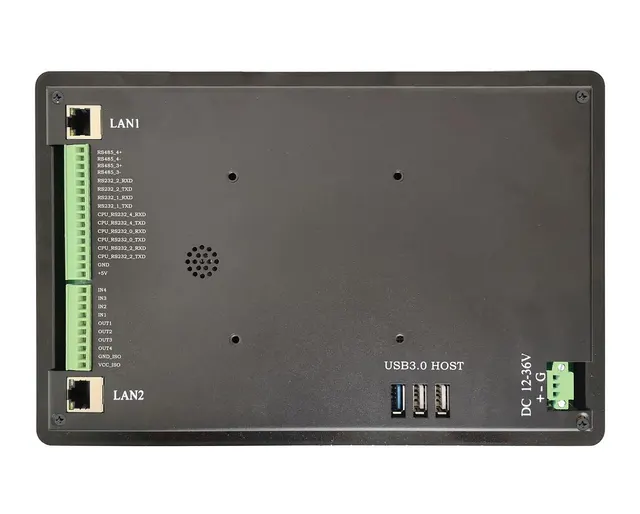

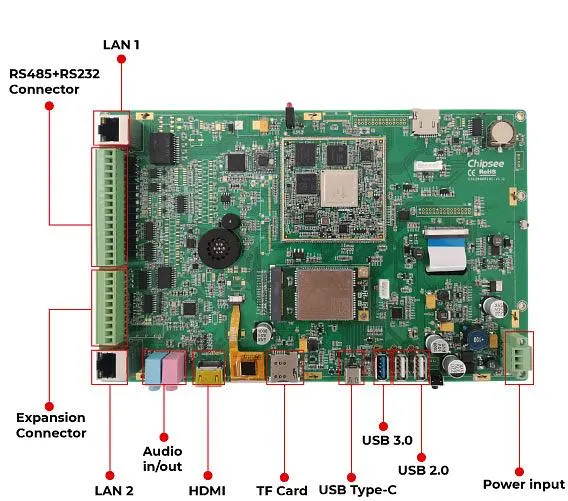

| USB | 2 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C |
| LAN | 1 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | Yes |
| RS232 | 5 x RS232 |
| RS485 | 2 x RS485 (Optional 4 x RS485 at most, 1 debug port) |
| GPIO | 8 Channels |
| WiFi/BT | Integrated WiFi/BT Module |
| HDMI | 1 x HDMI |
| 4G/LTE | Supported, Optional |
| Power Input | From 15V to 36V |
| Current at 15V | 500mA Max |
| Power Consumption | 7.5W Typical |
| Working Temperature | From -20°C to +70°C |
| OS | Android 7.1 |
| Dimensions | EPC-A72-101-C (PN: CS12800R101E): 245 x 155 x 11mm; PPC-A72-101-C (PN: CS12800R101P): 280 x 185.5 x 27.5mm |
| Weight | EPC-A72-101-C (PN: CS12800R101E): 600g; PPC-A72-101-C (PN: CS12800R101P): 1500g |
| Mounting | EPC-A72-101-C (PN: CS12800R101E): Embedded; PPC-A72-101-C (PN: CS12800R101P): Panel |
