Rockchip Industrial PCs
PPC-A72-101
Part number: CS12800R101P

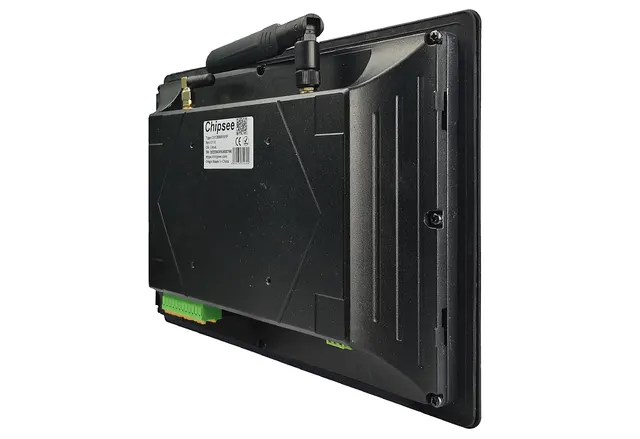

The PPC-A72-101 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rockchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz), it combines 4GB DDR3 with TF Card, Supports up to 128GB SDHC. The configuration includes 10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2 and 10-point capacitive touch screen with 1mm tempered glass. It supports Android 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10. 1 x RJ45, GbE helps connect the unit to the wider system.
ProcessorRockchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz)
Display10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2
Touch10-point capacitive touch screen with 1mm tempered glass
Memory4GB DDR3
StorageTF Card, Supports up to 128GB SDHC
Operating systemAndroid 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10
Full specification
Technical details
| CPU | Rockchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz) |
|---|---|
| RAM | 4GB DDR3 |
| eMMC | 16GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display | 10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2 |
| Touch | 10-point capacitive touch screen with 1mm tempered glass |

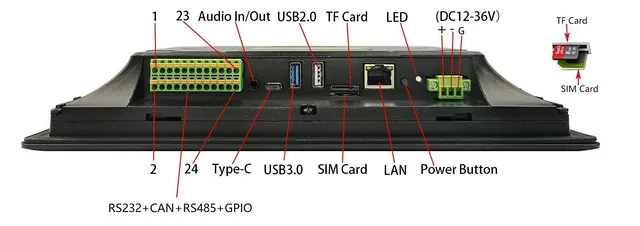

| USB | 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C |
| LAN | 1 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | Yes |
| RS232 | 3 x RS232 (Optional 5 x RS232 at most, 1 debug port) |
| RS485 | 2 x RS485 |
| GPIO | 8 Channels |
| WiFi/BT | Integrated WiFi/BT Module |
| 4G/LTE | Supported, Optional |
| Power Input | From 12V to 36V |
| Current | 700mA Max(15V) |
| Power Consumption | 12W Typical |
| Working Temperature | From 0°C to +60°C |
| OS | Android 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10 |
| Dimensions | PPC-A72-101 (PN: CS12800R101P): 275.5 x 193.5 x 46.0mm |
| Weight | PPC-A72-101 (PN: CS12800R101P): 1300g |
| Mounting | PPC-A72-101 (PN: CS12800R101P): Panel, VESA |
