PPC-A72-125-C

Rockchip Industrial PCs

PPC-A72-125-C

Part number: CS19108R125

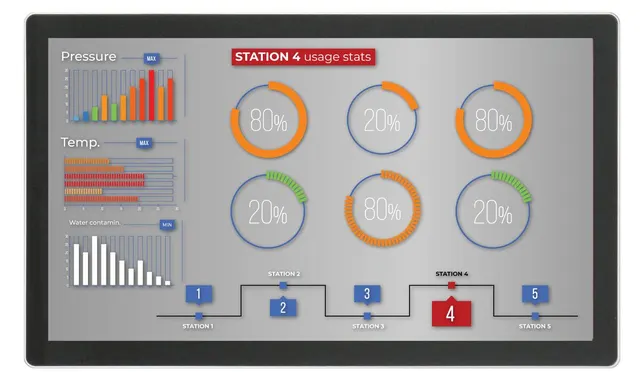

The PPC-A72-125-C is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz), it combines 4GB DDR3 with TF Card, Supports up to 32GB SDHC. The configuration includes 12.5” LCD, 1920 x 1080, High Brightness: 250 cd/m2 and 10-point capacitive touch screen. It supports Android 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10. 1 x RJ45, GbE helps connect the unit to the wider system.

ProcessorRokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz)
Display12.5” LCD, 1920 x 1080, High Brightness: 250 cd/m2
Touch10-point capacitive touch screen
Memory4GB DDR3
StorageTF Card, Supports up to 32GB SDHC
Operating systemAndroid 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10
Request project quoteTechnical docs

Full specification

Technical details

CPURokchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz)
RAM4GB DDR3
eMMC16GB
StorageTF Card, Supports up to 32GB SDHC
Display12.5” LCD, 1920 x 1080, High Brightness: 250 cd/m2
Touch10-point capacitive touch screen
USB4 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C
LAN1 x RJ45, GbE
Audio3.5mm Audio Out Connector, 2W Internal Speaker
BuzzerYes
RTCYes
RS2325 x RS232
RS4852 x RS485 ( 4 at most, 1 debug port)
GPIO8 Channels
WiFi/BTIntegrated WiFi/BT Module
HDMI1 x HDMI
4G/LTESupported, Optional
Power InputFrom 15V to 36V
Current at 15V800mA Max
Power Consumption12W Typical
Working TemperatureFrom 0°C to +70°C
OSAndroid 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10
Dimensions306 x 187 x 37mm
Weight1700g
MountingVESA & Panel methods
