Rockchip Industrial PCs
PPC-A72-236
Part number: CS19108R236P

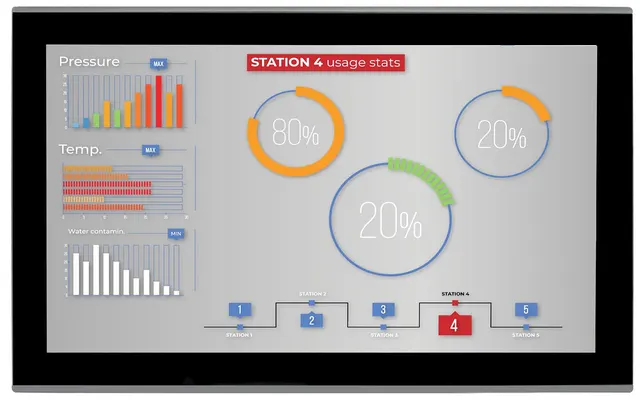

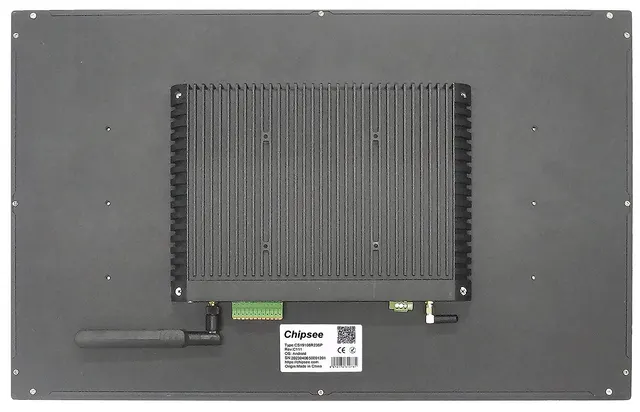

The PPC-A72-236 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rockchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz), it combines 4GB DDR3 with TF Card, Supports up to 128GB SDHC. The configuration includes 23.6” LCD, 1920 x 1080, High Brightness: 250 cd/m2 and 10-point capacitive touch screen with 2mm tempered glass. It supports Android 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10. 1 x RJ45, GbE helps connect the unit to the wider system.
ProcessorRockchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz)
Display23.6” LCD, 1920 x 1080, High Brightness: 250 cd/m2
Touch10-point capacitive touch screen with 2mm tempered glass
Memory4GB DDR3
StorageTF Card, Supports up to 128GB SDHC
Operating systemAndroid 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10
Full specification
Technical details
| CPU | Rockchip RK3399, Dual-core Cortex-A72 (1.8GHz), Quad-core Cortex-A53 (1.4GHz) |
|---|---|
| RAM | 4GB DDR3 |
| eMMC | 16GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display | 23.6” LCD, 1920 x 1080, High Brightness: 250 cd/m2 |
| Touch | 10-point capacitive touch screen with 2mm tempered glass |
| USB | 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C |
| LAN | 1 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | Yes |
| RS232 | 3 x RS232 (Optional 5 x RS232 at most, 1 debug port) |
| RS485 | 2 x RS485 |
| GPIO | 8 Channels |
| WiFi/BT | Integrated WiFi/BT Module |
| 4G/LTE | Supported, Optional |
| Power Input | From 12V to 36V |
| Current | 1.68A Max (15V) |
| Power Consumption | 19.56W (15V x 1.30A) Typical, 25.2W (15V x 1.68A) Max |
| Working Temperature | From 0°C to +50°C |
| OS | Android 7.1, Android 11, Buildroot Linux Qt5.14, Debian 10 |
| Dimensions | PPC-A72-236 (PN: CS19108R236P): 595 x 374 x 57.25mm |
| Weight | PPC-A72-236 (PN: CS19108R236P): 7500g |
| Mounting | PPC-A72-236 (PN: CS19108R236P): Panel, VESA |
