PPC-A76-070

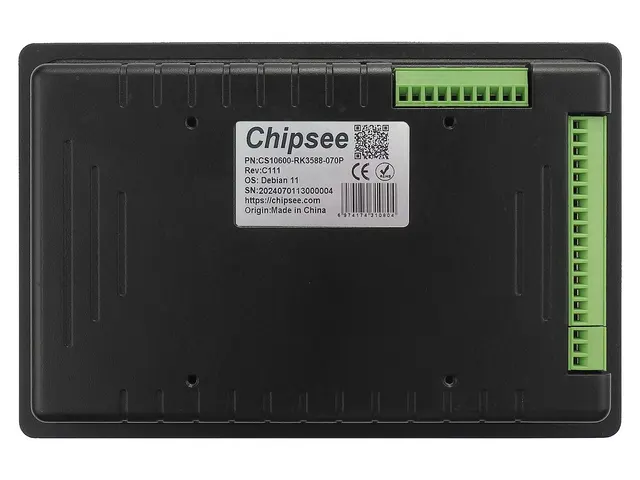

Part number: CS10600-RK3588-070P
The PPC-A76-070 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rockchip RK3588J, Quad(4)-core Cortex-A76 (2.0GHz) and Quad(4)-core Cortex-A55 (1.8GHz), it combines 8GB LPDDR4 with TF Card, Supports up to 128GB SDHC. The configuration includes 7” LCD, 1024 x 600, High Brightness: 400 cd/m2 and 5-point capacitive touch screen with 1mm tempered glass. It supports Debian11, Buildroot Linux Qt 5.15. 2 x RJ45, GbE helps connect the unit to the wider system.
ProcessorRockchip RK3588J, Quad(4)-core Cortex-A76 (2.0GHz) and Quad(4)-core Cortex-A55 (1.8GHz)
Display7” LCD, 1024 x 600, High Brightness: 400 cd/m2
Touch5-point capacitive touch screen with 1mm tempered glass
Memory8GB LPDDR4
StorageTF Card, Supports up to 128GB SDHC
Operating systemDebian11, Buildroot Linux Qt 5.15
Full specification
Technical details
| CPU | Rockchip RK3588J, Quad(4)-core Cortex-A76 (2.0GHz) and Quad(4)-core Cortex-A55 (1.8GHz) |
|---|---|
| GPU | ARM Mali-G610 MC4. Up to 8K60 FPS video decoding, up to 8K30 FPS video encoding. |
| NPU | Neural network acceleration engine with 6Tops int8, support Int4/8/16/FP16/BF16/TF32. |
| RAM | 8GB LPDDR4 |
| eMMC | 64GB |
| Storage | TF Card, Supports up to 128GB SDHC |

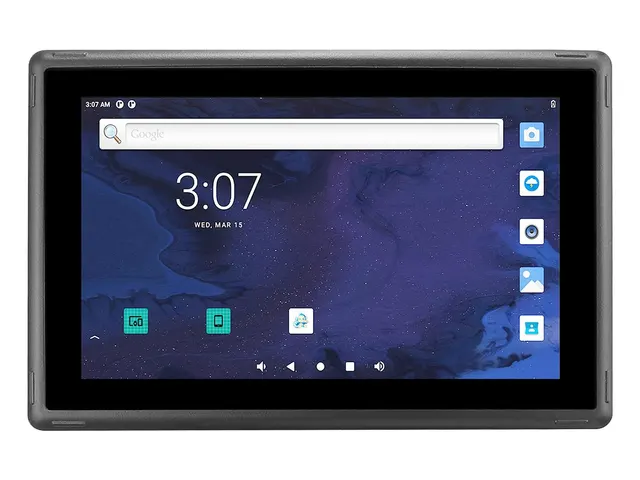

| Display | 7” LCD, 1024 x 600, High Brightness: 400 cd/m2 |
| HDMI | 1 x HDMI-D (Micro-HDMI) Out |
| Touch | 5-point capacitive touch screen with 1mm tempered glass |
| USB | 2 x USB 3.0 HOST, 1 x USB Type-C |
| LAN | 2 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |

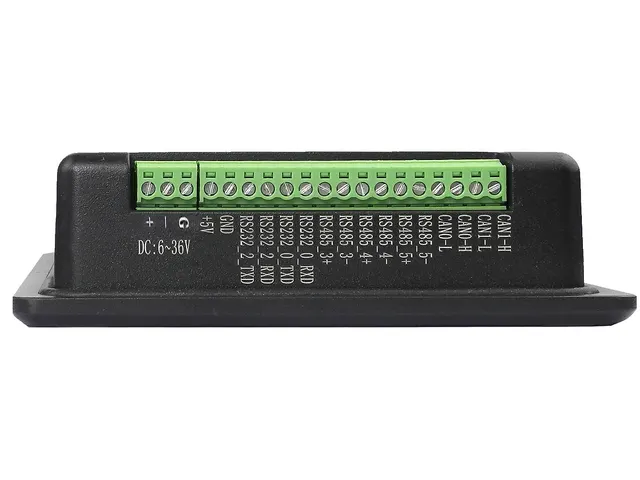

| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, include 1 debug port) |
| RS485 | default 3 x RS485 at most |
| CAN | default 2 x CAN FD |
| GPIO | 8 Channels Isolated IO, 4 x Input and 4 x Output |
| WiFi/BT | Integrated WiFi/BT Module |
| 4G/LTE | Supported, Optional |
| Power Input | From 9V to 30V (supports optional 24V ignition signal) |
| Current | 533mA (max) at 15V |
| Power Consumption | 8W (max) |
| Working Temperature | From -10°C to +60°C |
| OS | Debian11, Buildroot Linux Qt 5.15 |
| Dimensions | PPC-A76-070 (PN: CS10600-RK3588-070P): 188.05 x 123.11 x 33.20mm |
| Weight | PPC-A76-070 (PN: CS10600-RK3588-070P): 700g |
| Mounting | PPC-A76-070 (PN: CS10600-RK3588-070P): Panel, VESA |
