Rockchip Industrial PCs

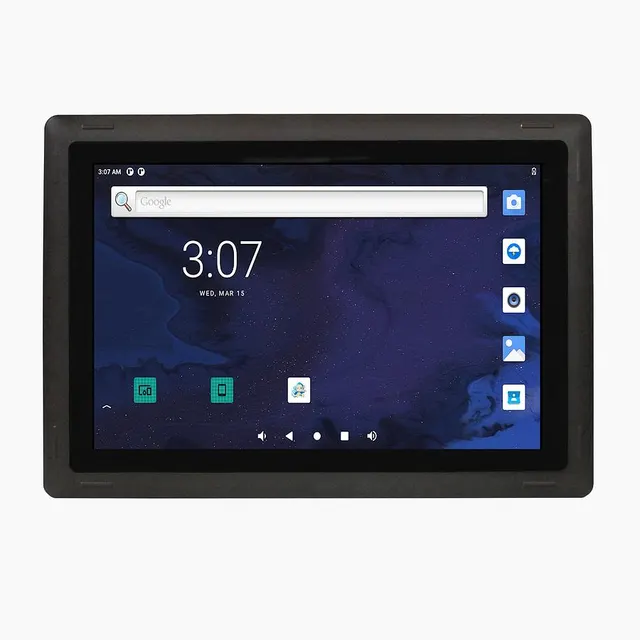

PPC-A76-101
Part number: CS12800-RK3588-101P
The PPC-A76-101 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rockchip RK3588J, Quad(4)-core Cortex-A76 (2.0GHz) and Quad(4)-core Cortex-A55 (1.8GHz), it combines 8GB LPDDR4 with TF Card, Supports up to 128GB SDHC. The configuration includes 10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2 and 10-point capacitive touch screen with 1mm tempered glass. It supports Debian11, Buildroot Linux Qt 5.15. 1 x RJ45, GbE helps connect the unit to the wider system.
ProcessorRockchip RK3588J, Quad(4)-core Cortex-A76 (2.0GHz) and Quad(4)-core Cortex-A55 (1.8GHz)
Display10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2
Touch10-point capacitive touch screen with 1mm tempered glass
Memory8GB LPDDR4
StorageTF Card, Supports up to 128GB SDHC
Operating systemDebian11, Buildroot Linux Qt 5.15
Full specification
Technical details
| CPU | Rockchip RK3588J, Quad(4)-core Cortex-A76 (2.0GHz) and Quad(4)-core Cortex-A55 (1.8GHz) |
|---|---|
| GPU | ARM Mali-G610 MC4. Up to 8K60 FPS video decoding, up to 8K30 FPS video encoding. |
| NPU | Neural network acceleration engine with 6Tops int8, support Int4/8/16/FP16/BF16/TF32. |
| RAM | 8GB LPDDR4 |
| eMMC | 64GB |
| PCIe | 1 x PCIe3.0 x4, M.2 M-Key 2230/2242/2260/2280 socket (optional) |
| Storage | TF Card, Supports up to 128GB SDHC |
| Display | 10.1” LCD, 1280 x 800, High Brightness: 500 cd/m2 |
| HDMI | 1 x HDMI 2.0 Out |
| Touch | 10-point capacitive touch screen with 1mm tempered glass |
| USB | 2 x USB 3.0 HOST, 1 x USB Type-C |
| LAN | 1 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| RS232 | default 2 x RS232 (Optional 6 x RS232 at most, including 1 debug port) |
| RS485 | default 2 x RS485 at most |
| CAN | default 2 x CAN FD |
| GPIO | 8 Channels Isolated IO, 4 x Input and 4 x Output |
| WiFi/BT | Integrated WiFi/BT Module |
| 4G/LTE | Supported, Optional |
| Power Input | From 15V to 30V (supports optional 24V ignition signal) |
| Current | 700mA max at 15V, 400mA typical at 15V |
| Power Consumption | 10.5W max, 6W typical |
| Working Temperature | From -20°C to +70°C |
| OS | Debian11, Buildroot Linux Qt 5.15 |
| Dimensions | PPC-A76-101 (PN: CS12800-RK3588-101P): 275.5 x 193.5 x 46.0mm |
| Weight | PPC-A76-101 (PN: CS12800-RK3588-101P): 1300g |
| Mounting | PPC-A76-101 (PN: CS12800-RK3588-101P): Panel, VESA |
