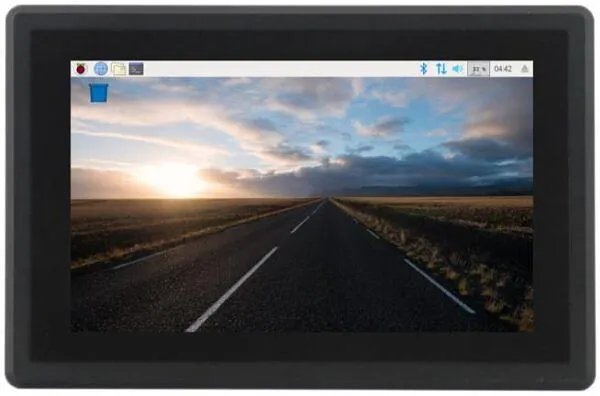

PPC-CM3-070
Part number: CS10600RA070P
The PPC-CM3-070 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM3, CM3 Lite; Raspberry Pi® CM3+, CM3+ Lite; 1.2GHZ, it combines 1GB DDR with 2 TF Cards slots. The configuration includes 7.0” IPS LCD, 1024 x 600 resolution px, brightness 500 cd/m2 and 5-point capacitive touch. It supports Debian. 1 x Channel 100M LAN helps connect the unit to the wider system.
ProcessorRaspberry Pi® CM3, CM3 Lite; Raspberry Pi® CM3+, CM3+ Lite; 1.2GHZ
Display7.0” IPS LCD, 1024 x 600 resolution px, brightness 500 cd/m2
Touch5-point capacitive touch
Memory1GB DDR
Storage2 TF Cards slots
Operating systemDebian
Full specification

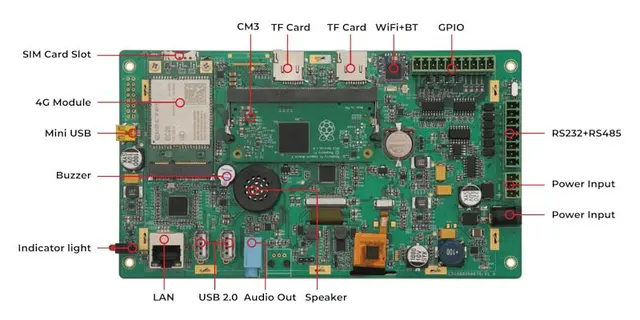

Technical details
| CPU | Raspberry Pi® CM3, CM3 Lite; Raspberry Pi® CM3+, CM3+ Lite; 1.2GHZ |
|---|---|
| Storage | 2 TF Cards slots |
| RAM | 1GB DDR |
| eMMC | 8GB |
| Display | 7.0” IPS LCD, 1024 x 600 resolution px, brightness 500 cd/m2 |
| Touch | 5-point capacitive touch |
| USB | 2 x USB 2.0 Host |
| LAN | 1 x Channel 100M LAN |
| Audio | 3.5mm Audio Out Connector, 2W Speaker Internal |
| Buzzer | Yes |
| RTC | Yes, High Accuracy RTC with Lithium Button Coin battery (lithium battery not included) |
| RS232 | 2 x RS232 |
| RS485 | 1 x RS485 |
| GPIO | 8 Channels, 4 Input, 4 Output |
| WiFi/BT | Onboard WiFi/BT |
| HDMI | 1 Channel |
| SATA II | 1 Channel |
| 3G/4G/LTE | Supported, not mounted by default |
| Camera | Yes, not mounted by default |
| Power Input | From 6V to 36V |
| Current at 12V | 700mA Max |
| Power Consumption | 8.4W Typical |
| Working Temperature | From -20°C to +70°C |
| OS | Debian |
| Dimensions | CS10600RA070E: 190 x 107.8 x 27.7mm; CS10600RA070P: 206 x 135 x 30.1mm |
| Weight | CS10600RA070E: 400g; CS10600RA070P: 700g |
