PPC-CM3-101

Raspberry Pi Industrial PCs

PPC-CM3-101

Part number: CS12800RA101P

The PPC-CM3-101 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM3, CM3 Lite; Raspberry Pi® CM3+, CM3+ Lite; 1.2GHZ, it combines 1GB DDR with 2 TF Cards slots. The configuration includes 10.1” IPS LCD, 1280 x 800 resolution px, brightness 500 cd/m2 and 5-point capacitive touch. It supports Debian. 1 x Channel 100M LAN helps connect the unit to the wider system.

ProcessorRaspberry Pi® CM3, CM3 Lite; Raspberry Pi® CM3+, CM3+ Lite; 1.2GHZ
Display10.1” IPS LCD, 1280 x 800 resolution px, brightness 500 cd/m2
Touch5-point capacitive touch
Memory1GB DDR
Storage2 TF Cards slots
Operating systemDebian
Request project quoteTechnical docs

Full specification

Technical details

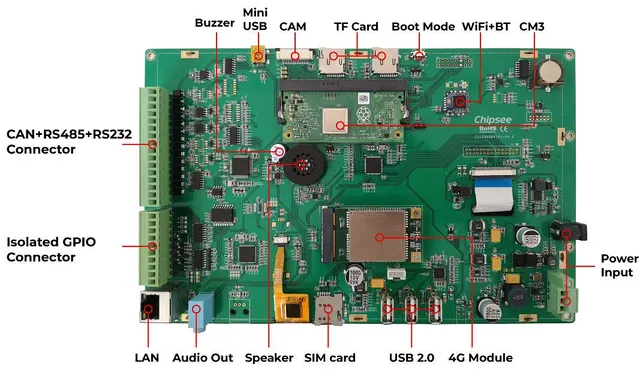

CPURaspberry Pi® CM3, CM3 Lite; Raspberry Pi® CM3+, CM3+ Lite; 1.2GHZ
Storage2 TF Cards slots
RAM1GB DDR
eMMC8GB
Display10.1” IPS LCD, 1280 x 800 resolution px, brightness 500 cd/m2
Touch5-point capacitive touch

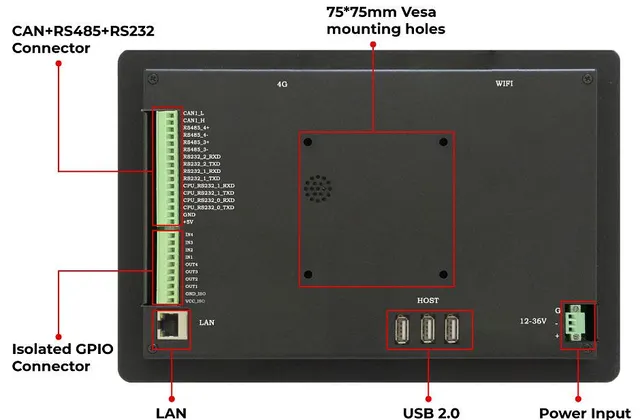

USB3 x USB 2.0 Host
LAN1 x Channel 100M LAN
Audio3.5mm Audio Out Connector, 2W Speaker Internal
BuzzerYes
RTCYes, High Accuracy RTC with Lithium Button Coin battery (lithium battery not included)
RS2324 x RS232 (1 debug port)
RS4852 x RS485 (Optional 4 x RS485 at most)
CAN1 x CAN
GPIO8 Channels, 4 Input, 4 Output
WiFi/BTOnboard WiFi/BT
HDMI1 Channel
SATA II1 Channel
3G/4G/LTESupported, not mounted by default
CameraYes, not mounted by default
Power InputFrom 6V to 36V
Current at 12V700mA Max
Power Consumption7W Typical
Working TemperatureFrom -20°C to +70°C
OSDebian
DimensionsCS12800RA101E: 245 x 155 x 11mm; CS12800RA101P: 280 x 185 x 27.5mm
WeightCS12800RA101E: 600g; CS12800RA101P: 1500g
