PPC-CM4-070-D

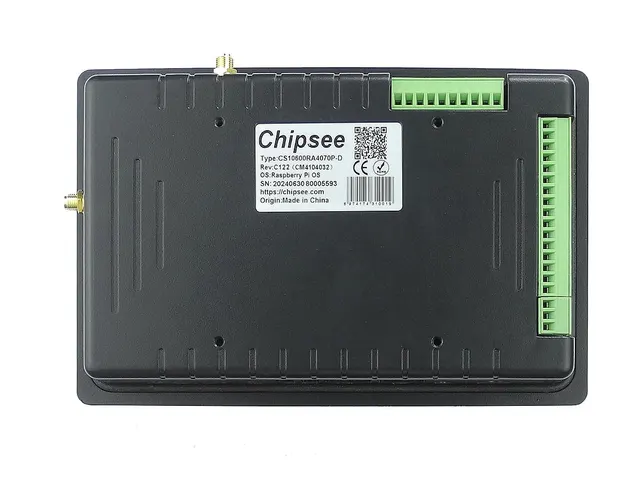

Part number: CS10600RA4070P-D
The PPC-CM4-070-D is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz, it combines 2/4/8 GB, Based on CM4 with Support for 1 x TF Card. The configuration includes 7” IPS LCD, 1024 x 600 resolution px, brightness 400 cd/m2 and 5-point capacitive touch with 1mm tempered glass. It supports Raspberry Pi OS. 2 x Giga LAN (optional PoE support for LAN0) helps connect the unit to the wider system.
ProcessorRaspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz
Display7” IPS LCD, 1024 x 600 resolution px, brightness 400 cd/m2
Touch5-point capacitive touch with 1mm tempered glass
Memory2/4/8 GB, Based on CM4
StorageSupport for 1 x TF Card
Operating systemRaspberry Pi OS
Full specification
Technical details
| CPU | Raspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz |
|---|---|
| Storage | Support for 1 x TF Card |
| RAM | 2/4/8 GB, Based on CM4 |
| eMMC | 16/32 GB, Based on CM4 |

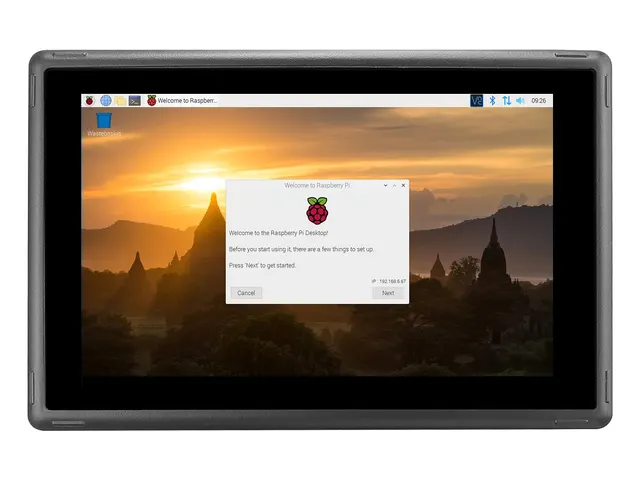

| Display | 7” IPS LCD, 1024 x 600 resolution px, brightness 400 cd/m2 |
| Touch | 5-point capacitive touch with 1mm tempered glass |
| USB | 2 x USB 3.0 Host, 1 x USB Type-C OTG |
| LAN | 2 x Giga LAN (optional PoE support for LAN0) |
| Audio | 3.5mm Audio Out Connector, 2W Speaker Internal |
| Buzzer | Onboard Buzzer, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |

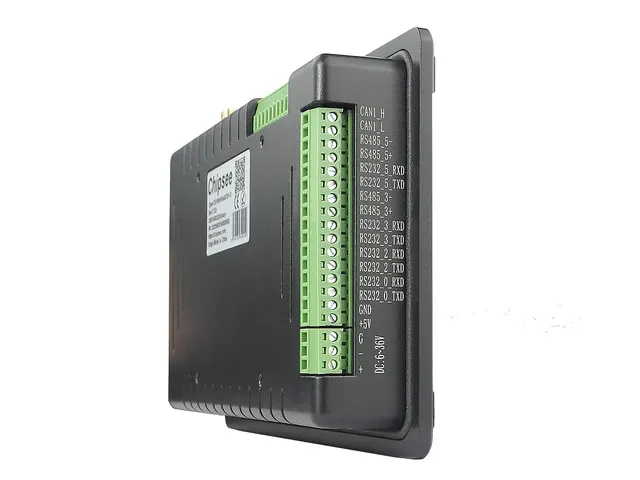

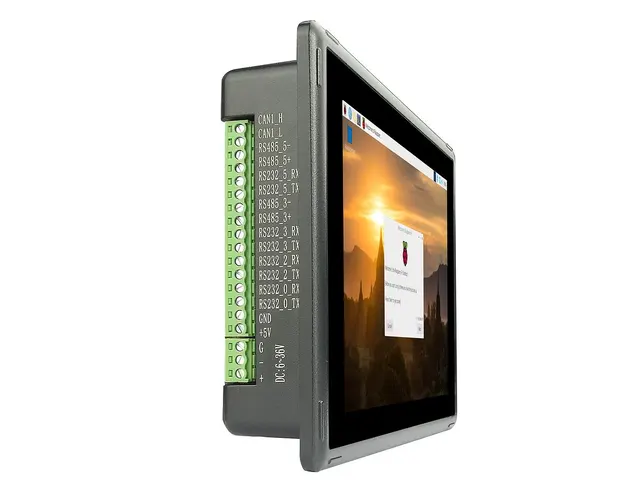

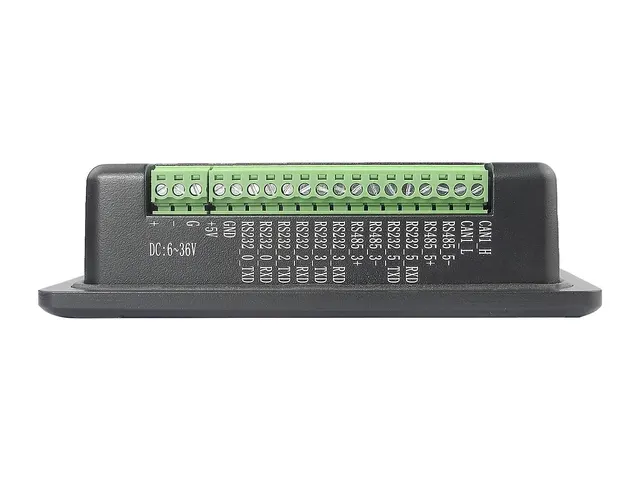

| RS232 | Default to 2 x RS232, up to 4 x RS232 |
| RS485 | Default to 2 x RS485, these 2 x RS485 can be configured as 2 x RS232 |
| CAN | 1 x CAN-BUS |
| GPIO | Option 1: 4 x input, 4 x output from expander IC (optical isolated, DEFAULT). Option 2: 6 x CM4 CPU GPIO (conflict with option 1). |
| I2C | Not Supported |
| WiFi/BT | Supported but depending on the CM4 selected |

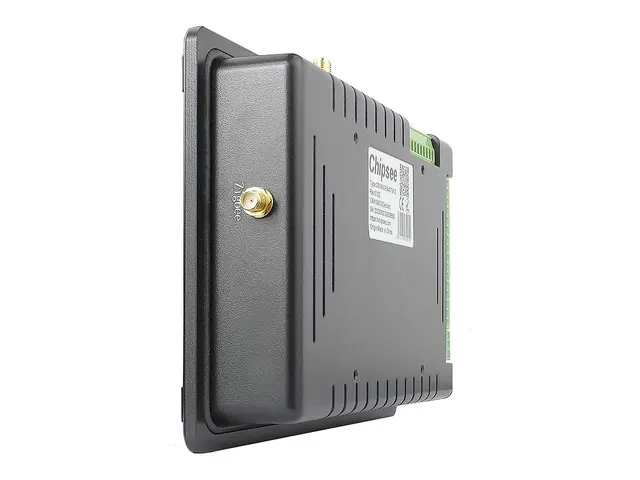

| ZIGBEE | Onboard Zigbee module, not mounted by default |
| HDMI | Yes |
| SATA II | Not Supported |
| 3G/4G/LTE | Supported, not mounted by default |
| Camera | Yes, not mounted by default. Available on the board in the embedded PC. Requires a customized case to be exposed in an enclosed PC. |
| Power Input | From 6V to 36V |
| Current | 700mA (max); 530mA (maximum backlight, idle); 400mA (minimum backlight, idle) at 12V |
| Power Consumption | 8.4W (max); 6.36W (maximum backlight, idle); 4.8W (minimum backlight, idle) |
| Working Temperature | From 0°C to +60°C |
| OS | Raspberry Pi OS |
| Dimensions | 188.05 x 123.11 x 33.20mm |
| Weight | 700g |
| Mounting Method | Panel, VESA |
