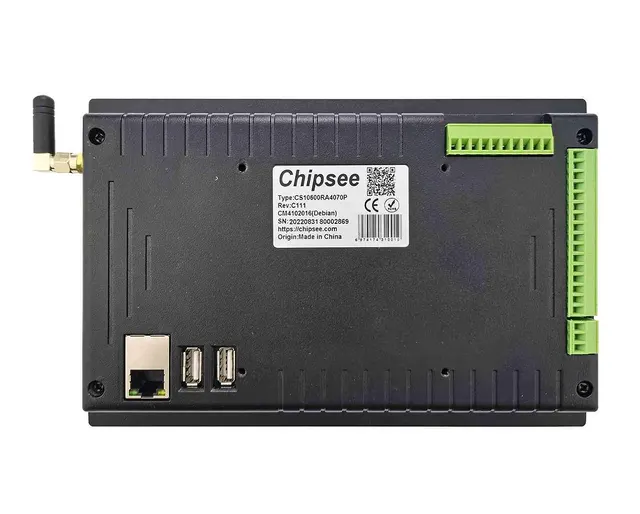

PPC-CM4-070
Part number: CS10600RA4070P
The PPC-CM4-070 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz, it combines 2/4/8 GB, Based on CM4 with Support for 2 x TF Card. The configuration includes 7” IPS LCD, 1024 x 600 resolution px, brightness 500 cd/m2 and 5-point capacitive touch with 1mm tempered glass. It supports Raspberry Pi OS. 1 x Giga LAN helps connect the unit to the wider system.
ProcessorRaspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz
Display7” IPS LCD, 1024 x 600 resolution px, brightness 500 cd/m2
Touch5-point capacitive touch with 1mm tempered glass
Memory2/4/8 GB, Based on CM4
StorageSupport for 2 x TF Card
Operating systemRaspberry Pi OS
Full specification

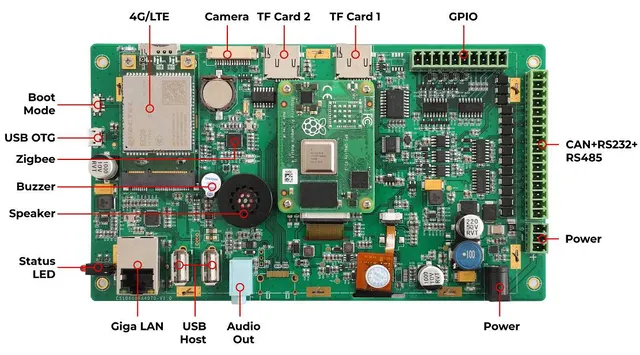

Technical details
| CPU | Raspberry Pi® CM4, CM4 Lite; Quad Cortex-A72 at 1.5GHz |
|---|---|
| Storage | Support for 2 x TF Card |
| RAM | 2/4/8 GB, Based on CM4 |
| eMMC | 16/32 GB, Based on CM4 |

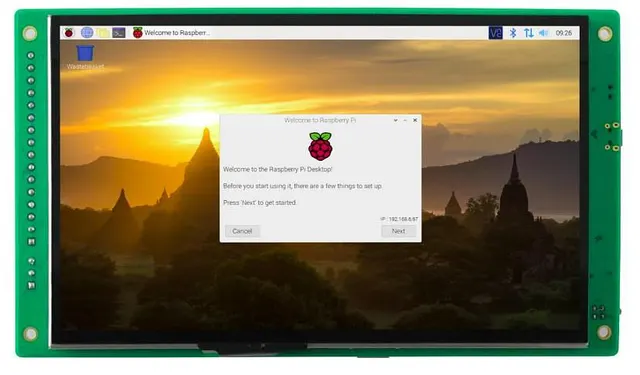

| Display | 7” IPS LCD, 1024 x 600 resolution px, brightness 500 cd/m2 |
| Touch | 5-point capacitive touch with 1mm tempered glass |
| USB | 2 x USB 2.0 Host, 1 x USB OTG |
| LAN | 1 x Giga LAN |
| Audio | 3.5mm Audio Out Connector, 2W Speaker Internal |
| Buzzer | Onboard Buzzer, driven by GPIO |
| RTC | Yes, High Accuracy RTC with Lithium Button Coin battery (lithium battery not included) |
| RS232 | Default to 2 x RS232, up to 4 x RS232 |
| RS485 | Default to 2 x RS485, these 2 x RS485 can be configured as 2 x RS232 |
| CAN | 1 x CAN-BUS |
| GPIO | 8 Channels, 4 Input, 4 Output |
| I2C | Not Supported |
| WiFi/BT | Supported but depending on the CM4 selected |
| ZIGBEE | Onboard Zigbee module, not mounted by default |
| HDMI | Yes |
| SATA II | Not Supported |
| 3G/4G/LTE | Supported, not mounted by default |
| Camera | Yes, not mounted by default |
| Power Input | From 6V to 36V |
| Current | 420mA Max at 12V |
| Power Consumption | 5W Typical |
| Working Temperature | From 0°C to +60°C |
| OS | Raspberry Pi OS |
| Dimensions | CS10600RA4070E: 190 × 107.8 × 27.7 mm; CS10600RA4070P: 206 x 135 x 30mm |
| Weight | CS10600RA4070E: 400g; CS10600RA4070P: 700g |
| Mounting Method | CS10600RA4070P: Panel, VESA; CS10600RA4070E: Embedded |
