PPC-CM4-101
Part number: CS12800RA4101P
The PPC-CM4-101 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM4; Quad Cortex-A72 at 1.5GHz, it combines 2/4/8 GB, Based on CM4 with Support for 1 x TF Card. The configuration includes 10.1” IPS LCD, 1280 x 800 resolution, brightness 500 cd/m2 and 10-point capacitive touch with 1mm tempered glass. It supports Raspberry Pi OS. 1 x Giga LAN helps connect the unit to the wider system.
ProcessorRaspberry Pi® CM4; Quad Cortex-A72 at 1.5GHz
Display10.1” IPS LCD, 1280 x 800 resolution, brightness 500 cd/m2
Touch10-point capacitive touch with 1mm tempered glass
Memory2/4/8 GB, Based on CM4
StorageSupport for 1 x TF Card
Operating systemRaspberry Pi OS
Full specification
Technical details

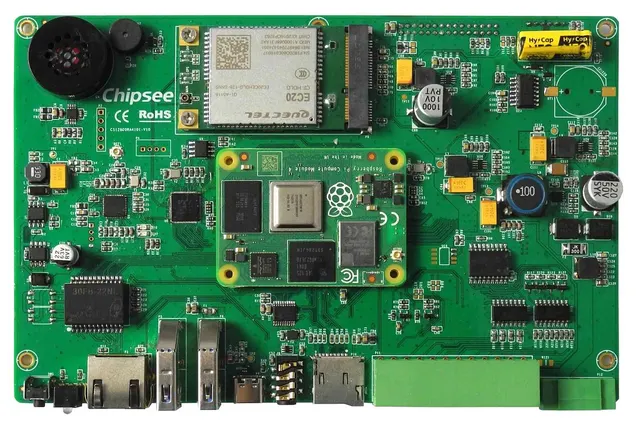

| CPU | Raspberry Pi® CM4; Quad Cortex-A72 at 1.5GHz |
|---|---|
| Storage | Support for 1 x TF Card |
| RAM | 2/4/8 GB, Based on CM4 |
| eMMC | 16/32 GB, Based on CM4 |

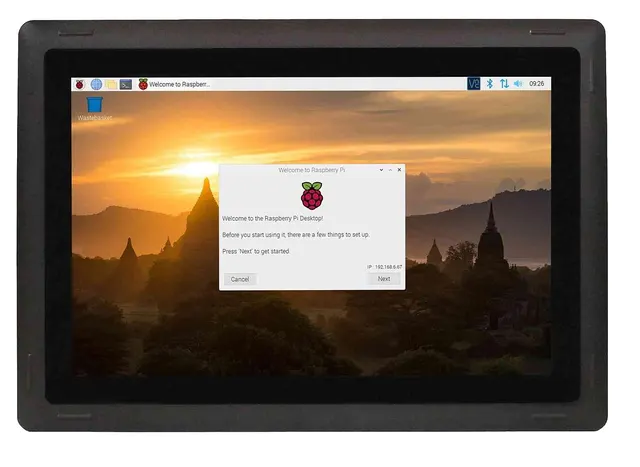

| Display | 10.1” IPS LCD, 1280 x 800 resolution, brightness 500 cd/m2 |
| Touch | 10-point capacitive touch with 1mm tempered glass |

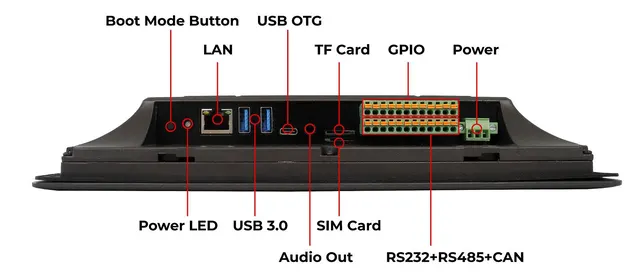

| USB | 2 x USB 3.0 Host, 1 x USB OTG |
| LAN | 1 x Giga LAN |
| Audio | 3.5mm Audio Out Connector, 2W Speaker Internal |
| Buzzer | Onboard Buzzer, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| RS232 | Default to 2 x RS232, up to 4 x RS232 |
| RS485 | Default to 2 x RS485, these 2 x RS485 can be configured as 2 x RS232 |
| CAN | 1 x CAN-BUS |
| GPIO | 8 Channels, 4 Input, 4 Output |
| I2C | Not Supported |
| WiFi/BT | Supported but depending on the CM4 selected |
| ZIGBEE | Onboard Zigbee module, not mounted by default |
| HDMI | Not Supported |
| SATA II | Not Supported |
| 3G/4G/LTE | Supported, not mounted by default |
| Camera | No |
| Power Input | From 12V to 36V |
| Current | 800mA Max at 12V |
| Power Consumption | 9.6W Typical |
| Working Temperature | From 0°C to +60°C |
| OS | Raspberry Pi OS |
| Dimensions | 275.5 x 193.5 x 46.0mm |
| Weight | 1300g |

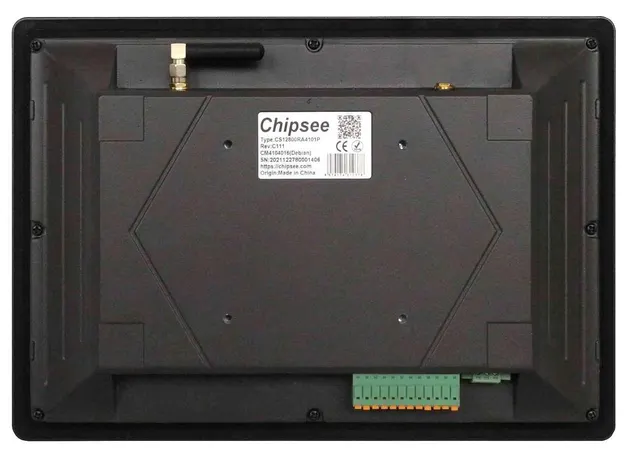

| Mounting Method | CS12800RA4101P: Panel, VESA |
