PPC-CM4-190
Part number: CS12102RA4190

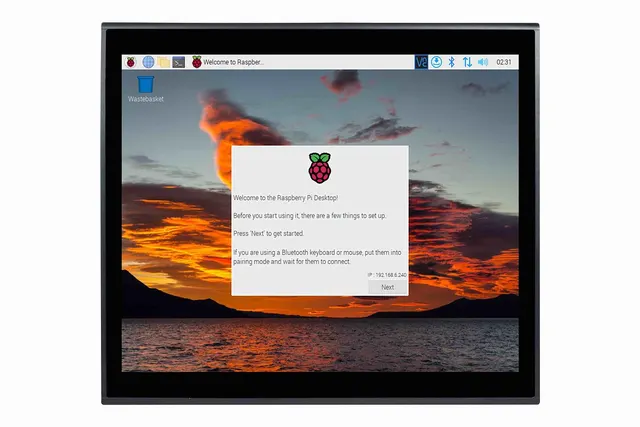

The PPC-CM4-190 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM4; Quad Cortex-A72 at 1.5GHz, it combines 2/4/8 GB, Based on CM4 with Support for 1 x TF Card. The configuration includes 19.0” IPS LCD, 1280 x 1024 resolution, brightness 370 cd/m2 and 10-point capacitive touch with 2mm tempered glass. It supports Raspberry Pi OS. 1 x Giga LAN helps connect the unit to the wider system.
ProcessorRaspberry Pi® CM4; Quad Cortex-A72 at 1.5GHz
Display19.0” IPS LCD, 1280 x 1024 resolution, brightness 370 cd/m2
Touch10-point capacitive touch with 2mm tempered glass
Memory2/4/8 GB, Based on CM4
StorageSupport for 1 x TF Card
Operating systemRaspberry Pi OS
Full specification
Technical details
| CPU | Raspberry Pi® CM4; Quad Cortex-A72 at 1.5GHz |
|---|---|
| Storage | Support for 1 x TF Card |
| RAM | 2/4/8 GB, Based on CM4 |
| eMMC | 16/32 GB, Based on CM4 |
| Display | 19.0” IPS LCD, 1280 x 1024 resolution, brightness 370 cd/m2 |
| Touch | 10-point capacitive touch with 2mm tempered glass |
| USB | 2 x USB 3.0 Host, 1 x USB OTG |
| LAN | 1 x Giga LAN |
| Audio | 3.5mm Audio Out Connector, 2W Speaker Internal |
| Buzzer | Onboard Buzzer, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |
| RS232 | Default to 2 x RS232, up to 4 x RS232 |
| RS485 | Default to 2 x RS485, these 2 x RS485 can be configured as 2 x RS232 |
| CAN | 1 x CAN-BUS |
| GPIO | 8 Channels, 4 Input, 4 Output |
| I2C | Not Supported |
| WiFi/BT | Supported but depending on the CM4 selected |
| ZIGBEE | Onboard Zigbee module, not mounted by default |
| HDMI | Not Supported |
| SATA II | Not Supported |
| 3G/4G/LTE | Supported, not mounted by default |
| Camera | No |
| Power Input | From 12V to 36V |
| Current | 1.47A(12V, typical), 1.68A(12V, max) |
| Power Consumption | 20.16W(max) |
| Working Temperature | From 0°C to +50°C |
| OS | Raspberry Pi OS |
| Dimensions | 435 x 363 x 53.5mm |
| Weight | 5.4kg |
| Mounting Method | CS12102RA4190P: Panel, VESA |
