PPC-CM5-050
Part number: CS12720RA5050P
The PPC-CM5-050 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Raspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz, it combines 2GB, 4GB, or 8GB SDRAM based on CM5 with Support for 1 x TF Card. The configuration includes 5.0” IPS LCD, 1280 x 720 px, brightness 400 cd/m2 and 5-point capacitive touch screen with 1mm tempered glass. It supports Raspberry Pi OS. 1 x Giga LAN helps connect the unit to the wider system.
ProcessorRaspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz
Display5.0” IPS LCD, 1280 x 720 px, brightness 400 cd/m2
Touch5-point capacitive touch screen with 1mm tempered glass
Memory2GB, 4GB, or 8GB SDRAM based on CM5
StorageSupport for 1 x TF Card
Operating systemRaspberry Pi OS
Full specification
Technical details
| CPU | Raspberry Pi® CM5/CM5Lite; BCM2712 Quad(4) Core Cortex-A76 at 2.4GHz |
|---|---|
| RAM | 2GB, 4GB, or 8GB SDRAM based on CM5 |
| eMMC | 0GB, 16GB, 32GB, or 64GB based on CM5 |

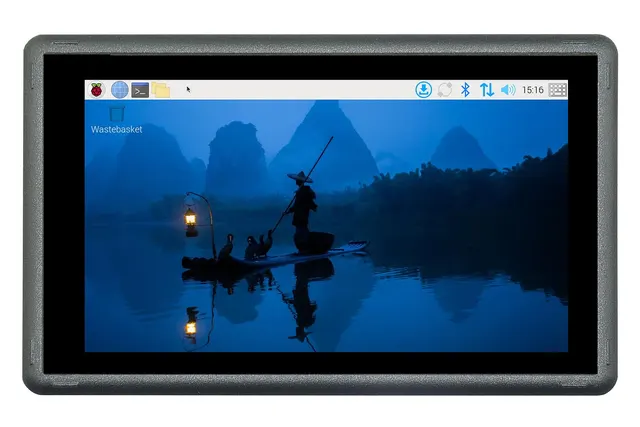

| Display | 5.0” IPS LCD, 1280 x 720 px, brightness 400 cd/m2 |
| Touch | 5-point capacitive touch screen with 1mm tempered glass |
| Storage | Support for 1 x TF Card |
| PCIe | Not Supported (optional) |

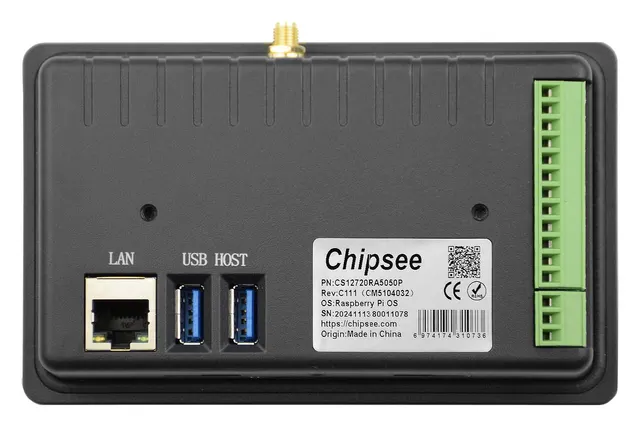

| USB | 2 x USB 3.0 type-A Host, 1 x USB type-C |
| LAN | 1 x Giga LAN |
| Audio | 3.5mm Audio Out Connector, 2W Speaker Internal |
| Buzzer | Onboard Buzzer, driven by GPIO |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |

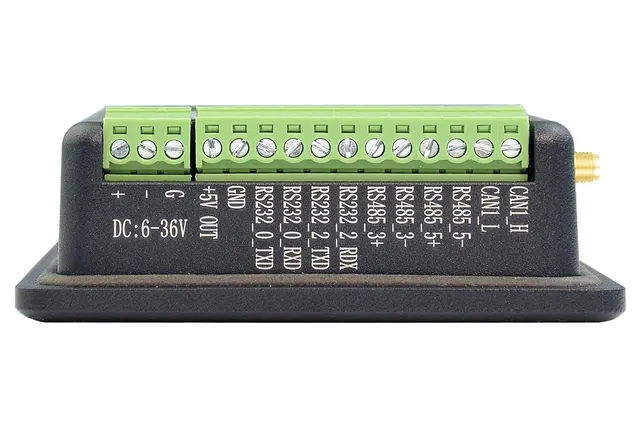

| RS232 | Default to 2 x RS232, up to 4 x RS232 |
| RS485 | Default to 2 x RS485, these 2 x RS485 can be configured as 2 x RS232 |
| CAN | 1 x CAN FD BUS, Arbitration Bit Rate up to 1Mbps, Data Bit Rate up to 8Mbps |
| GPIO | Not Supported |
| I2C | Not Supported |
| WiFi/BT | Optional (Depends on CM5) |
| ZIGBEE | No |

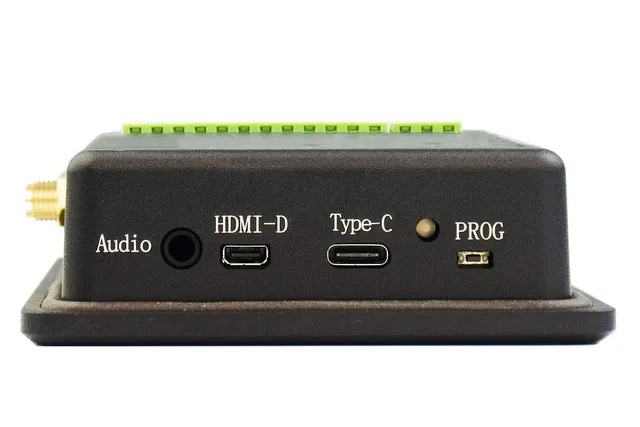

| HDMI | 1 x HDMI-D(Micro HDMI) 2.0, can be driven up to 4K 60FPS |
| 3G/4G/LTE | Not Supported |
| Camera | Yes, not mounted by default. Available on the board in the embedded PC. Requires a customized case to be exposed in an enclosed PC. |
| Power Input | 9V to 30V |
| Current | 800mA max at 12V, 500mA typical at 12V |
| Power Consumption | 9.6W max, 6W typical |
| Working Temperature | From -20°C to +60°C |
| OS | Raspberry Pi OS |
| Dimensions | 138.55 x 84.70 x 27.10mm |
| Weight | 310g |
| Mounting Method | Panel, VESA |
