PPC-RK3576-070

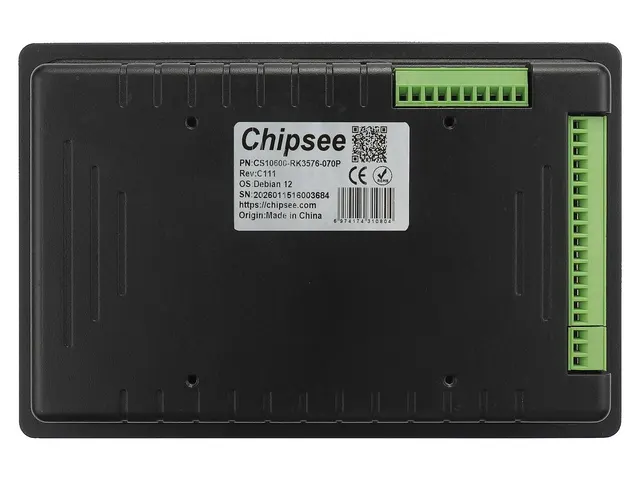

Part number: CS10600-RK3576-070P
The PPC-RK3576-070 is a Chipsee industrial panel PC for industrial HMI, control and connected edge applications. Built around Rockchip RK3576J, Quad-core Cortex-A72 (1.6GHz) + Quad-core Cortex-A53 (1.4GHz), it combines 4GB LPDDR5 with TF Card, Supports up to 128GB SDHC. The configuration includes 7” LCD, 1024 x 600, High Brightness: 400 cd/m2 and 5-point capacitive touch screen with 1mm tempered glass. It supports Android 14, Debian12, Buildroot Linux Qt 5.15, Ubuntu 22.04. 2 x RJ45, GbE helps connect the unit to the wider system.
ProcessorRockchip RK3576J, Quad-core Cortex-A72 (1.6GHz) + Quad-core Cortex-A53 (1.4GHz)
Display7” LCD, 1024 x 600, High Brightness: 400 cd/m2
Touch5-point capacitive touch screen with 1mm tempered glass
Memory4GB LPDDR5
StorageTF Card, Supports up to 128GB SDHC
Operating systemAndroid 14, Debian12, Buildroot Linux Qt 5.15, Ubuntu 22.04
Full specification
Technical details
| CPU | Rockchip RK3576J, Quad-core Cortex-A72 (1.6GHz) + Quad-core Cortex-A53 (1.4GHz) |
|---|---|
| GPU | ARM Mali G52 MC3, supports OpenGL ES 1.1, 2.0 and 3.2, OpenCL 2.1, Vulkan 1.2, up to 4K 60fps video encoding, up to 4K 120fps video decoding |
| RAM | 4GB LPDDR5 |
| NPU | 6 TOPS(Sparsity)@INT8 |
| eMMC | 64GB |
| Storage | TF Card, Supports up to 128GB SDHC |
| PCIe | Optional, supports M.2 M-Key 2230/2240 (PCI-E 3.0 x1) module (4G/LTE Mini PCIe cannot be used with M.2 PCIe at the same time) |
| Display | 7” LCD, 1024 x 600, High Brightness: 400 cd/m2 |
| Touch | 5-point capacitive touch screen with 1mm tempered glass |
| HDMI | 1 x HDMI-D (Micro-HDMI) Out |
| USB | 1 x USB 2.0 HOST, 1 x USB 3.0 HOST, 1 x USB Type-C (USB3.0 port and USB-C port cannot be used at the same time) |
| LAN | 2 x RJ45, GbE |
| Audio | 3.5mm Audio In/Out Connector, 2W Internal Speaker |
| Buzzer | Yes |
| RTC | High accuracy RTC with farad capacitor, can work 1 week after power off (default). High accuracy RTC with lithium coin battery, can work 3 years after power off (optional). |

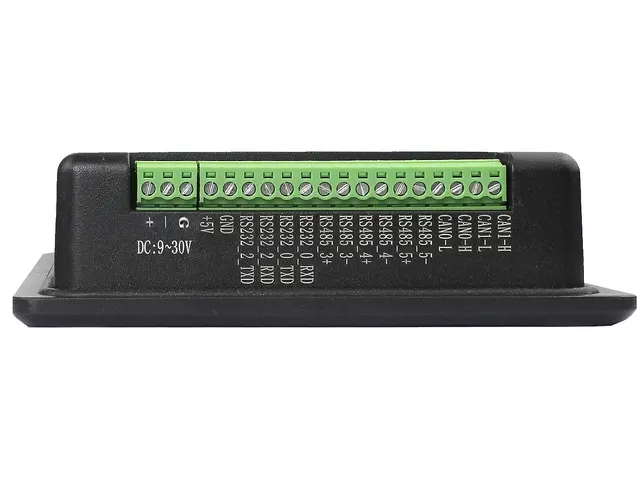

| RS232 | Default to 2 x RS232 (including 1 debug port). Up to 6 x RS232 by swapping 3 x RS485 + CAN1 to 4 x RS232. |
| RS485 | Default to 3 x RS485. Optionally, these 3 x RS485 can be configured to RS232. |
| CAN | Default to 2 x CAN FD. Optionally, 1 x CAN(CAN1) can be configured to RS232. |
| GPIO | 8 Channels Isolated IO, 4 x Input and 4 x Output |
| WiFi/BT | Integrated WiFi/Bluetooth Module |
| 4G/LTE | Supported, Optional (4G/LTE Mini PCIe cannot be used with M.2 PCIe at the same time) |
| Power Input | From 9V to 30V (supports optional 24V ignition signal) |
| Current | 550mA Max at 15V |
| Power Consumption | 8.25W Max |
| Working Temperature | From -10°C to +60°C |
| OS | Android 14, Debian12, Buildroot Linux Qt 5.15, Ubuntu 22.04 |
| Dimensions | PPC-RK3576-070 (PN: CS10600-RK3576-070P): 188.05 x 123.11 x 33.20mm |
| Weight | PPC-RK3576-070 (PN: CS10600-RK3576-070P): 610g |
| Mounting | PPC-RK3576-070 (PN: CS10600-RK3576-070P): Panel, VESA |
